Shandong Mountain Raise Heavy Industry Machinery Co Ltd

New Excavator Loader WZ388 Backhoe Loader With Price

Payment Terms: TT or LC

Ref Price : USD34400-35000

Supply Capability : 50SET/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

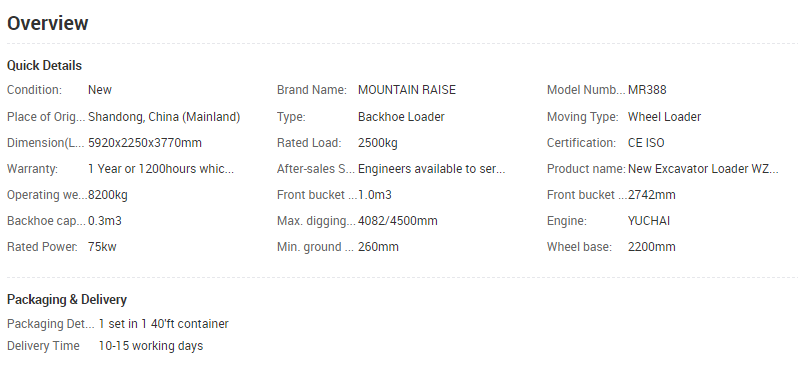

Qulck Details

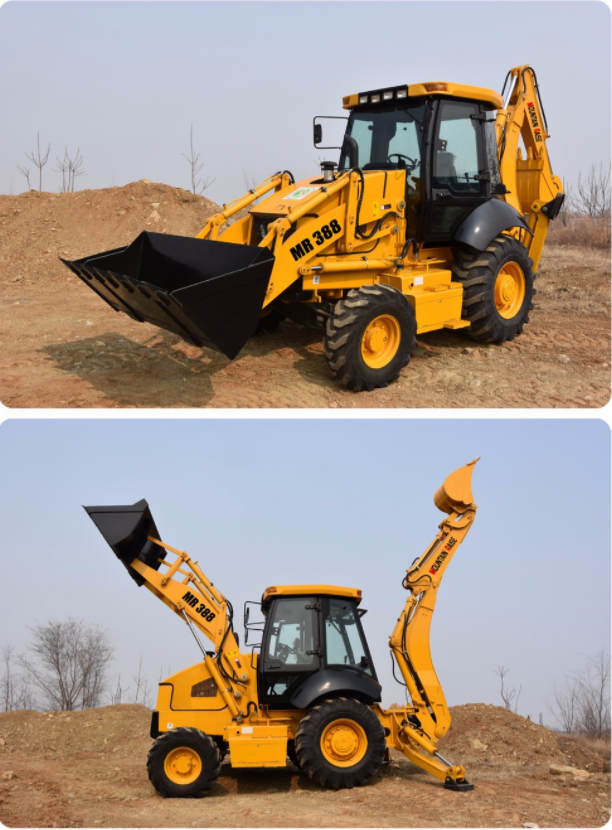

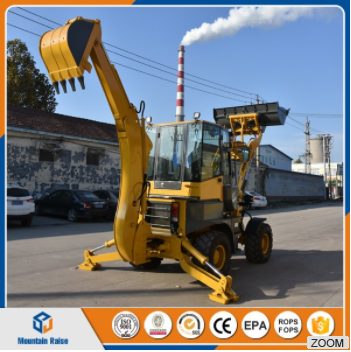

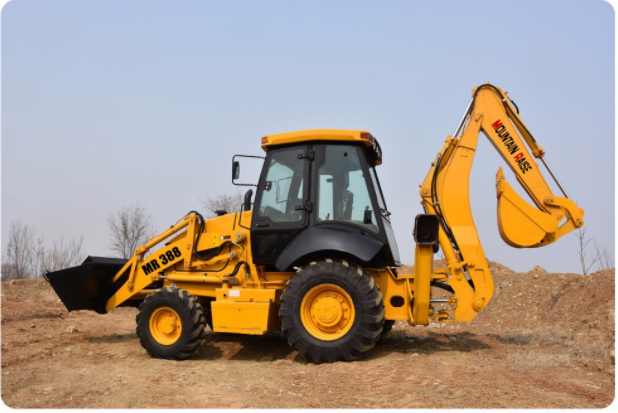

New Excavator Loader WZ388 Backhoe Loader With Price .

Product Description

Main Feature

- The machine is of compact structure and logical layout. With beautiful apearance and design of

components embody hommization adequately.

- The performance has achieved advanced level in China. Using domestic famous brand hydraulic

system and imported transmission system for loader.

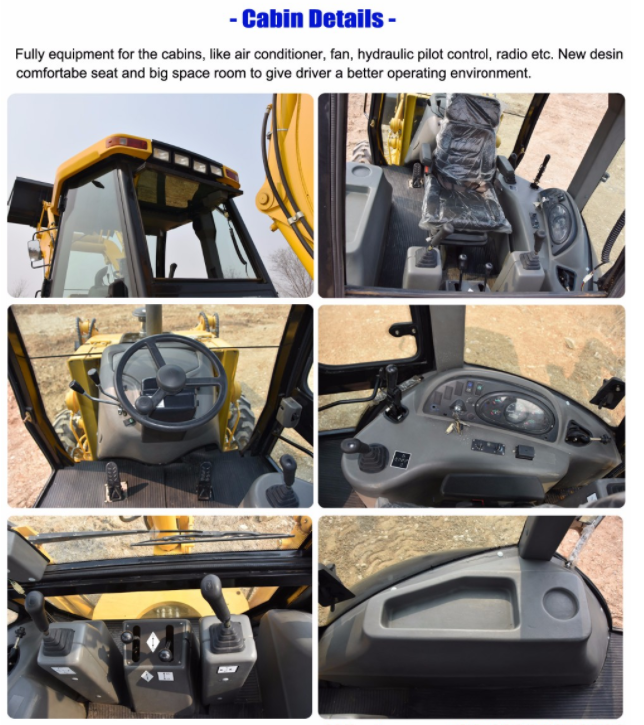

- The professional designed operation system as well as reasonable layout realies comfortable,

convenient and labor-saving operation, the steering axle with big swing angle and steering angle.

- It can be fixed with many accessories according to requirements!



Main Parameters Operating weight 8200kg
Dimension(L*W*H)  5920x2250x3770mm
Wheel Base  2200mm
Bucket capacity  1.0m3
Breakout force 38kN
Loading Lifting Capacity 2500kg
Bucket Dumping Height 2742mm
Bucket Dumping Diatance 925mm
Front Digging Depth 52mm
Backhoe Capacity 0.3m3
Max.digging depth 4082/4500mm
Swing Angle of Excavator 190°
Max.pulling force 39kN
Engine Model YUCHAI; YC105Z-T20
Type In line Diect injection four-stroke and injection combustion chamber
Rated Power 75kw
Rated Speed 2400r/min
Max. Torque ≥252N.M
Displacement 4.4L
Steering System Model of steering system BZZ5-250
Steering Agle ±36°
Min. turning radius 6581mm
Pressure of the system 12MPa
Transmission system Torque converter
Torque converter model YJ280/TLB1-4WD
Type  Single-stage ,three elements
Cooling Method Oil-cooling pressure circulation
Gearbox
Type Fied shaft power transmission
Oil Pressure of Clutch 1373KPa-1569KPa
Max. Speed  28/38 km/h
Gears F2/R2;F4/R4
Axle Manufacturer Chinese
Hydraulic System Digging Power of Excavator Grab 46.5kN
Digging Power of Dipper 31kN
Brake system Service brake Steam oil caliper disc brake
Emergency brake Caliper disc brake manually
Steering system Model of steering device BZZ5-250

Steering Angle ±33°

Min. turning raduis 6950mm

Pressure of the system 12MPa
Tyres  Front model 14-17.5

Rear model 19.5L-24

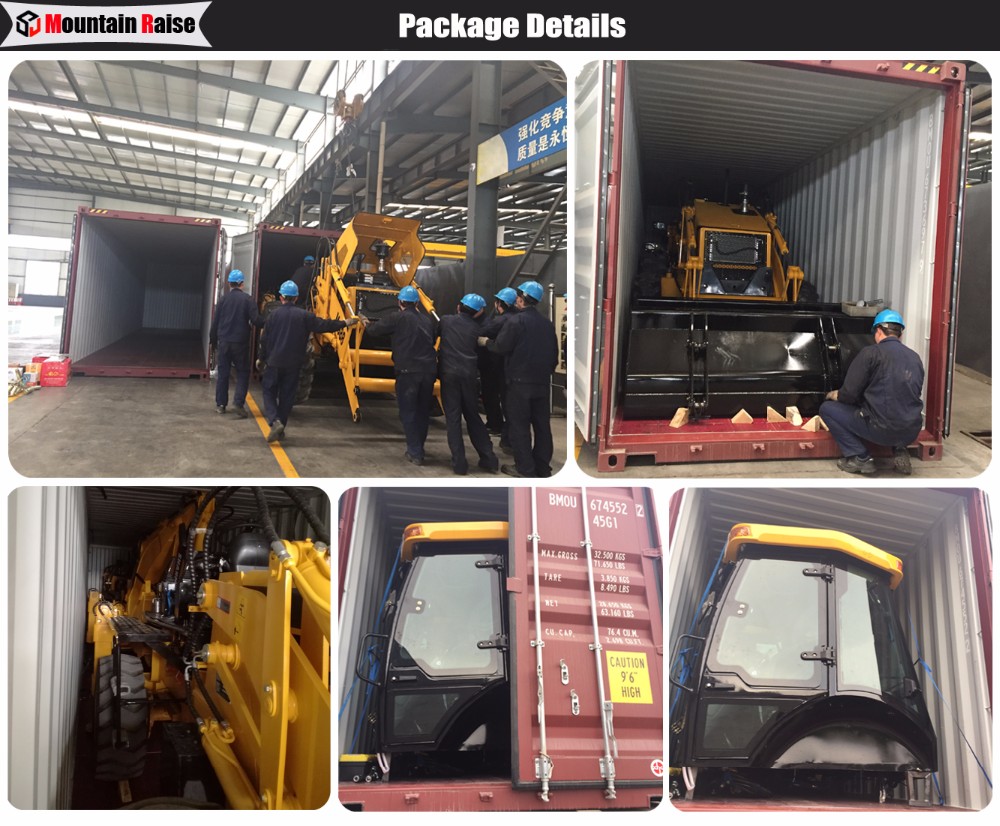

Packaging & Shipping



New Excavator Loader WZ388 Backhoe Loader With Price

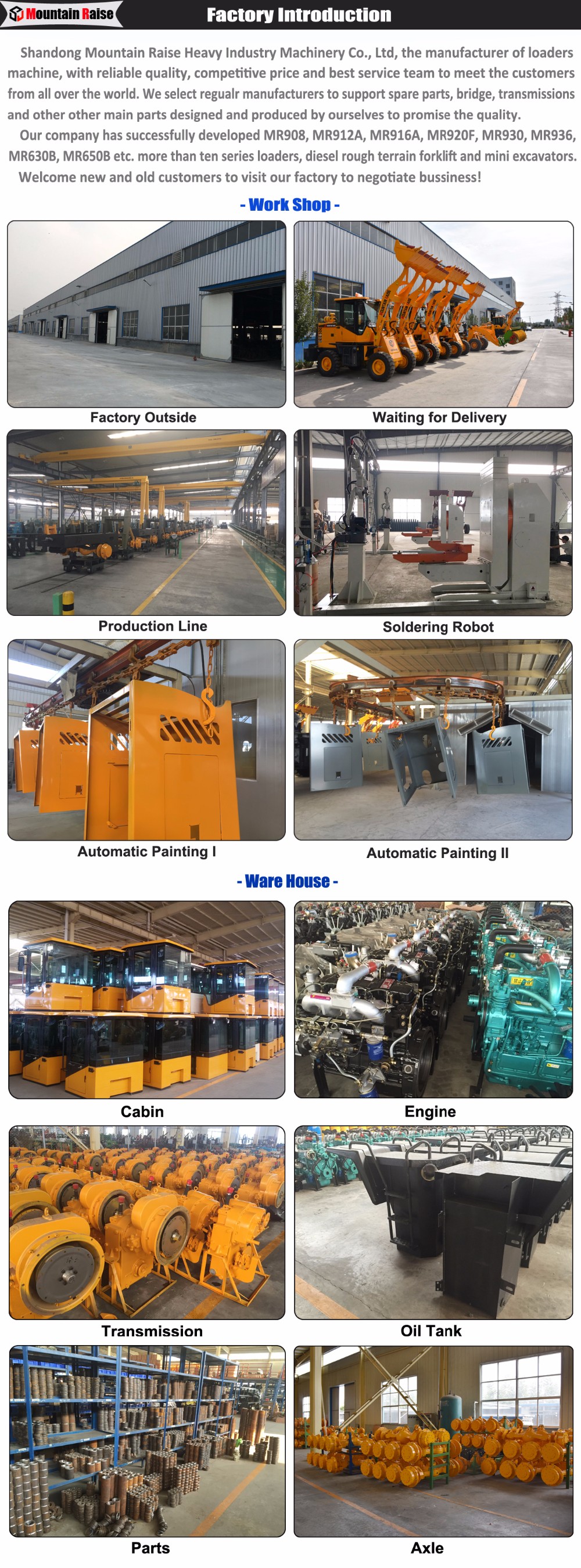

About our factory



New Excavator Loader WZ388 Backhoe Loader With Price



Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years

Production and exporting experience. Now our products can be found working in more than 40 countries.

Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which

passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc

Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as

our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.

We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
