Overview

Quick Details

Place of Origin:Shandong, China (Mainland)

Brand Name:SHANTUI

Model Number:SD22

Condition:New

Moving Type:Crawler Bulldozer

Machine Weight:23.4

Dimension(Long * Breadth * High):5495*3725*3745

After-sales Service Provided:Overseas third-party support available

engine:Cummins NT855-C280S10/weichaiWD12G240E26

gross power(kw/rpm):175/235/1800

net power(kw/rpm):162/220/1800

blade type:straight tilt blade/Ublade/semi-U blade/angle blade

blade size W*H(mm):3725*1315/3800*1343/3725*1374/4365*1055

dozing capacity:6.4/7.5/7.0/4.7

max drop below ground of blade:540/540/540/535

lift height of blade:1210/1210/1210/1290

number of carriers(each side):2

number of track rollers(each side):7

Packaging & Delivery

Packaging Details: The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the buyer's request.

Delivery Time: Within7 days upon receipt of down payment. Special models about

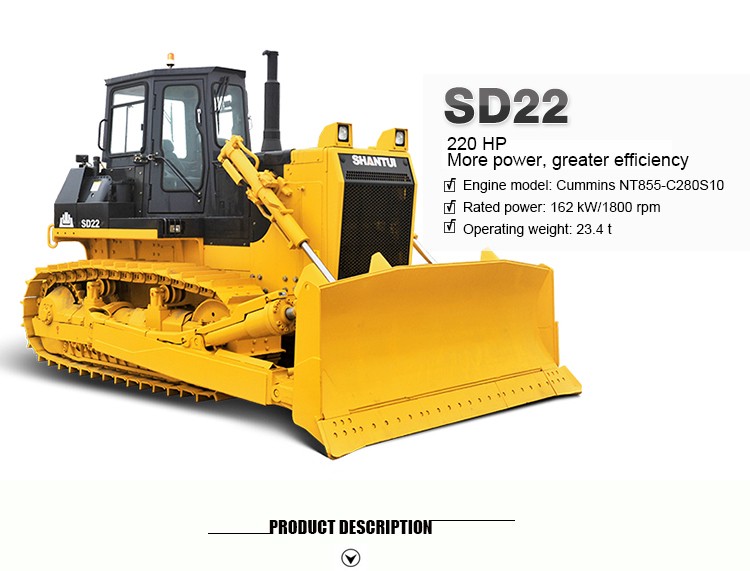

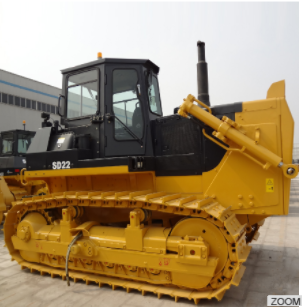

SD22 220HP crawler type r c bulldozer



The SD22 is a large horsepower, advanced technology bulldozer with a Cummins 855C engine delivering high torque yet low fuel consumption. An exhaust turbocharger ensures uninterrupted performance at altitudes up to 3200m. Hydraulic drive and control technology deliver reliable performance and easy control.







Performance Paramete



220 HP SD22  Technical  specifications:	Blade Type	Straight-tilt	Angle	Semi-U Blade
	Min. ground clearance:	405 mm	405 mm	405 mm
	Ground pressure:	0.077 MPa	0.077 MPa	0.078 MPa
	Min. turning radius:	3.3 m	3.3 m	3.3 m
	Gradeability:	30°	30°	30°
	Track gauge:	2000 mm	2000 mm	2000 mm
ENGINE	Model & type	Cummins NT855-C280S10; In-line,  water cooled 4-cycle,  overhead valve direct injection, turbocharged diesel
	Rated power	162 kW
	Number of cylinders	6—139.7 x 152.4 mm (bore x stroke)
	Piston displacement	14.01 L
	Min. fuel consumption	205 g/kW·h
	Maximum torque	1030 N·m@1250rpm
POWER TRANSMISSION  SYSTEM	Torque converter	3-element, 1 stage, 1 phase
	Transmission	Planetary gear, multi-disc clutch,  hydraulically connected, forced lubrication
	Main drive	Spiral bevel gear, splash lubrication,  single-stage speed reduction
	Steering clutch	Wet, multi-disc, spring loaded,  hydraulically separated,hydraulic control
	Steering brake	Wet, floating, direct on-off hydraulic  inter-linking operation
	Final drive	2-stage speed reduction of spur gear,  splash lubrication
TRAVELSPEED	Gear	1st	2nd	3rd
	Forward	0~3.6 km/h	0~6.5 km/h	0~11.2 km/h
	Reverse	0~4.3 km/h	0~7.7 km/h	0~13.2 km/h
UNDERCARRIAGE SYSTEM	Type	Swing type of sprayed beam,  suspended structure of equalizer bar
	Carrier rollers	2 each side
	Track rollers	6 each side
	Track type	Assembled, single-grouser
	Width of track shoes	560 mm
	Pitch	216 mm
HYDRAULIC SYSTEM	Maximum pressure			14 MPa
	Pump type			Gear pump
	Discharge			262 L/min
	Bore of working  cylinder × no.			120 mm × 2
BLADE	Blade type	Straight-tilt	Angle	Semi-U-blade
	Dozing capacity	6.4 m3	4.7 m3	7.5 m3
	Efficiency  (Theoretical value 40 m)	330 m3/h	245 m3/h	365 m3/h
	Blade width	3725 mm	4365 mm	3725 mm
	Blade height	1315 mm	1055 mm	1374 mm
	Maximum drop  below ground	538 mm	535 mm	540 mm
	Maximum tilt adjustment	>735 mm	>500 mm	>755 mm
	Weight of blade	2830 kg	3254 kg	3419 kg
RIPPER(OPTIONAL)	Maximum digging depth  of 3-shank ripper			666 mm
	Maximum lift  above ground			555 mm
	Weight of 3-shank ripper			2495 kg
	Maximum digging depth  of single ripper			695 mm
	Maximum lift  above ground			515 mm
	Weight of single ripper			2453 kg

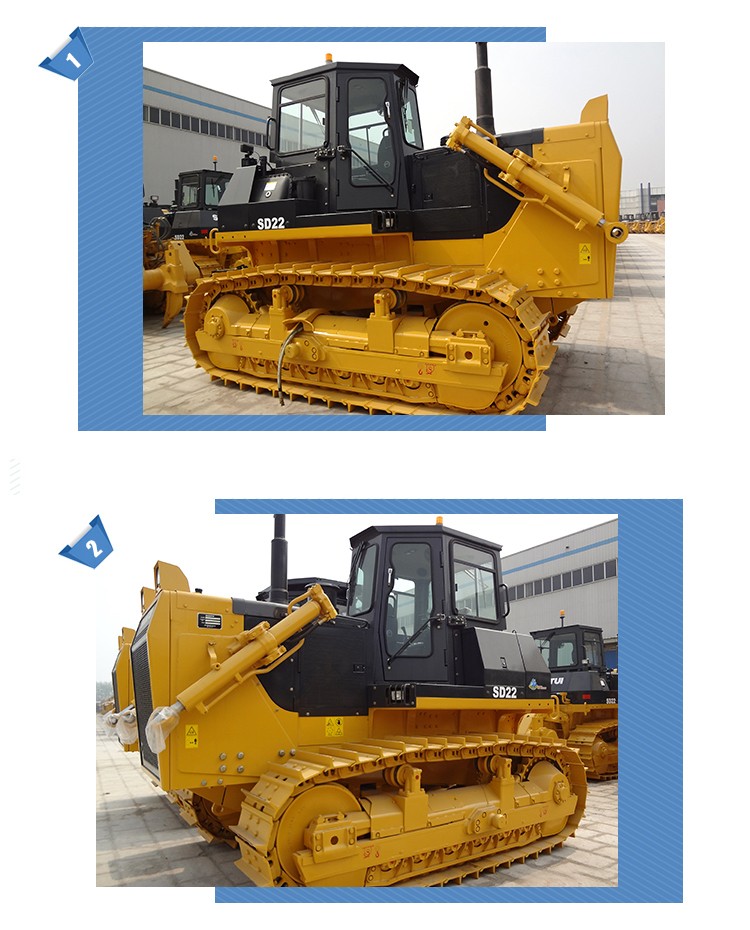

Product Description

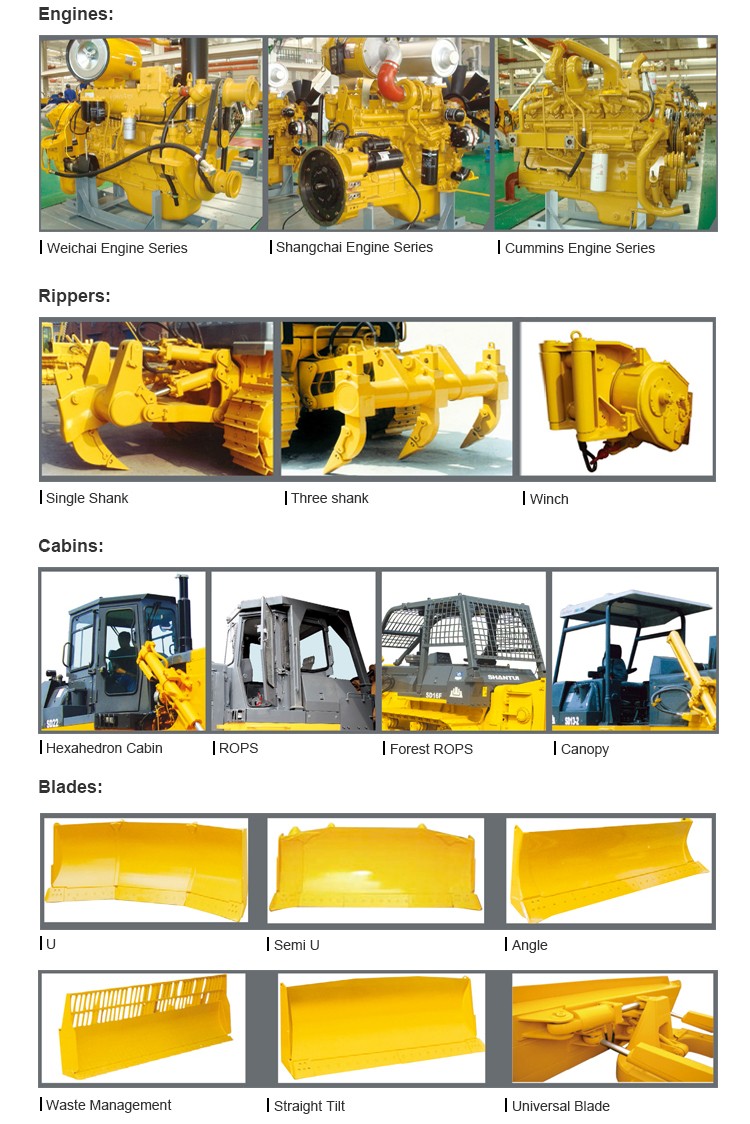

Optaional Equipment

 Shantui's value proposition is greatly enhanced by the fact that we produce our structural parts for our machines,including accessories such as blades,rippers,tract assemblies and cabs.We also offer a variety of excellent engine choice for the bulldozer series.

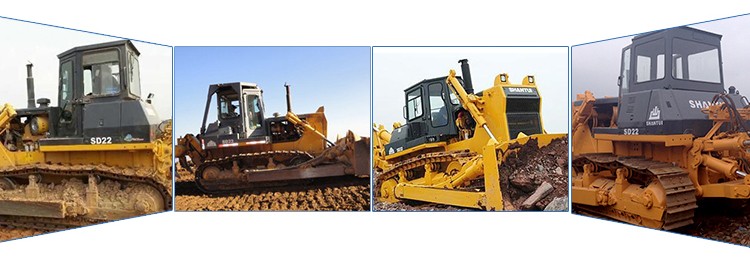

Application



 Pushing,  backfilling and other earthworks.



Payment



T/T  WESTERN UNION  L/C  Trade Assurance

Trade Assurance  which granted by Aliababa.com.

Protect your payment to make sure that we deliver on time and manufacture quality products as

required.

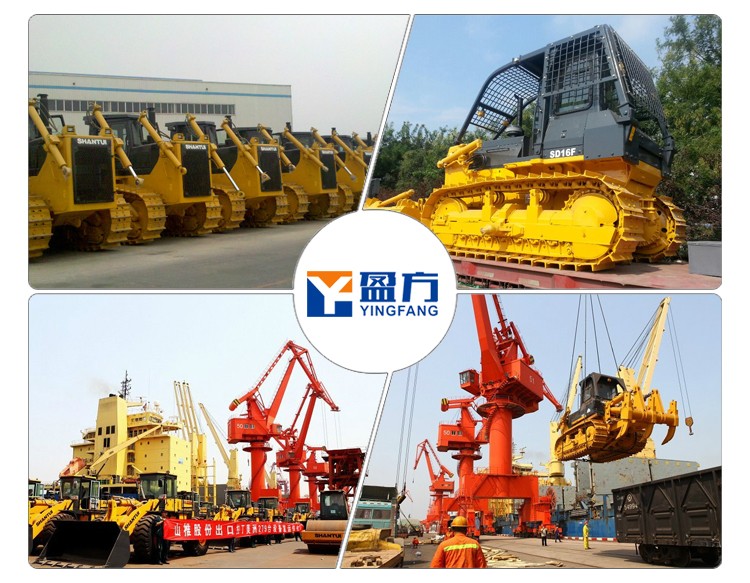

Packaging & Shipping

Packing: The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the

buyer's request.





Delivery: Within7 days upon receipt of down payment. Special models about 30days.



Company Information



Replying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine and related spare parts. Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road paver and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc. By virtue of our superior quality and well-deserved reputation, we won praises at home and abroad and made great contribution to get Chinese machinery out into the world. We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. We aim to make our service famous around the world, to have more opportunity to make friends from worldwide, let’s seize the chance for a better future!
