Jining Infront Construction Machinery Co Ltd

SE60 Best performance crawler excavator price

Payment Terms: TT or LC

Ref Price : USD50000-60000

Supply Capability : 200SET/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

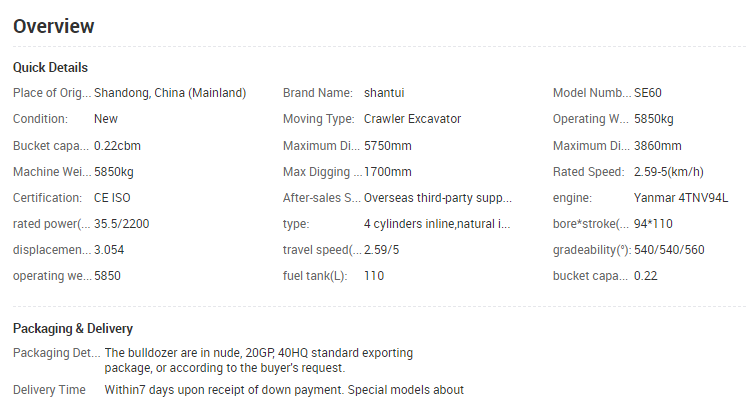

Quick Details







SE60 Best performance crawler excavator price

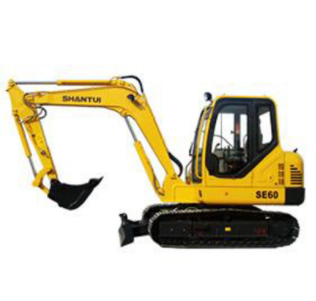

New 6 ton crawler excavator SE60



Original imported engine with Tier 2 emissions, conducive for energy saving and environmental

protection; features radial seal air cleaner and air pre-cleaner, effectively extending engine service life.

Original imported hydraulics, with stable, reliable quality and high work efficiency.

 Strengthened working devices, new type cab and seat, air-con system, wide-field of vision, adding up to a safe and comfortable operating environment.

 Blade and breaking pipe are standard equipment for excavating, landfill, breaking and leveling.

 Multi-function GPS for remote monitoring and two-way data transmission, offers real time operating status.



Technical Features

 New 6 ton crawler excavator SE60New 6 ton crawler excavator SE60

Performance Paramete



SE60
Technical
 specifications:

Minimum ground clearance: 360 mm

Overall length: 5851 mm

Operating weight: 5.85 t

Overall height: 1932 mm

Ground pressure: 33 kPa

Overall width: 1880 mm


ENGINE

Model

YANMAR 4TNV94L-SFN (Tier 2)

Type

4-cylinder in line, natural intake,water-cooled

Quantity of cylinders

4

Bore x stroke

94 x 110 mm

Displacement

3.054 L

Power output

35.5 kW/2200 rpm

Maximum torque

197–214 N·m/900–1100 rpm


HYDRAULIC
SYSTEM

Pump

Imported

Type

Variable double-piston pump

Maximum discharge flow

2 x 60.5 L/min

Boom, arm and bucket

22 MPa

Travel circuit

22 MPa

Swing circuit

21.5 MPa


TRAVEL
SYSTEM

Travel motor

Variable axial piston

Travel brakes

Lubricated double-disc

Parking brake

Pressure release

Travel shoes

2 x 40

Drawbar pulling force

46.5 kN

Travel speed

2.23–4.62 km/h

Gradeability

58% (30°)

Ground clearance

360 mm


CONTROLS

CABIN

Cabin

New ergonomic cab design strengthens the structure of the entire stamping with such features as: strong impact resistance, vibration damping pads, vibration absorption, comfortable seat with broad vision, smooth contour lines of the outer surface, sturdiness & durability.

Controls

Two joysticks, two foot pedals, manual-/electronic-controlled throttle.
Functions of two joysticks: digging & swinging.

Boom cylinder

110 x 65 x 841 mm

Arm cylinder

85 x 55 x 746.5 mm

Bucket cylinder

85 x 55 x 578 mm


SWING
SYSTEM

Swing motor type

Swash plate piston motor

Brake

Pressure release

Parking brake

Lubricated double-disc

Swing speed

10.4 rpm

Tail swing radius

1550 mm

Application

New 6 ton crawler excavator SE60

Trading information

New 6 ton crawler excavator SE60

Our Services

New 6 ton crawler excavator SE60

 Warranty: We grants our clients a 12 month or 2000 hours warranty for any machines purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective parts will be repaired or replaced free of charges at our discretion.

Spare parts: We is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and service, wherever you are. Please submit your spare parts requires to us and list products name, model equipment serial number, description of required parts. We guarantee that your requires will be handled quickly and appropriately.

Installation & Maintenance: We is able to provide you with the overall installation of complicated machinery and equipment, allowing you to start the normal operation of generators set and engine immediately. After installation, we will make inspection of the whole machine, operate equipment and provide you with testing date reports of installation and operation.


Company Information

New 6 ton crawler excavator SE60New 6 ton crawler excavator SE60

New 6 ton crawler excavator SE60


Relying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine.

Our main products are Bulldozer, Excavator, Wheel loader, and machinery spare parts, which meet domestic trade and  exported to Europe, Africa, America, Russia, etc.

We promised to provide you with the first-class items and superior service, welcome your inquiry!
