Jining Infront Construction Machinery Co Ltd

SE70 Best performance new excavator price

Payment Terms: TT or LC

Ref Price : USD50000-60000

Supply Capability : 200SET/month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

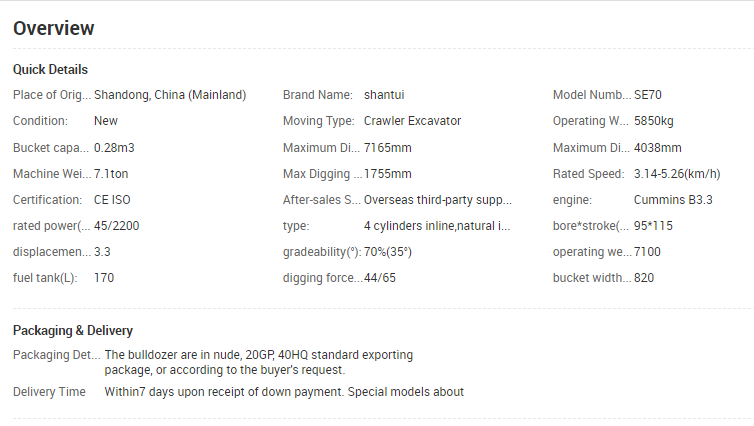

Quick Details

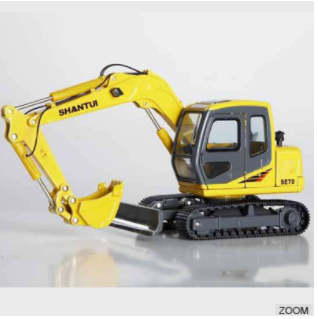

Best performance new excavator price SE70

Good working condition Shantui Crawler excavator SE70



Original imported engine with Tier 2 emissions, conducive for energy saving; features radial seal air cleaner and air pre-cleaner, effectively extending engine service life. Original imported hydraulic components, featuring high work efficiency and big digging force.

New type cab and seat, strengthened working devices, with up to 360°swing with radius of up to 3.7m; strong adaptability in mining environments. Electronic controls offer real time monitoring of operating status, with self-diagnosis and recording functions, electronic control throttle, and choice of four operating modes. Blade and breaking pipe are standard equipment, making this a multifunctional machine.

Multi-function GPS with remote monitoring and two-way data transmission, and real time operating status of the machine.



Technical Features

 Good working condition Shantui Crawler excavator SE70Good working condition Shantui Crawler excavator SE70

Performance Paramete



SE70
Technical

specifications:

Minimum ground clearance: 362 mm Overall length: 6146 mm
Operating weight: 7.1 t Overall height: 2588 mm
Ground pressure: 36.2 kPa Overall width: 2210 mm

ENGINE Model Cummins B3.3
Type 4-cylinder in line, natural intake, water-cooled.
Quantity of cylinders 4
Bore x stroke 95 x 115 mm
Displacement 3.3 L
Power output 45 kW/2200 rpm
Maximum torque 214 N·m/1600 rpm

HYDRAULIC
SYSTEM
Pump Imported
Type Variable double-piston pump
Maximum discharge flow 2 x 74.8 L/min
Boom, arm and bucket 27.5 MPa
Travel circuit 27.5 MPa
Swing circuit 23.5 MPa

TRAVEL
SYSTEM
Travel motor Variable axial piston
Travel brakes Lubricated double-disc
Parking brake Pressure release
Drawbar pulling force 67.7 kN
Travel speed 3.14~5.26 km/h
Gradeability 70% (35°)
Ground clearance 361.5 mm

CONTROLS

CABIN

Cabin

New ergonomic cab design strengthens the structure

of the entire stamping with such features as:

strong impact resistance,

 vibration damping pads, vibration absorption,

 comfortable seat with broad vision, smooth contour

 lines of the outer surface, sturdiness & durability.

Controls

Two joysticks, two foot pedals, manual-/electronic-controlled throttle.Functions of two joysticks:

 digging & swinging.

Boom cylinder 115 x 65 x 864 mm
Arm cylinder 100 x 60 x 867 mm
Bucket cylinder 90 x 55 x 710 mm

SWING SYSTEM Swing motor type Swash plate piston motor
Brake Pressure release
Parking brake Lubricated double-disc
Swing speed 11.2 rpm
Tail swing radius 1750 mm

BUCKET Bucket capacity Backhoe bucket 0.28 m3 (SAE)
Number of bucket teeth 5
Bucket width 804 mm
Arm length 1.65 m

Maximum digging reach

at ground level

6.326 m/6.181 m
Maximum digging depth/height 4.147 m/7.118 m
Maximum dumping height 5.110 m
Minimum swing radius 1.813 m

Application

Good working condition Shantui Crawler excavator SE70

Trading information

Good working condition Shantui Crawler excavator SE70

Our Services

Good working condition Shantui Crawler excavator SE70

 Warranty: We grants our clients a 12 month or 2000 hours warranty for any machines purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective parts will be repaired or replaced free of charges at our discretion.

   Spare parts: We is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and service, wherever you are. Please submit your spare parts requires to us and list products name, model equipment serial number, description of required parts. We guarantee that your requires will be handled quickly and appropriately.

   Installation & Maintenance: We is able to provide you with the overall installation of complicated machinery and equipment, allowing you to start the normal operation of generators set and engine immediately. After installation, we will make inspection of the whole machine, operate equipment and provide you with testing date reports of installation and operation.

Company Information

Good working condition Shantui Crawler excavator SE70Good working condition Shantui Crawler excavator SE70

Good working condition Shantui Crawler excavator SE70


Relying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd  is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine.

Our main products are Bulldozer, Excavator, Wheel loader, and machinery spare parts, which meet domestic trade and  exported to Europe, Africa, America, Russia, etc.

We promised to provide you with the first-class items and superior service, welcome your inquiry!
