Shandong Mountain Raise Heavy Industry Machinery Co Ltd

ZL08 Model Chargeur Sur Pneus With CE

Payment Terms: TT or LC

Ref Price : 5000-7000 USD/TON

Supply Capability : 5000 PIECE

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Condition:
    New
  • Brand Name:
    Mountain Raise
  • Model Number:
    MR908
  • Place of Origin:
    China (Mainland)
  • Type:
    Mini Loader
  • Moving Type:
    Wheel Loader
  • Dimension(Long * Breadth * High):
    4200x1600x2550mm
  • Rated Load:
    800kg
  • Operating weight:
    2500kg
  • Bucket capacity:
    0.4cbm
  • Max.dump height:
    3200mm
  • Engine:
    CHANGCHAI 390
  • Rated Power:
    25KW
  • Rated speed:
    2300r/min
  • Transmission system:
    one grade three componets
  • Tire Size:
    700-16

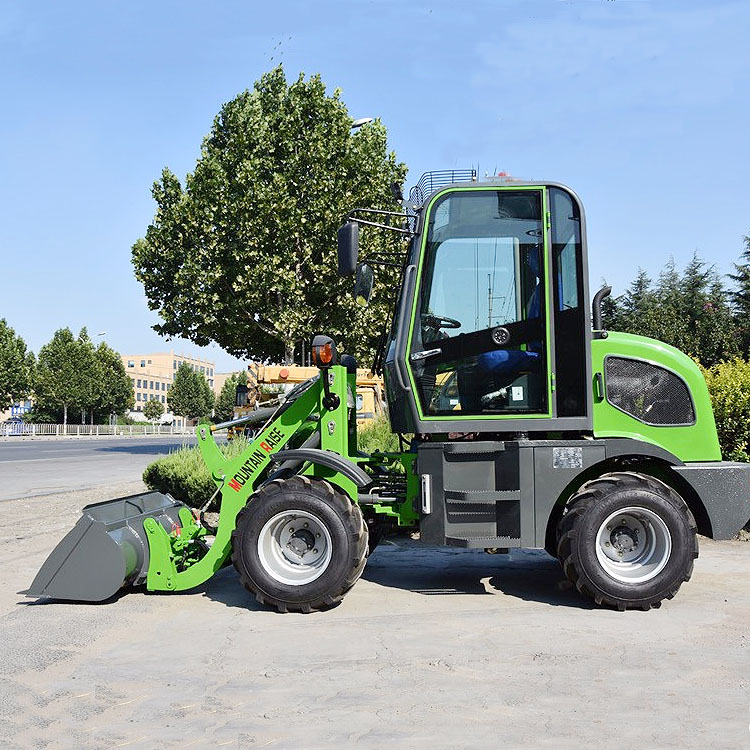

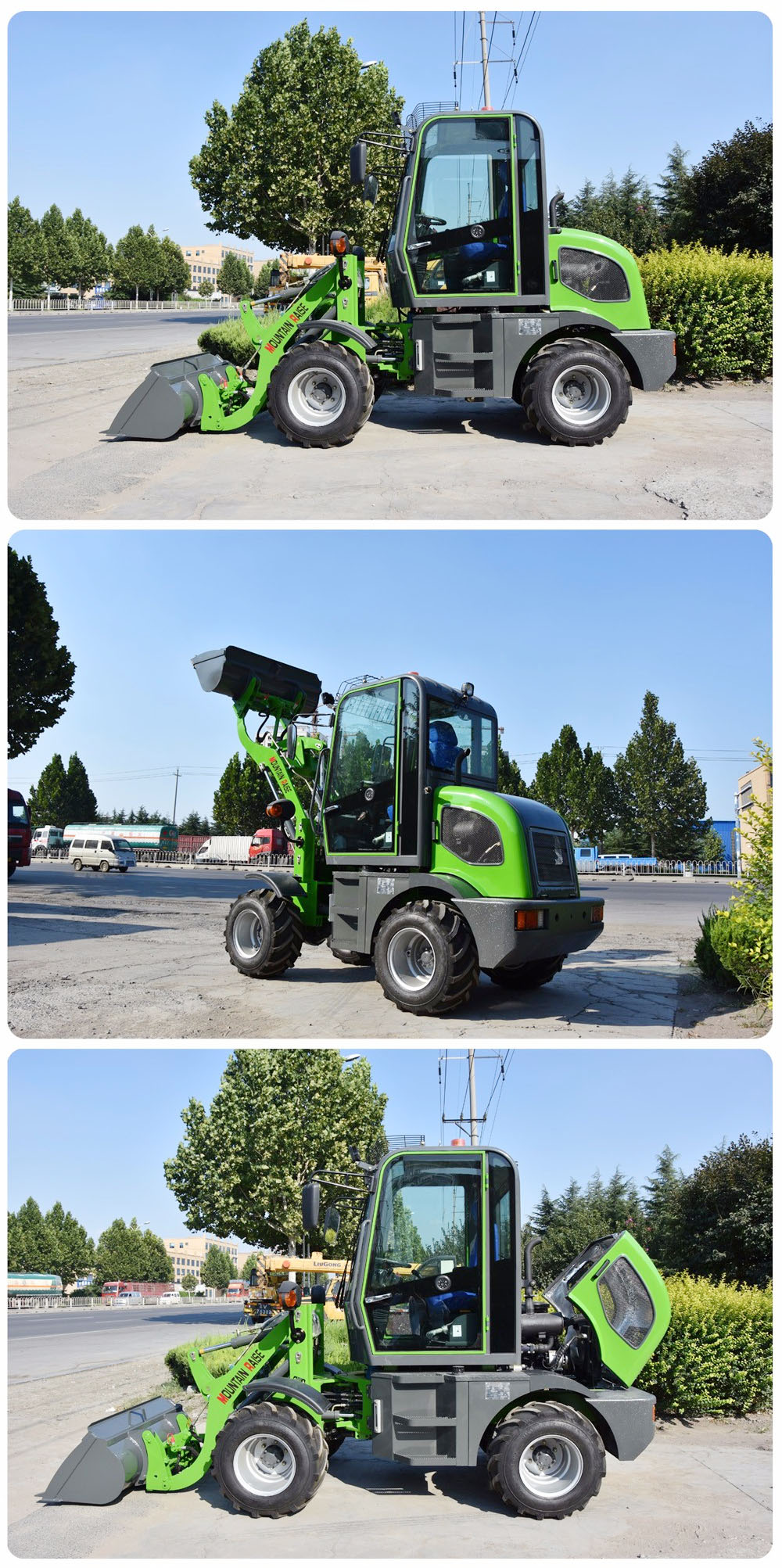

ZL08 Model Chargeur Sur Pneus With CE


Production Description




Mountain Raise European wheel loader ,with 800kg rated load, compact style and articulated body for

easy operating ! This model sells well on European market . Hydraulic system and hydro static system

for option. Full euqipment of the cabin that can meet different requirements of buyers!



Main Specifications


Rated load


800kg

Operating weight


2500kg

Rated bucket capacity


0.4cbm

Dimensions(L*W*H)


4200×1600×2550mm

Max.duming height


3200mm

Bucket indicator


Yes

Max.breakout force


43kN

Engine



Model


CHANGCHAI 390

Type


In-line arrangement,Water cooling, four-stroke

Rated power


25kw

Rated speed


2200r/min

Transmission system



Model of torque converter


YJ240

Type


Single-phase single-stage radial-inward turbine triplex

Gearbox type


Fixed-spindle power shift

Gear shift


F2/R2

Hydraulic system



Distribution of work valve


ZL20B

Working pump


CBGj1045,CBGq1018

Steering system



Type


Articulated hydraulic steering

Max. turning angle


27±1°

Min turning radius


3000mm

Brake system



Brake type


Oil brake(Vacuum booster)

Tires



Standard tyres


700-16

Optional wide tyres


31*15.5-15;10-16.5






Company Information

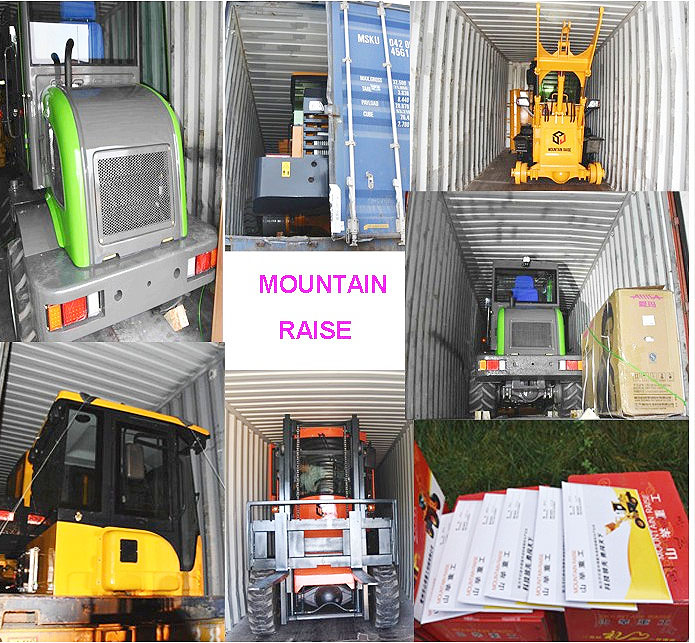

Packing and Delivery



Packing details: 1 set in 1 20'GP Container; 4 sets in 1 40'HC Container.





Related Products

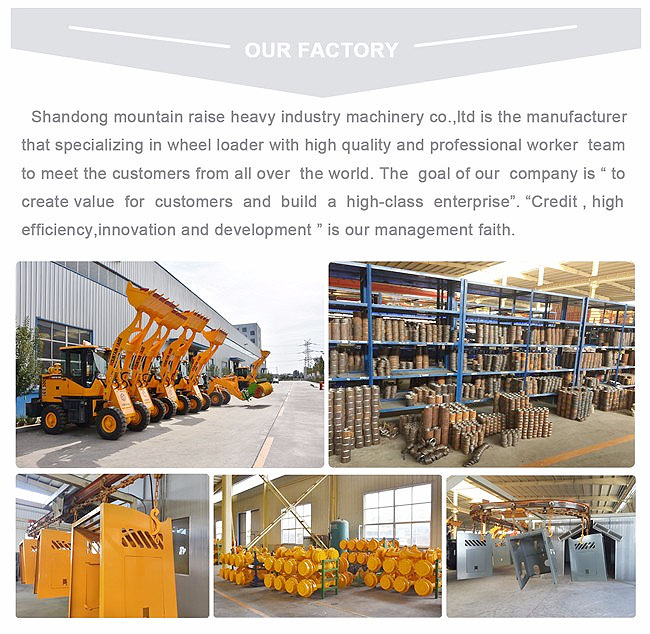

Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years

Production and exporting experience. Now our products can be found working in more than 40 countries.

Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which

passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc

Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as

our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.

We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
