Air Conditioning Rubber Insulation Pipe/ Insulation Tube/ Insulation Hose

Payment Terms: TT or LC

Ref Price : 1-10 USD/TON

Supply Capability : 10000 TON

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    China (Mainland)
  • Brand Name:
    wanmaide
  • Model Number:
    1/4", 3/8"...1-1/8"...2-1/8...
  • Color:
    Black, Red, Blue, Yellow...

 Product Description:

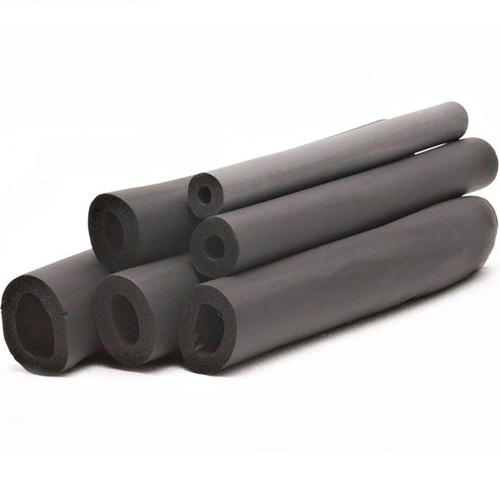

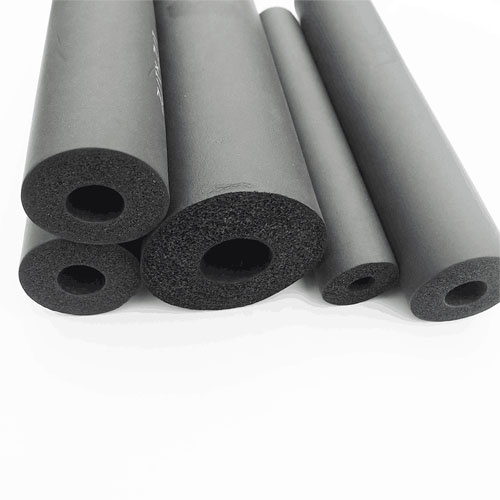

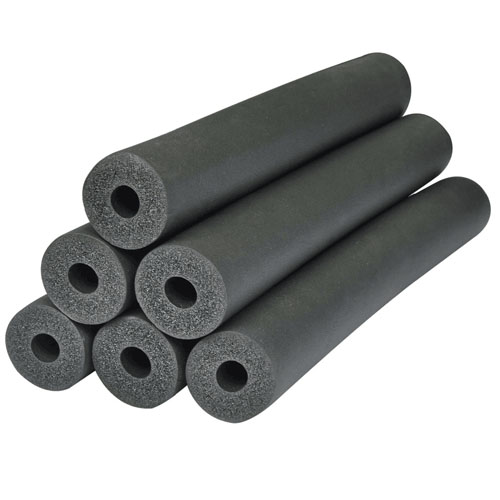

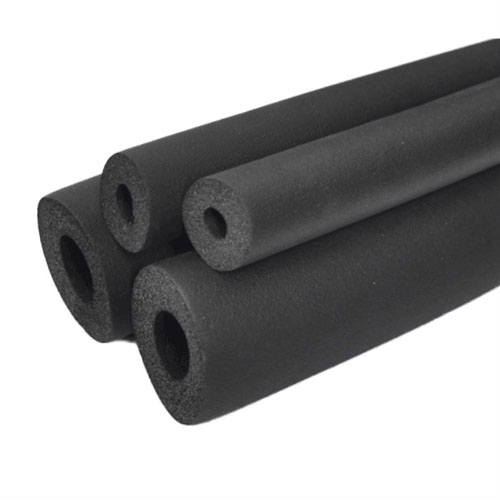

NBR tube/pipe is a black, flexible elastomeric foam tube used to conserve energy and prevent condensation on piping applications. The tube closed cell properties create exceptional thermal and acoustic insulation, protect against moisture penetration and provide the best solution for applications within a -280°F to +221°F temperature range. It is primarily used in the HVAC/R market and comes in 6 feet or 2 meet length. It is 25/50-rated, according to ASTME-84 standards for surface burning characteristics of building materials.


rubber foam insulation materials characteristics:

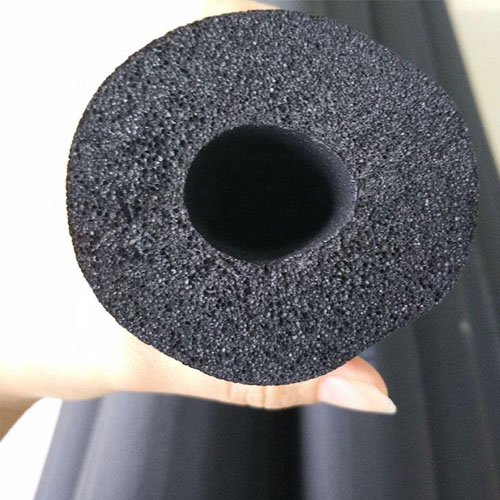

1. Closed-cell Structure.

2. Low Heating Conductivity.

3. Low Water Absorption Rate.

4. Good Fireproof and Soundproof Performance.

5. Good Aging Resistance Performance.

6. Simple and Easy Installation.

rubber foam insulation materials application:

It is ideal for applications in:

Ductwork

Dual temperature and low pressure steam lines

Technical specifications:

Property

Unit

Value

Density range

kg/m³

50~100

Flammability

     -

B1

Oxygen index

%

≥33

Thermal conductivity

 -

-

Average tempreture

-20°C

0°C

40°C

w(m.k)

≤0.032

≤0.035

≤0.037

Moisture resistance factor

    -

≥5x10³

Water absorption ratio in vacuum

%

≤10

Dimension stability

105°C ±3°C, 7d

-

≤10

Ozone resistance

200h

%

Good, not cracking

Compress resilience ratio

Compression ratio 50%

Compression time 72h

%

≥70

Aging resistance

-

150 hours, slight wrinkles, no cracks, holes or distortion

   Tube/pipe specification

Copper pipe Seamless
pipe
Galvanized pipe
TK 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1 1/4" 1 9/16" 2"
ID
6MM 10MM 13MM 16MM 19MM 25MM 32MM 40MM 50MM
OD(Inch) OD(MM) DN " MM PCS/CTN PCS/CTN PCS/CTN PCS/CTN PCS/CTN PCS/CTN PCS/CTN PCS/CTN PCS/CTN
 1/4

1/4" 6 310 165 80 70 - - - - -
 3/8
6 3/8" 10 210 140 70 60 40 - - - -
 1/2

1/2" 13 165 100 60 55 36 - - - -
 5/8 14 8 5/8" 16 125 95 50 40 30 25 - - -
 3/4

3/4" 19 105 80 45 40 27 23 - - -
 7/8 22 15 7/8" 22 85 70 40 35 25 22 16 - -
1    25
1" 25 75 55 30 30 25 20 16 8 5
1 1/8 28 20 1 1/8" 28 - 50 30 30 20 20 16 8 5
1 1/4 32
1 1/4" 32 - 45 30 27 20 18 12 7 5
1 3/8
25 1 3/8" 35 - 40 30 25 20 16 12 7 4
1 1/2 38
1 1/2" 38 - 35 28 23 18 14 10 6 4
1 5/8
32 1 5/8" 42 - 30 25 20 15 12 10 6 4
1 3/4 45
1 3/4" 45 - 29 22 20 15 12 10 5 3
1 7/8
40 1 7/8" 48 - 28 20 20 15 12 10 5 3
2 1/8

2 1/8" 54 - 25 19 19 15 12 8 4 3
2 1/4 57
2 1/4" 57 - - 18 19 14 12 8 4 3
2 3/8
50 2 3/8" 60 - - 17 18 13 12 8 4 2



2 5/8" 67 - - - 17 12 10 8 3 2

76 70 3" 76 - - - 15 10 10 7 3 2

89 80 3 1/2" 89 - - - 10 8 8 6 2 1

108
4 1/4" 108 - - - - - 6 4 2 1

The feature of product:

1.Excellent fire-resistence performance.
2.Low thermal conductivity.
3.Good moisture resistance.
4.No crust rough skin.
5.Good pliability and good anti-vibration.
6.Environmentally friendly.
7.Easy to install & Nice appearance.
8.High oxygen index and low smoke density.




WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude  Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.


We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
