API600 CLASS 150 OS&Y CAST STEEL GATE VALVE

Payment Terms: TT or LC

Ref Price : 35-650 USD/PIECE

Supply Capability : 10000 PIECE

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Model Number:
    GAV
  • Application:
    General
  • Material:
    Casting
  • Temperature :
    Medium Temperature
  • Pressure:
    Medium Pressure
  • Power:
    Manual
  • Media:
    water oil gas
  • Port Size:
    DN50-DN600
  • Structure:
    Gate
  • Brand Name:
    oem


Product Description



API600 CLASS 150 OS&Y CAST STEEL GATE VALVE





TECHNICAL REQUIREMENT :

 1.Design and Manufacture Conform to API 600

 2.Flange dimensions Conform to ASME B16.5

 3.Face to Face dimensions Conform to ASME B16.10

 4.Testing Conform to API 598

 5.Driving mode: hand wheel, bevel gear, electric





Specification



API600 CLASS 150 OS&Y CAST STEEL GATE VALVE





Dimensions data(mm)



NPS 2 3 4 5 6 8 10 12 14 16 18 20 24
L 177.8 190.5 203.2 228.6 254 266.7 292.1 330.2 355.6 381 406 432 457 508
D 152 178 229 229 254 279 343 406 483 533 597 635 699 813
D1 120.7 139.7 190.5 190.5 215.9 241.3 298.5 362 431.8 476.3 539.8 577.9 635 749.3
D2 92 105 157 157 186 216 270 324 381 413 470 533 584 692
b 14.4 16.4 22.4 22.4 22.4 23.9 26.9 28.9 30.2 33.9 35.4 38.4 41.4 46.4
n-d 4-19 4-19 8-19 8-19 8-22 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35
f 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
H 345 387 513 513 583 648 790 935 1100 1200 1330 1480 1635 1935
W 200 200 250 250 300 300 350 400 450 500 500 600 600 650







                              API600 CLASS 150 OS&Y CAST STEEL GATE VALVE

Company Profile



I-Flow has been specializing in flow control area for more than 15 years.



As a professional supply chain manager of flow control products, I-Flow offer gate,globe,check,butterfly,ball, JIS and DIN marine valves,strainers,actuators, flanges, pipes and fittings,with pressure range from 0.5-6.4MPA, size from DN15-DN3000, as well as valve design, inspection, consultation services etc.



With profound understanding of the importance of customer requirement and 15 years experience,we offer highly cost-effective products,enjoying a good reputation. And we have various kinds of certificates, such as ISO9001, API, ABS,PED, UL,FM, WRAS, DVGW, DNV, LR, BV etc, selling to more than 30 countries. Being a reliable partner, we are looking forward to cooperating with

 you.




Tianjin Tanggu Jinbin Valve Co., Ltd. is a large manufacturer in China engaged in research, development and manufacture of industrial valves. The company was established in 2004 and located in the most dynamic Bohai economic circle of China. It is near from Beijing and next to the Tianjin Xingang port the largest port in north China. Along with the booming economy of Tianjin Binhai New Area, the rapid developed valves industry also shows thriving vitality!

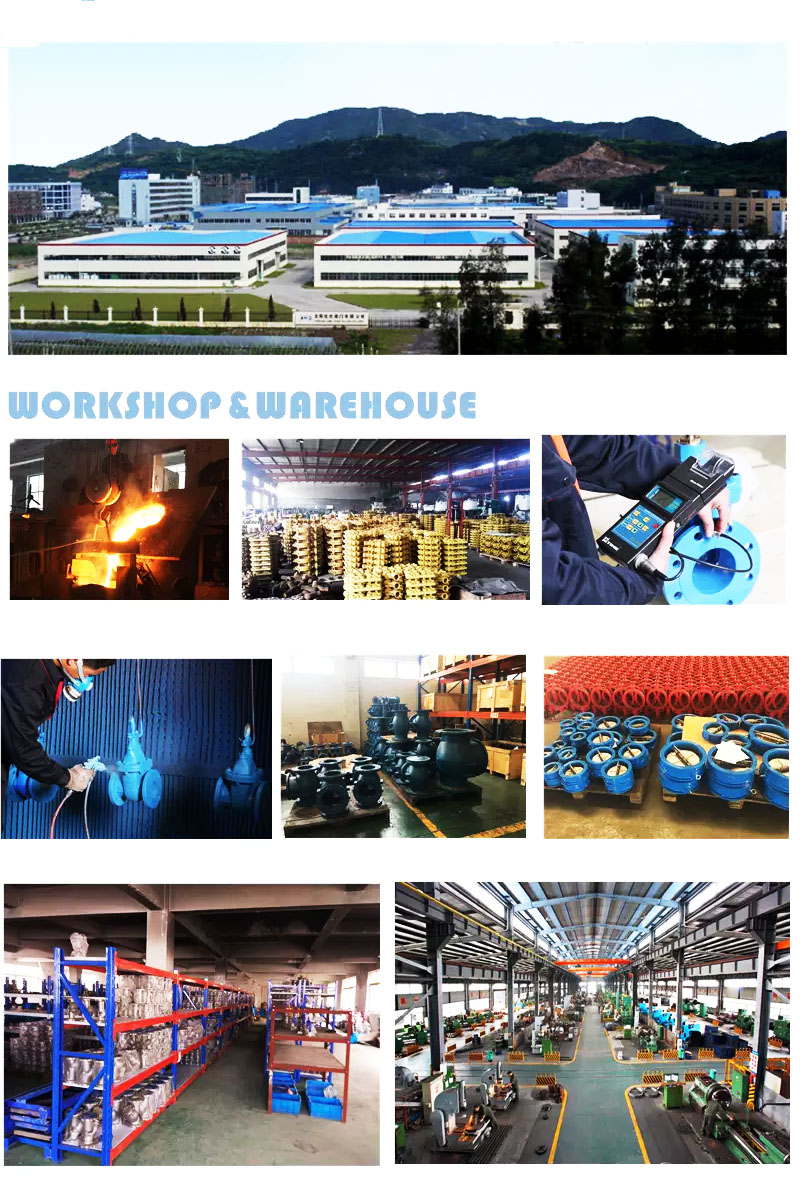

Tianjin Tanggu Jinbin Valve Co., Ltd. covers an area of 24200 square meters, consisting of three workshops and a valve technology research and development center. Patented product is the enterprise's core competitiveness. "large-diameter flange butterfly valve, wafer butterfly valve, hard seal butterfly valve, rubber seat gate valve, carbon steel gate valve, check valve, globe valve, blind plate valve, vent valve, gas relief valve, vent ash ball valve, fire butterfly valve, fire gate valve, square gate, round gate, bellows, ball valve, strainer and others are our main products with our own brand "THT". They are widely used for water, sewage, electricity, metallurgy, oil, heating, construction, petrochemical and other industries. Currently, there are more than 150 staffs. The annual production has reached 300 thousand units. Jinbin valve has developed into the China's large-scale manufacturer and exporters.
