Automated Parking System with Loop Lift

Payment Terms: TT or LC

Ref Price : 1000-8000 USD/SET

Supply Capability : 1000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Name:
    Vertical Car Parking System | Automatic Parking Tower
  • parking spaces:
    2 parking spaces for 12 cars
  • Work situation:
    Takes average 70 seconds and up to 120 seconds to park or take your car
  • Main Component Sources:
    Main PLC and electrical components are from Siemens, Schneider, Omron

Automated Parking System with Loop Lift Description



In response to the serious car parking problem, Weihua Group  independently developed the smart car parking garage. The smart garage  adopts international advanced technologies with  simple operate, easy  access, energy efficient.

This vertical circulation car parking equipment system mainly consists of main  steel structure, plate structure, transmission system, control system,  and safety protection device. The main structure is internally provided  with a fixed guide rail, the lifting chain roller runs in the guide  rail, and the carriage plate is suspended on the extended plate of the  lifting chain. During operation, the car is parked inside the carriage  board, and the chain drive system drives the carriage board for  circulation running in the vertical direction. When the carriage board  runs to the lowest end, the vehicle can be accessed.

Auto parking system will be easily find in city enterprises,  institutions, public places, scenic spots, residential quarters, etc.  Drivers no longer have to worry about the parking spaces!



Automated Parking System with Loop Lift Features and Advantages:

a. 2 parking spaces for 12 cars, maximized utilization rate of available space;

b. Takes average 70 seconds and up to 120 seconds to park or take your  car, the vacancy plate is always at the lowest floor, efficient and  convenient;

c. Automatic control, PLC, Frequency Control, less impact to equipment;

d. Use alone or in combination;

e. Simple operation, 4 ways to use it, card, buttons, remote control, mobile phone, App, etc.

f. Safe and reliable, If people approach, the equipment will automatically stop running;

g. Economical, short construction period, less consumption, green, nice appearance;

h. Quick installation and removal;

i. Stable and durable, main PLC and electrical components are from Siemens, Schneider, Omron;

j. Good market prospects;

k. Weihua Smart Garage adopts advanced parametric design methods such as 3D CAD and CAE;

l. Supported by international first-class brand drive motor;

m. Automated line to ensure structural stability;

n. Strict quality assurance system provides users with safe and reliable products and services;

o. Overall structure is designed by dynamic simulation analysis to  ensure that the equipment is safe and reliable throughout its life  cycle;

p. Each component has a feature code to make product quality can be reversed;

q. It uses intelligent license plate recognition technology, IC control  technology, computer image processing and other advanced technologies  to realize all-round management of vehicle parking guidance, fee  collection, etc.

r. The core control technology and safety detection device can efficiently protect people and vehicles;

s. The intelligent frequency control technology makes the garage run smoothly and efficiently;

t. Using autonomous positioning technology to make the access faster;

u. It adapts to the different needs of customers by setting the operating modes simply on the operation panel;

v. LOT for smart parking can connect parking equipment, charging  systems, etc. to the Weihua cloud platform to achieve big data  transformation of traditional parking management systems integrating the  function of charging, reservation, online payment, etc. Bring a better  parking experience to users.

w. Weihua smart garage can be installed in banks, hospitals,  supermarkets, residential areas, enterprises and institutions, tourist  areas, etc. with small footprint, large capacity, easy to install and  move. Realizing that the capacity is 5-10 times than that of parking on  the ground;

x. Mobile charging piles can be installed as needed to provide charging services for new energy vehicles;

y. Overall planning and scientific customization according to the surrounding environment.

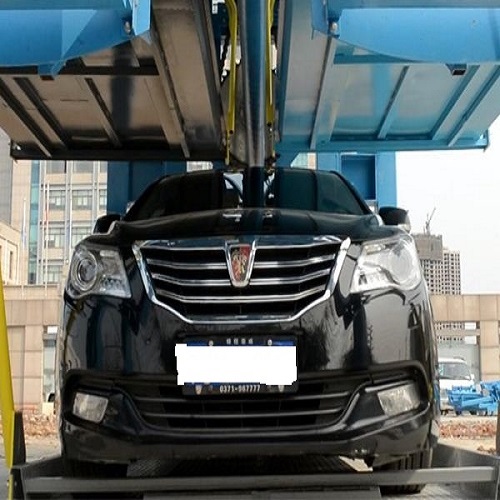

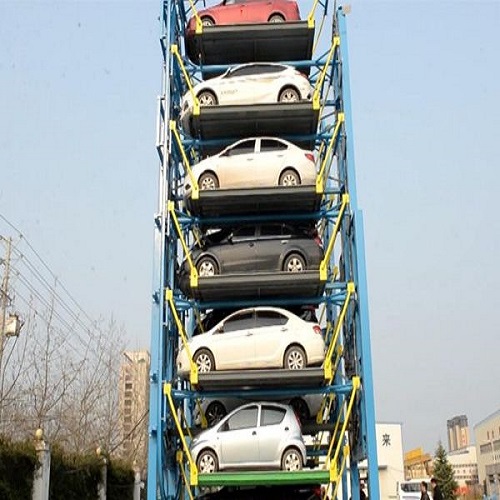

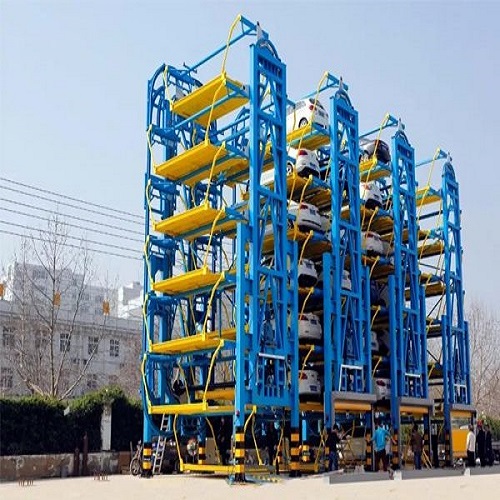

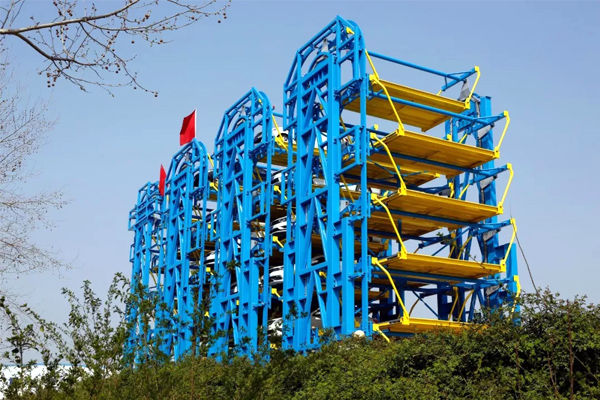

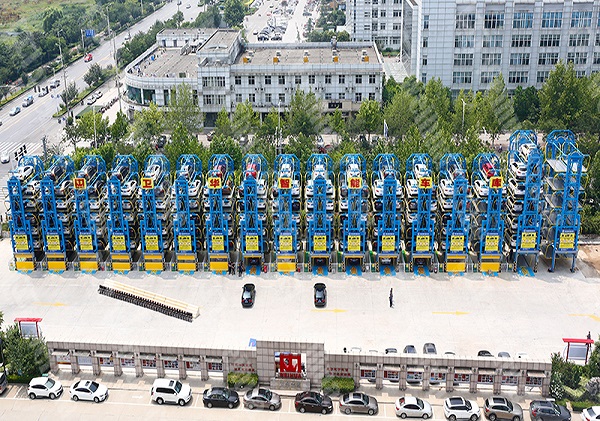

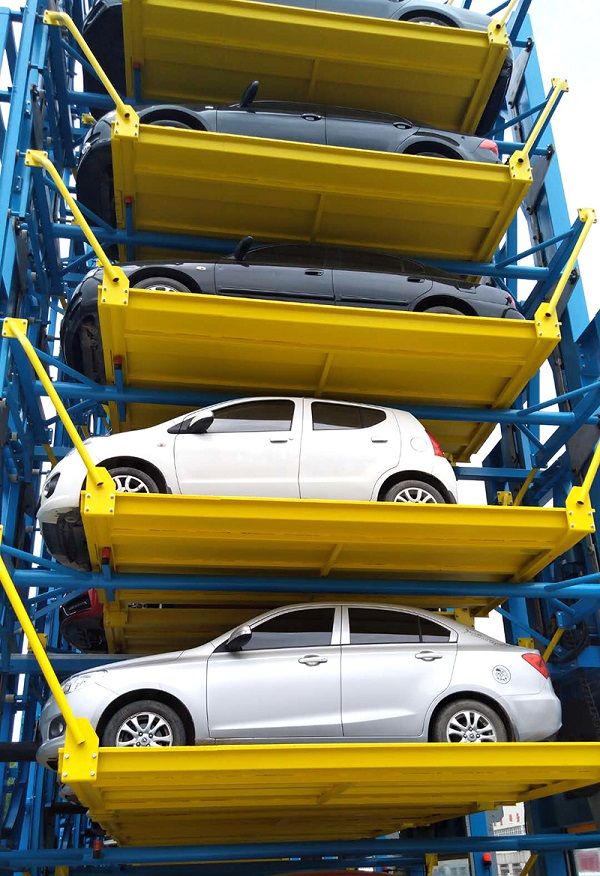

Automated Parking System with Loop Lift Close-up display:

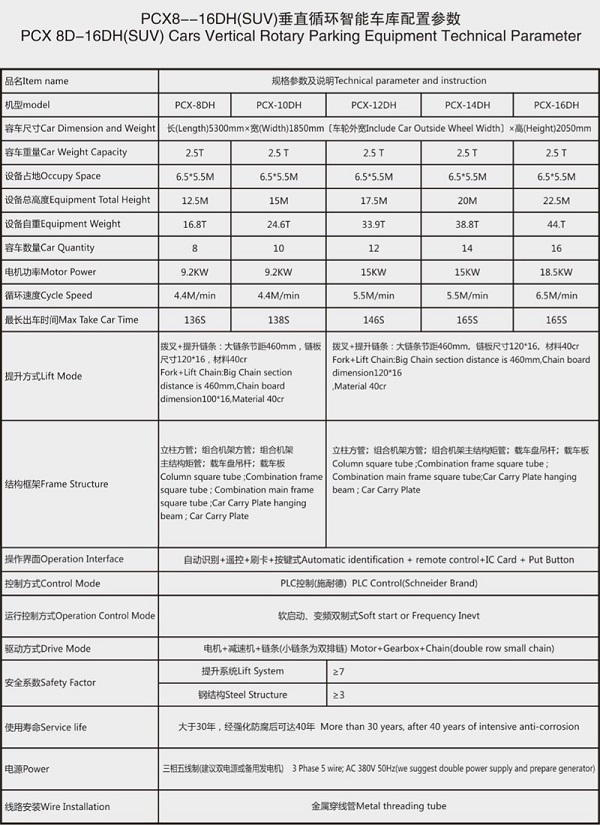

PCX 8D-16DH(SUV) Cars Vertical Rotary Parking Equipment Technical Paramrter:

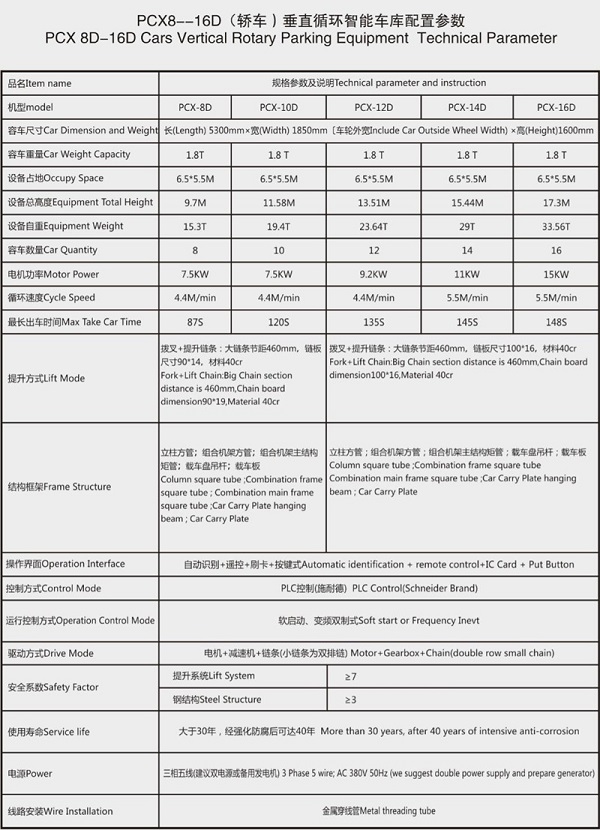

PCX 8D-16D Cars Vertical Rotary Parking Equipment Technical Paramrter:
