Best China Heavy Duty Intelligent Overhead Bridge Crane Price

Product Description

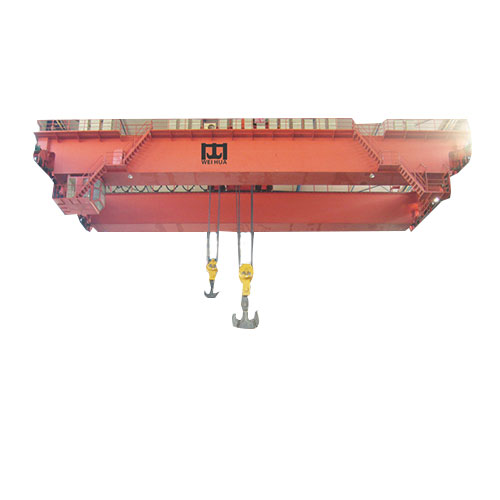

Product Name： Intelligent Overhead Crane for Smelting Feeding

Capacity： 40-60t

Span： 19.5m, 22.5m

Lifting Height： 35-40m

This Intelligent Overhead Crane for Smelting Feeding is usually for Nickel iron smelting feeding in nickel companies, for lifting material feeding bucket with high level of work and high degree of automation.

The cranes for smelting feeding work with anti-sway control which is able to carry out precise positioning tasks with full-automatic spreader. This product has the functions of automatic recognition, automatically hook, automatic feeding and automatically changing bucket. And the entire process is controlled by program, monitoring and operating without men.

This heavy duty overhead crane for smelting feeding is for lifting 5-550tons stuffs. It’s very convenient to install in new or existing workshops. This crane is easy to operate with various functions. With the advantages of compact structure, light weight and high lifting height, it’s widely used in workshops, metallurgy, warehouses and assembly shops, etc.

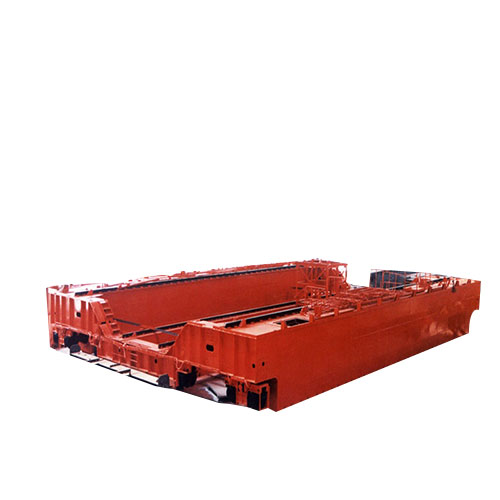

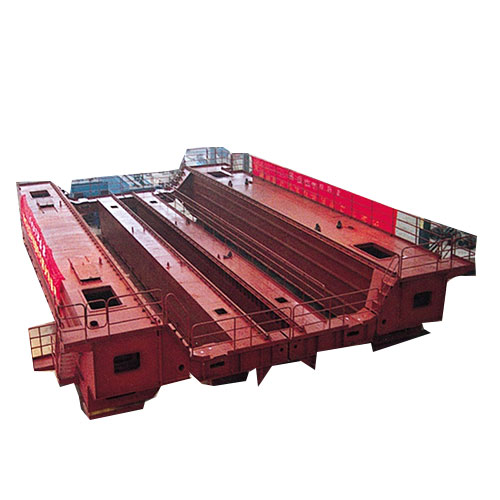

This overhead crane has beautiful box-typed welded main girders. Computer optimized design for main girders with good performance and light weight. And the span reaches 40 meters.

Mechanism of heavy duty overhead crane for smelting feeding

1. Double main girders, box-type shaped by wielding

2. High quality carbon steel Q235B and Q345B

3. Double girder connected by high strength screws

Electric System of heacy duty overhead crane for smelting feeding

1. Power supply through step less slide lines

2. Lifting mechanisms and traveling mechanisms are mutually independent and could travel at the same time

3. Control panel protection degree is IP54

Safety Protection Devices of heavy duty overhead crane for smelting feeding

Overload limiter, limit switch (lifting and traveling), interlocking protection devices, buffer, track sweep plate, shield, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.

Specification

Technical Specifications
Lifting Capacity	t	Main	40		50		60
		Vice	--		--		--
Span	m		22.5		19.5		22.5
Lifting Height	m		35		40		40
Work Duty			A8		A8		A8
Speed	m/min	Main	2~20		2~20		1.7~17
		Vice	--		--		--
		Crane	3.4~34		3.5~35		2.8~28
		Trolley	5.2~52		5.2~52		5~50
Max Wheel Load (KN)			210		232		280
Power    (KW)			259		253		302
Recommand Track			QU80		QU80		QU100
Power Supply			3-Phase A.C.50Hz 380V

Our Company

Founded in 1988, Weihua Group is a leading crane manufacturer in China. Weihua has been committed to heavy machinery researching and marketing. The main product covers lifting machinery, port machinery, mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.

Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.

In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.

Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.

Our success comes from customers' success. Welcome to Weihua.

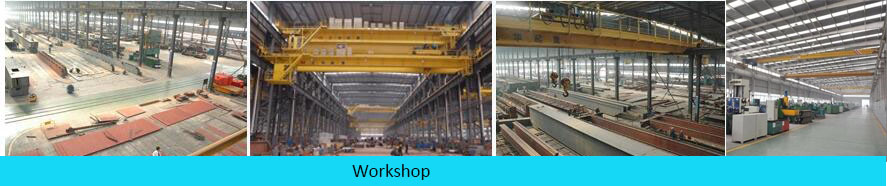

Our Workshop
