Black PVC PE Waterproof Damping Rubber Foam Acoustic Insulation Board

Payment Terms: TT or LC

Ref Price : 1-10 USD/CUBIC METERS

Supply Capability : 10000 TON

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    Tianjin, China
  • Brand Name:
    WanMaiDe Trade
  • Material:
    PVC
  • Dimension :
    ≤5
  • Thickness:
    10-30cm or Customized
  • Density:
    40-80kg/m3
  • Certificate:
    SGS/ISO
  • Feature:
    Light weight/waterproof,etc
  • Transport Package:
    Poly Bags/Cartons/Pallets or Customized
  • Length:
    2m or Customized
  • Elongation:
    110-270%
  • Color:
    Black or Others

Product Description

Rubber as the main raw material ,no fiber ,non-formaldehyde, non-CFC and other ozone-depleting refrigerant ,can be directly exposed to the air, nor harm for human health .Standard product is black ,there are two major categories: rubber foam insulation sheet and insulation pipe, widely applied in central air-conditioning system water pipelines ,ducts ,hot water pipeline and crafts pipe line.


Property

Unit

Value

Test Method

Temperature range

(°C)

-50~110

-

Density range

(kg/m³)

(40~80)

ASTM D1622 or D1667

Thermal conductivity

(0°C)

(W/mK)

0.031

ASTM C177 or C518

(40°C)

(W/mK)

0.036

Water vapor permeability

(kg/m·s·pa)

1.2 X 104

ASTM E96 Procedure A      DIN 52615

Flame spread and smoke developed index

-

25/50

ASTM E84, CAN/ULC S 102

Class 1

BS 476 part 7

V0

UL94

Water absorption, by volume

%

0.2

ASTM C209

Mold growth

-

meet requirement

UL181

Bacterial resistance

meet requirement

ASTM G22

Fungi resistance

meet requirement

ASTM G21/C1338

Resistance to agent chemical

-

stable performance to agent chemical

-

Ozone resistance

-

good

ASTM D1149

Aging resistance

-

150 hours, slight wrinkles, no cracks, holes or distortion

-


Advantages of RUBBER FOAM:
"To win with quality and to be honest with reliable service" is the management theory we always adhere to. Our rubber foam insulation products are selling well in Europe, Russia, the Mid East,Southeast Asia,South America. Please feel free to contact us for further information.

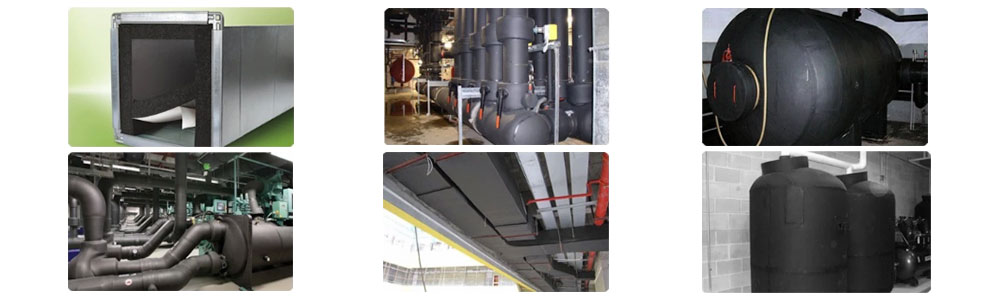

Rubber Foam Insulation Application:
Rubber foam products are widely used in the central air-conditioning system pipelines and equipment, living hot water pipers and equipment, industrial low-temperature piping and equipment, as well as refrigeration system ,in particular ,apply in electronics, food clean ,chemical plant and important public buildings where need higher requirement of cleanness and fire performance demanding.




WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude  Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.

 We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
