Buy Weihua Quayside Mobile Portal Crane Price 25t 40t 50t Made In China

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 5000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Max. Lifting Height:
    above rail 12-45m;below rail 9-16m
  • Feature:
    Portal Crane
  • Application:
    Shipyard; port; quayside
  • Rated Loading Capacity:
    Load Capacity
  • Rated Lifting Moment:
    Load Capacity
  • Max. Lifting Load:
    80t
  • Span:
    Arm Legth
  • Place of Origin:
    Henan, China (Mainland)
  • Brand Name:
    WEIHUA
  • Model Number:
    MQ
  • Certification:
    ISO CE SGS GOST
  • Type:
    Port gantry crane
  • Product Feature:
    Portal Harbor Crane
  • Luffing type:
    Rack or wire rope luffing
  • Lifting mechanism:
    single arm or four-bar combination
  • Working Class:
    A4~A7
  • Control Metho:
    Cabin
  • Power Source:
    3 Phase 380V 50hz or required by customered
  • Language Service:
    English; Russian; Spanish; French
  • Warranty:
    12 Months

Specification

Type

Lifting

Capacity (t)

Height

Height

Gauge×base

Lifting Speed

Max Wheel

Load (KN)

Installed

Capacity (KW)

Match

Ship (/DWT)

Max (m)

Min (m)

above rail (m)

below rail (m)

(m)

Lifting (m/min)

Amplitute (m/min)

Rotation (m/min)

Crane (m/min)

MQ525

5

25

8

12

9

10.5×

40

24

1.5

25

180

280

19000

10.5

MQ535

5

33

10

15

9

10.5×

50

40

1.5

25

210

300

30000

10.5

MQ1025

10

25

8

15

9

10.5×

50

50

1.5

25

220

330

19000

10.5

MQ1033

10

33

10

20

12

10.5×

50

40

1.4

25

185

345

30000

10.5

MQ1625

16

25

9

20

12

10.5×

50

40

1.5

25

240

325

19000

10.5

MQ1633

16

33

10

28

15

10.5×

60

40

1.5

25

250

345

30000

10.5

MQ2533

25

33

10

28

15

10.5×

60

50

1.5

25

260

435

30000

10.5

MQ4033

40

33

10

28

16

10.5×

50

50

1.41

25

260

560

30000

10.5

S4070

40

65

24

45

13

10.5×

15

17

0.26

26

260

400

100000

K10

70

29

45

13


18.5

S5035

50

35

12

40

0

10.5×

7.5

12.8

0.4

25

250

250

30000

K10

38

14

40

0


12

S8035

80

35

12

40


12×

6

12.8

0.4

25

250

320

30000

K10






10.5


Introduction

MQ portal crane is widely used in ports, stations, and storage yards, which can efficiently carry out operation of load, unload and transship to speed up the turnaround of ships and vehicles. Advantages of port portal crane: good performance, beautiful exterior, efficient work, compact structure, running balanced, comfortable operation, safe&reliable, convenient for maintenance. Port portal crane can be used at limited space in ports to load and unload cargo on ships, and leave considerable room for vehicles to pass through, especially applies to universal ports.

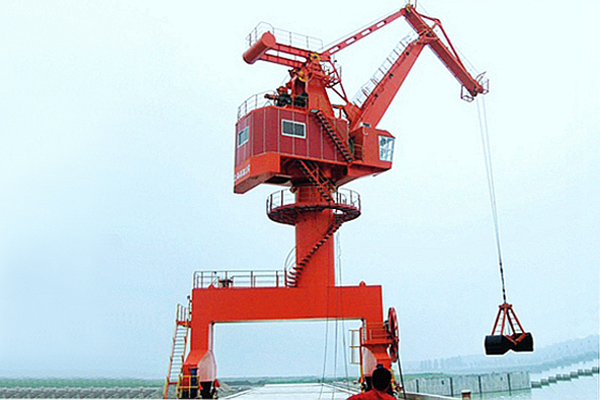

35t-portal-crane



Features of Weihua Portal Crane:

1. Sling can be grab and hook, good adaptability, wide application;

2. Optimized four-bar linkage mechanism, precise luffing;

3. 360° slewing, wide working scope;

4. PLC control, AC frequency speed control, stable and reliable running;

5. Remote control are available according to the requirement;

6. Adequate protection devices, communication and lighting system.

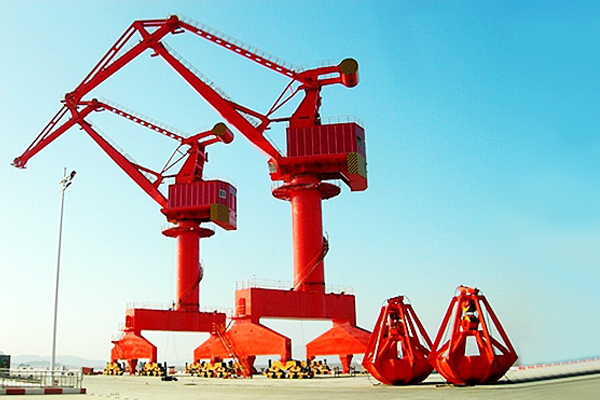

portal-crane



Single-Arm portal Crane:

Single arm portal crane is mainly used in small and medium-sized port to load and unload bulk material. Light weight and small wheel pressure benefit to reduce investment and create considerable gains. It adopts rack amplitude or wire-rope amplitude (block and tackle) to accomplish variable amplitudes with load, horizontal displacement, and rotating or lifting in any degree. Cooperation of amplitudes makes the crane work smoothly and efficiently. Hooks and grabs can be equipped with it.

Four-Bar Combination Portal Crane:

This kind portal crane is a mobile, full-revolving, and four-bar combined crane. Its arms and counter-weight are balanced. There are 2 types of portal frame: cylinder and four outriggers. This portal carne is for lifting containers with hooks or grabs.




portal-crane



Advantages: long arms, suitable for bigger ship, beautiful exterior, safe and reliable, durable advanced performance, convenient for maintenance. It's the best choice for comprehensive multi-typed cargo ports.
