Cangzhou Qianjinyawa Machinery Manufacturing Co., Ltd.

c stud roll forming machine,metal sheet wall stud roll forming machine

Payment Terms: TT or LC

Ref Price : US $7,000-11,000 / Set

Supply Capability : 25 Set/Sets per Month c stud roll forming machine

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

Quick Details

  • Condition:

  • New

  • Type:

  • Tile Forming Machine

  • Tile Type:

  • Colored Steel

  • Use:

  • Roof, ceiling

  • Production Capacity:

  • 0-35 m/min

  • Place of Origin:

  • Hebei, China (Mainland)

  • Brand Name:

  • QJ

  • Model Number:

  • 74.5*32 75.5*25

  • Power(W):

  • 5.5KW

  • Voltage:

  • 380V

  • Dimension(L*W*H):

  • 5.5M*1M*1.3M

  • Weight:

  • 3.5T

  • Certification:

  • CE ISO9001:2008

  • Warranty:

  • 18months

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Item:

  • light gauge steel framing machine

  • Machine Color:

  • grey

  • Control System:

  • THINGET integrated circuit

  • Quality System:

  • CE;ISO9001:2008

  • Motor Power:

  • 5.5KW+4KW

  • Processing Speed:

  • 0-35m/min

  • Thickness:

  • 0.7-1.2mm

  • bearing type:

  • standard

  • Cutting type:

  • tracking length to cut

Packaging & Delivery

  • Packaging Details

  • c stud roll forming machine,metal sheet wall stud roll forming machine
    Main machine is nude,the computer control box is packed by wooden carton box.

  • Delivery Time

  • 30 working days after we get advance payment

c stud roll forming machine,metal sheet wall stud roll forming machine



Product Description

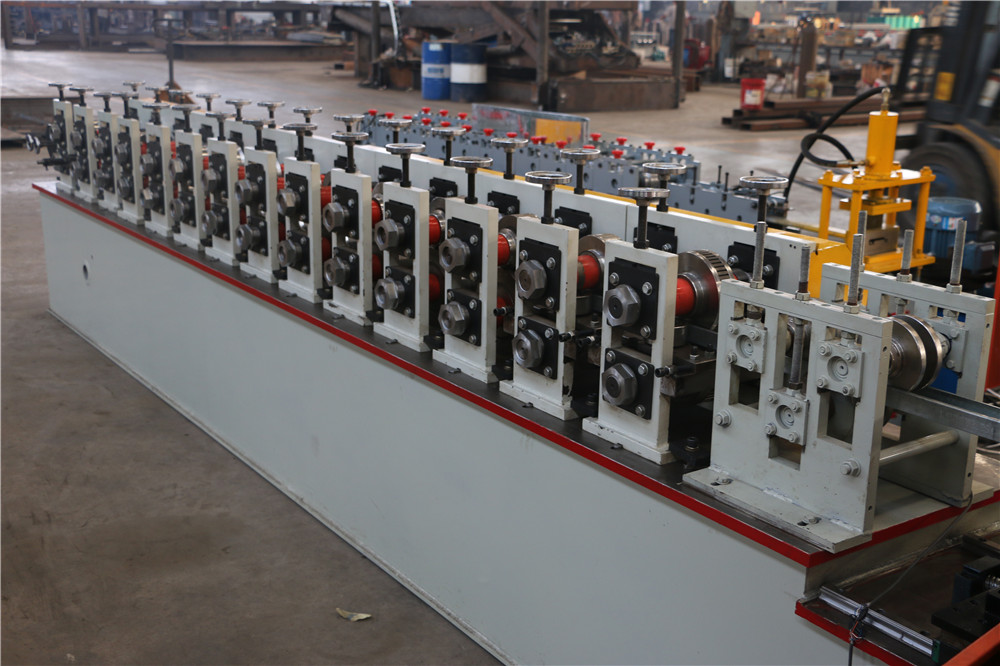

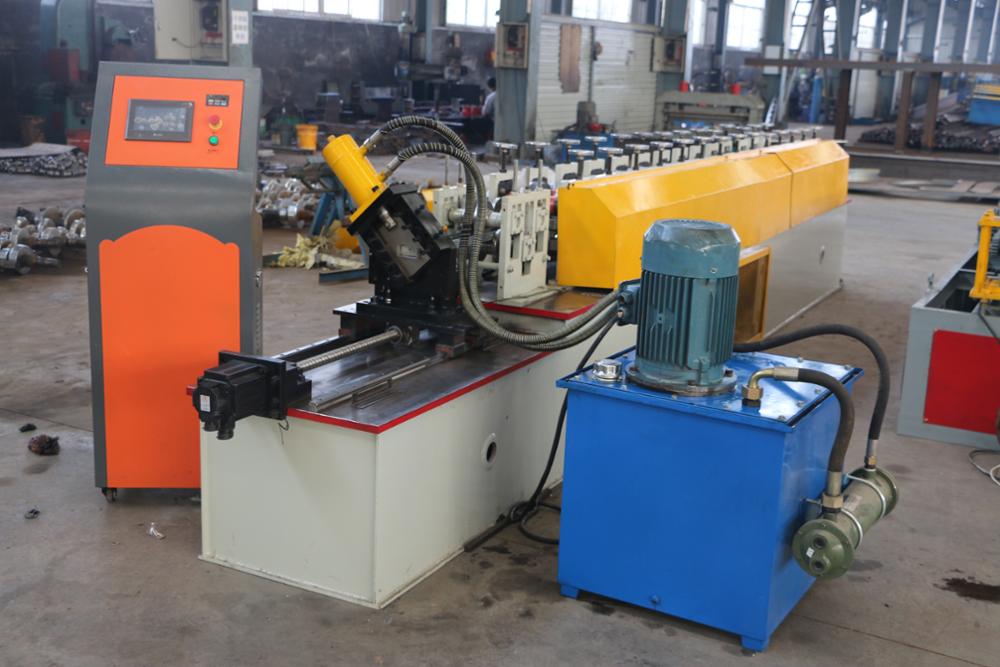

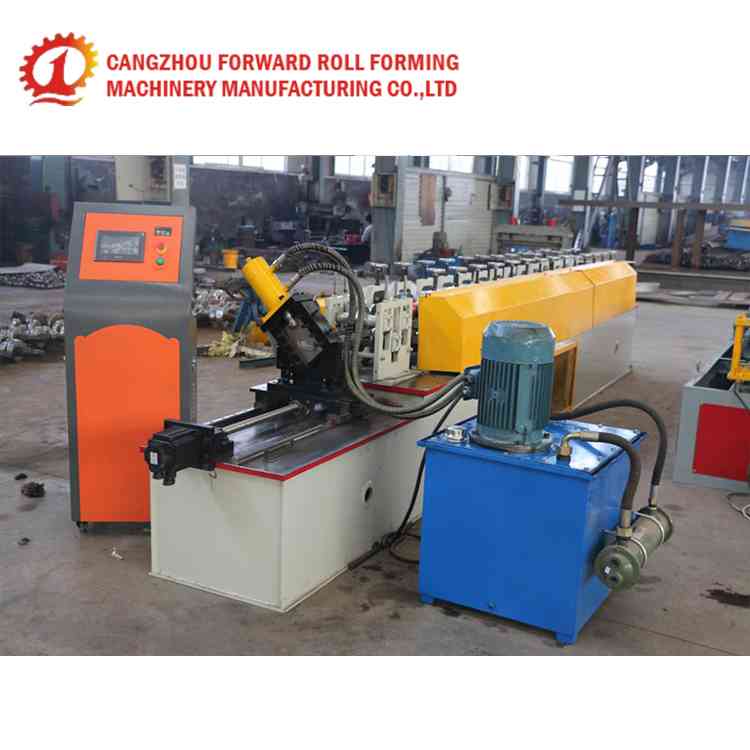

                                     CD74.5*32 light keel roll forming machine



 c stud roll forming machine,metal sheet wall stud roll forming machinec stud roll forming machine,metal sheet wall stud roll forming machinec stud roll forming machine,metal sheet wall stud roll forming machinec stud roll forming machine,metal sheet wall stud roll forming machine



Technology parameter of c stud roll forming machine,metal sheet wall stud roll forming machine



No.

                 Main Parameter of  keel roll forming machine

1

Suitable to process

Color steel plate

2

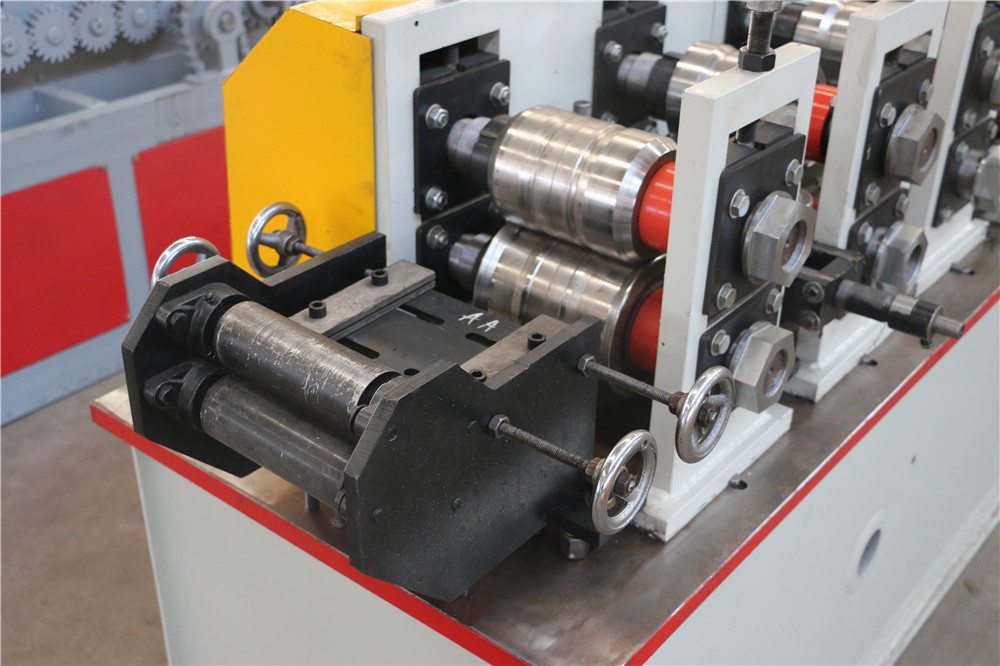

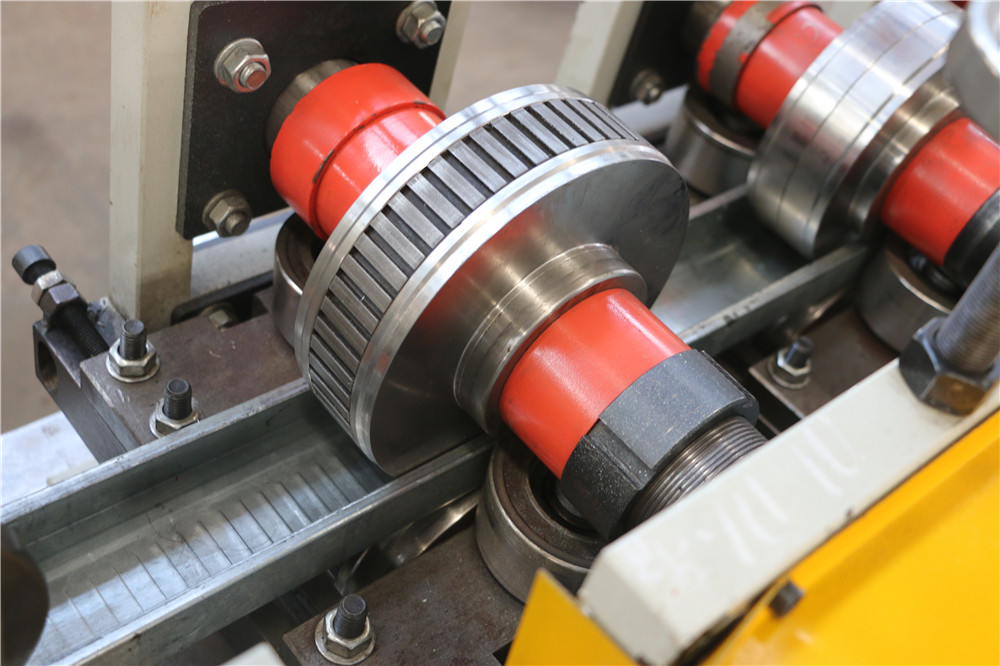

Rollers

10 rows

3

Dimensions

5500*1000*1300mm

4

Power

5.5+4kw

5

Thickness of the plate

7-1.2mm

6

Productivity

0-35m/min

7

Diameter of the shaft

∅50mm

8

Material of the roller

Cr12 Mov

9

Control system

integrated circuit

10

Material of the shaft

high grade 45# steel ,heated and quenched ,cylindrical grinding

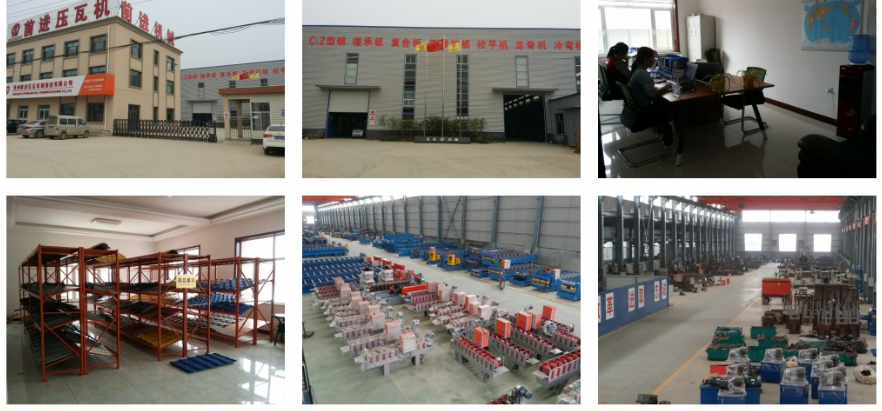

COMPANY PROFILE

 c stud roll forming machine,metal sheet wall stud roll forming machinec stud roll forming machine,metal sheet wall stud roll forming machine

c stud roll forming machine,metal sheet wall stud roll forming machine



Packaging & Shipping



1.We have professional technicians for loading

  Guaranteed the goods load into container without any damage.

2. Transportation : Machines need one 20 feet container to hold

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.




Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd.

We have been devoted to designing, developing and manufacturing pressure equipment for 10 years. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

Our main products are all construction equipment ,such as color steel roofing sheet roll forming machines, C&Z purline machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.
