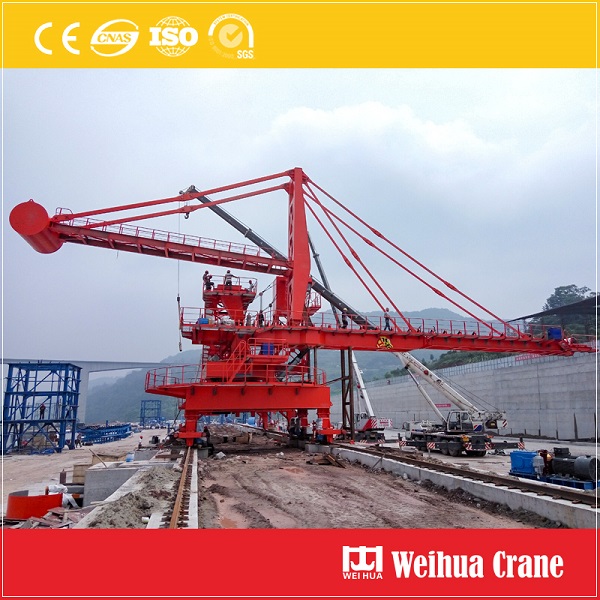

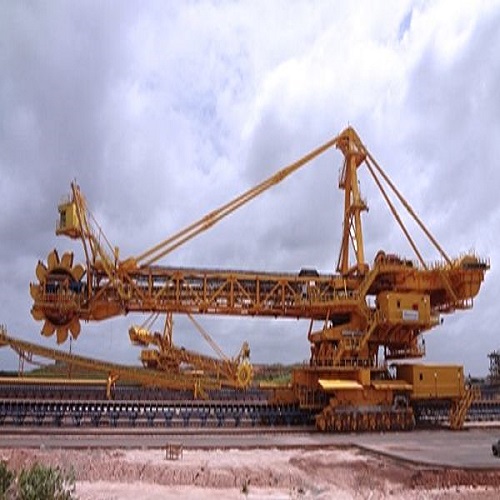

Cantilever Bucket wheel Stacker Reclaimer
Payment Terms: TT or LC
Ref Price : 8000-20000 USD/SET
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Product Name：Cantilever Bucket wheel Stacker Reclaimer
-
Stack Capacity：450-1500t/h
-
Reclaim Capacity：200-8000t/h
-
Materials：Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials.
Cantilever Bucket wheel Stacker Reclaimer Specification
| Equipment model | Unit | QDL200/ 45020 | QDL300/ 60025 | QDL800/ 120030 |
1DL1500/ 150035 |
QDL1800/ 320040 |
QDL1500/ 150045 |
QDL2400/ 150055 |
QL3000 45 |
QL8000 50 |
|
| Production capacity | Stack | t/h | 450 | 600 | 800 | 1500 | 1800 | 1500 | 1500 | / | / |
| Reclaim | t/h | 200 | 300 | 1200 | 1500 | 3200 | 1500 | 2400 | 3000 | 8000 | |
| Stacking height | On the rail | m | 8~15 | ||||||||
| Under rail | m | 0.5~2.5 | |||||||||
| Material characteristics | Applicable materials | Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials. | |||||||||
| Density | t/m³ | 0.5~2.5 | |||||||||
| Granularity | mm | 0~300 | |||||||||
| Bucket wheel diameter | m | 3.3~`10 | |||||||||
| Slewing mechanism | Radius | m | 20 | 25 | 30 | 35 | 40 | 45 | 55 | 45 | 50 |
| Angle | ° | ±110 | |||||||||
| Conveyer | Bandwidth | mm | 650~2400 | ||||||||
| Belt speed | m/s | 1.25~5 | |||||||||
| Traveling speed | Work | m/min | 7 | ||||||||
| Dispatching vehicle | m/min | 30 | |||||||||
| Rail gauge | m | 4.5 | 5 | 6 | 7 | 8 | 8 | 9 | 9 | 10 | |
| Maximum wheel load | KN | 250/300 | |||||||||
| Recommended steel track | P50/Q80 | ||||||||||
| Power supply mode | Cable drum/safety sliding contact line | ||||||||||
| Contact mode | Cable drum/safety sliding contact line/wireless | ||||||||||
| Control mode | PLC program control, manual and single action | ||||||||||
Cantilever Bucket wheel Stacker Reclaimer Description
As a kind of high-efficient, continuous and large-scale handling equipment which is suitable for the bulk materials, the cantilever bucket-wheel stacker reclaimer is mainly used for the handling of coal and ore storage yards in the electricity, metallurgy, coal, building materials, chemical and other industries.
Our company's arm-type bucket-wheel stacker reclaimer has the arm range and stacking capacity range of 20-60m and 100-10000t/h respectively. The above-mentioned equipment is widely applied to the strip materials yard.
Cantilever Bucket wheel Stacker Reclaimer Performance Features:
1. The cantilever bucket-wheel stacker reclaimer can integrate hoisting, transportation, excavation and other functions with high efficient. Considering that it can combine the excavation mechanism with the transportation devices, these two mechanism can make continuous operation, therein, the former mechanism shall take charge of reclaiming and the later mechanism is used for transportation.
2. Low energy consumption The materials are transported by the belt conveyor which has small resistance. Meanwhile, the slewing mechanism applies the rolling bearing to reduce the power consumption.
3. Long service life. Due to the small impact force during reclaiming, small abrasion of spare parts and the wear-resistant materials which are applied by the bucket tooth, the machine can prolong its service life.
4. Easy operation Considering that PLC is applied to control the machine, its working process has realized the semi-automation and automation. The cantilever slewing applies 1/cos frequency control to make the machine in the high-efficient state.
5. It applies the advanced design method. Such as, the computer aided design, three-dimensional design and the optimized design of steel structure can absorb the advanced technology from foreign countries, as a result, the machine can be designed by the advanced and reasonable technology due to the stacker reclaimer designing & manufacturing experience and the continuous summary & enhancement, therefore, the equipment can be put into practice reliably.
6. The equipment is guaranteed by the advanced production equipment and technology means. Such as, the steel pretreatment production line can enhance the products quality and wear-resistant capacity, however, the large-scale milling & boring machine has improved the processing quality of large parts. The large structural parts shall be integrally preassembled in the factory, the driving parts shall accept the trail run in the factory, and the slewing parts shall be prepared by the mould.

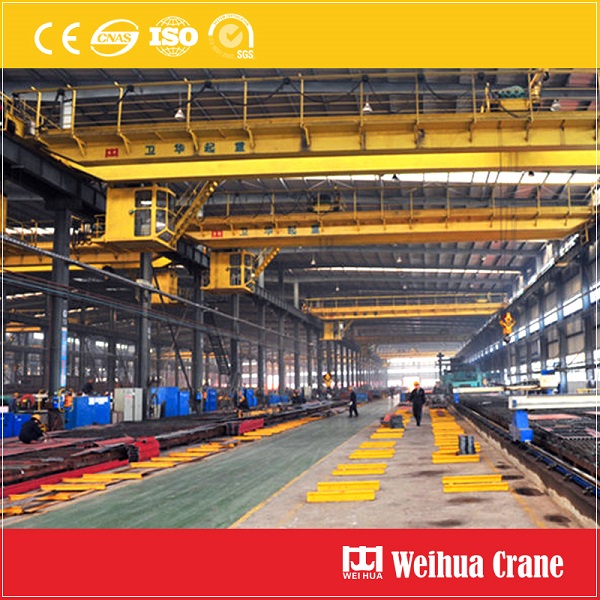

Cantilever Bucket wheel Stacker Reclaimer Production Workshop
Cantilever Bucket wheel Stacker Reclaimer Production Crtificate
Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.
The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.
Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.
In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.
Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.
Our success comes from customers' success. Welcome to Weihua.
