China Factory Direct Price Dacromet 11mm Spring Type Constant Tension Hose Clamp For Sale

Payment Terms: TT or LC

Ref Price : 0.01-10 USD/PIECE

Supply Capability : 5000000 PIECE

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    Tianjin, China
  • Brand Name:
    Shunfa Trade
  • Material:
    Stainless Steel, 65Mn Steel
  • Structure:
    Spring Clamp, Band hose clamp
  • Product Type:
    Spring hose clamp
  • Bandwidth:
    6mm/8mm/10mm/12mm/15mm
  • Bandwidth Thickness:
    0.5mm/0.7mm/0.8mm/1.0mm/1.2mm/1.5mm
  • Surface treatment:
    Blacking, polishing, zinc plating
  • Application:
    Automobile, Aviation, Pipe Connection
  • Keywords:
    spring type hose clamp



Product Description

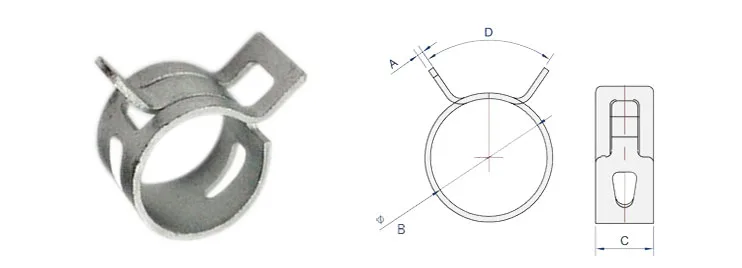

Item Original Diameter (B) (mm)

Range of Application (mm)

Bandwidth (C) (mm) Band Thickness (A) (mm) Material
1 6 6.5--7.5 6 0.5 65Mn Steel
2 7 7.6--8.3 6 0.5
3 8 8.6--9.5 8 0.7
4 9 9.7--10.7 8 0.7
5 10 10.8--11.9 8 0.8
6 11 11.9--13.1 8 0.8
7 12 13--14.3 8 0.8
8 13 14--15.5 10 0.8
9 14 15.1--16.7 12 1.0
10 15 16.2--17.9 12 1.0
11 16 17.3--19.1 12 1.0
12 17 18.4--20.2 12 1.0
13 18 19.4--21.4 12 1.2
14 19 20.5--22.6 12 1.2
15 20 21.6--23.8 12 1.2
16 21 22.5--24.5 12 1.2
17 22 23.6--25.5 12 1.2
18 23 24.8--27.4 12 1.2
19 24 25.9--28.5 12 1.2
20 25 27--29.8 12 1.2
21 26 29--31.5 12 1.2
22 27 29.5--32.5 12 1.2
23 28 31.6--34.4 15 1.5
24 30 34.5--36.5 15 1.5
25 32 37--40.5 15 1.5
26 34 40--42.5 15 1.5
27 36 42--44.5 15 1.5
28 38 44--46.5 15 1.5

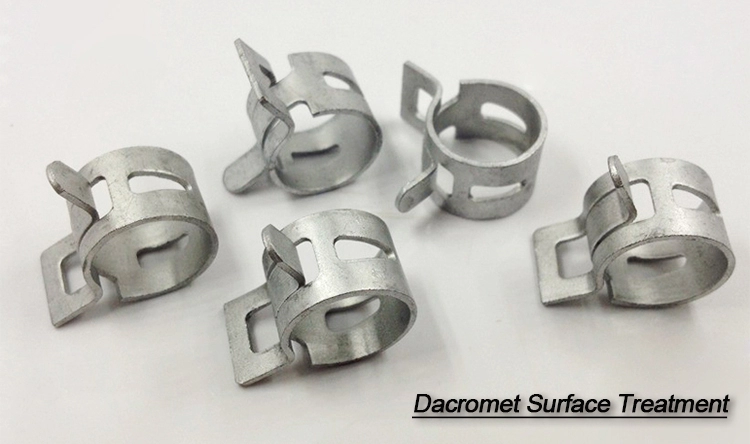

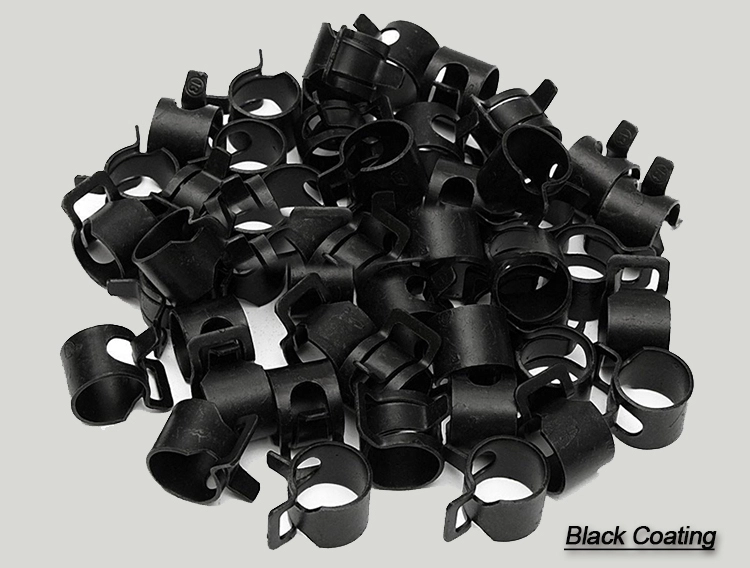

Surface Treatment: Dacromrt, Black Coating

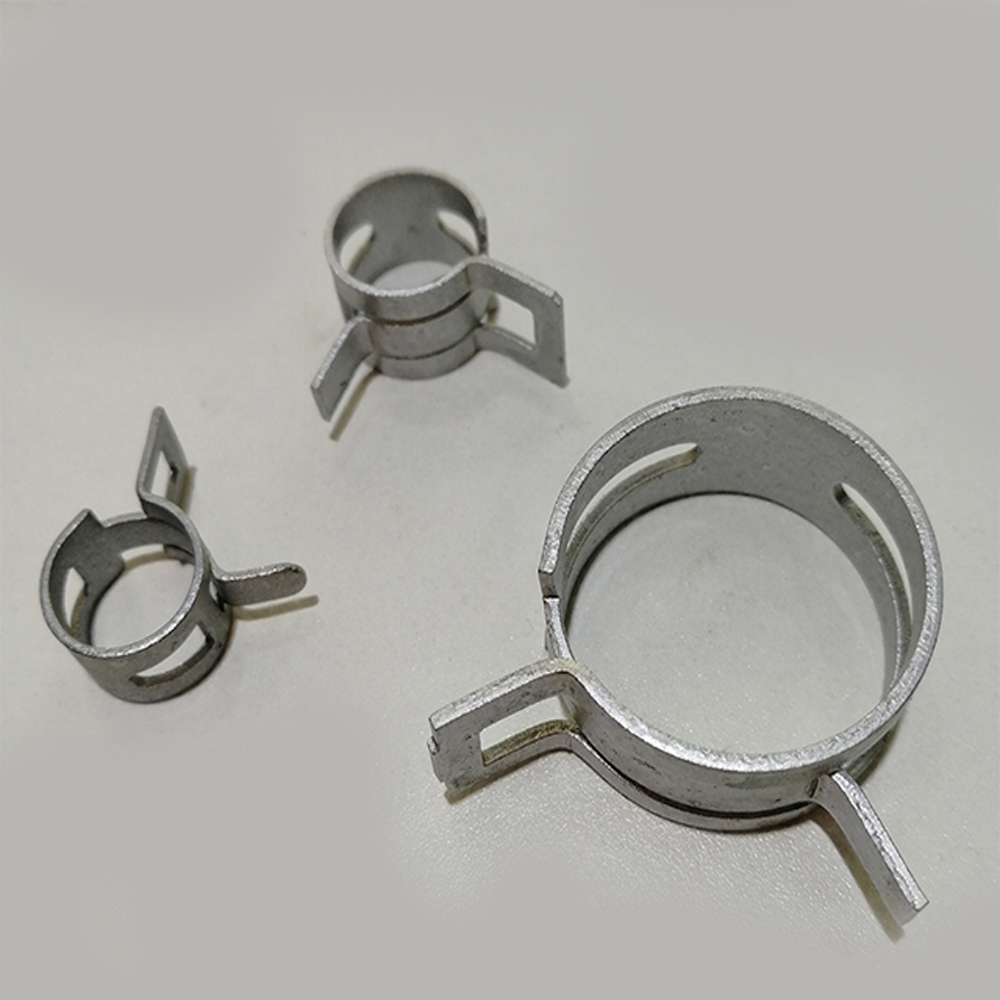

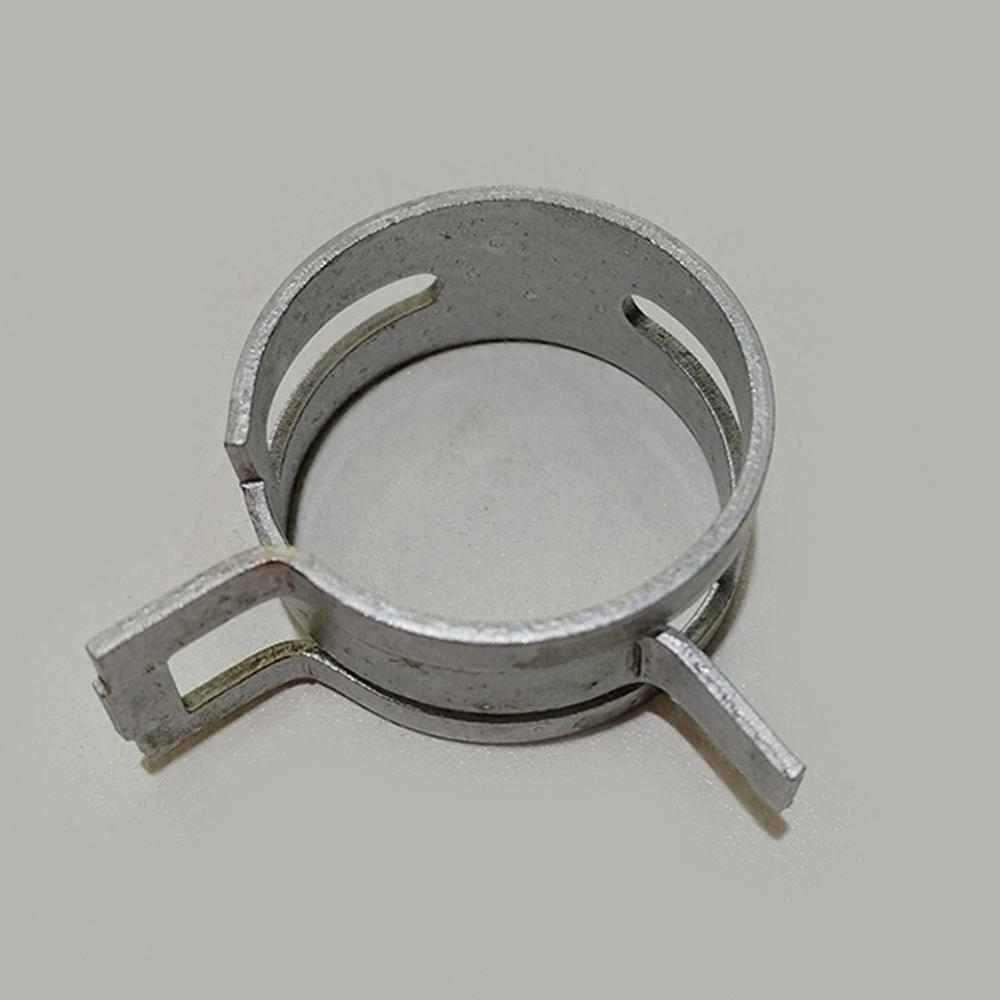

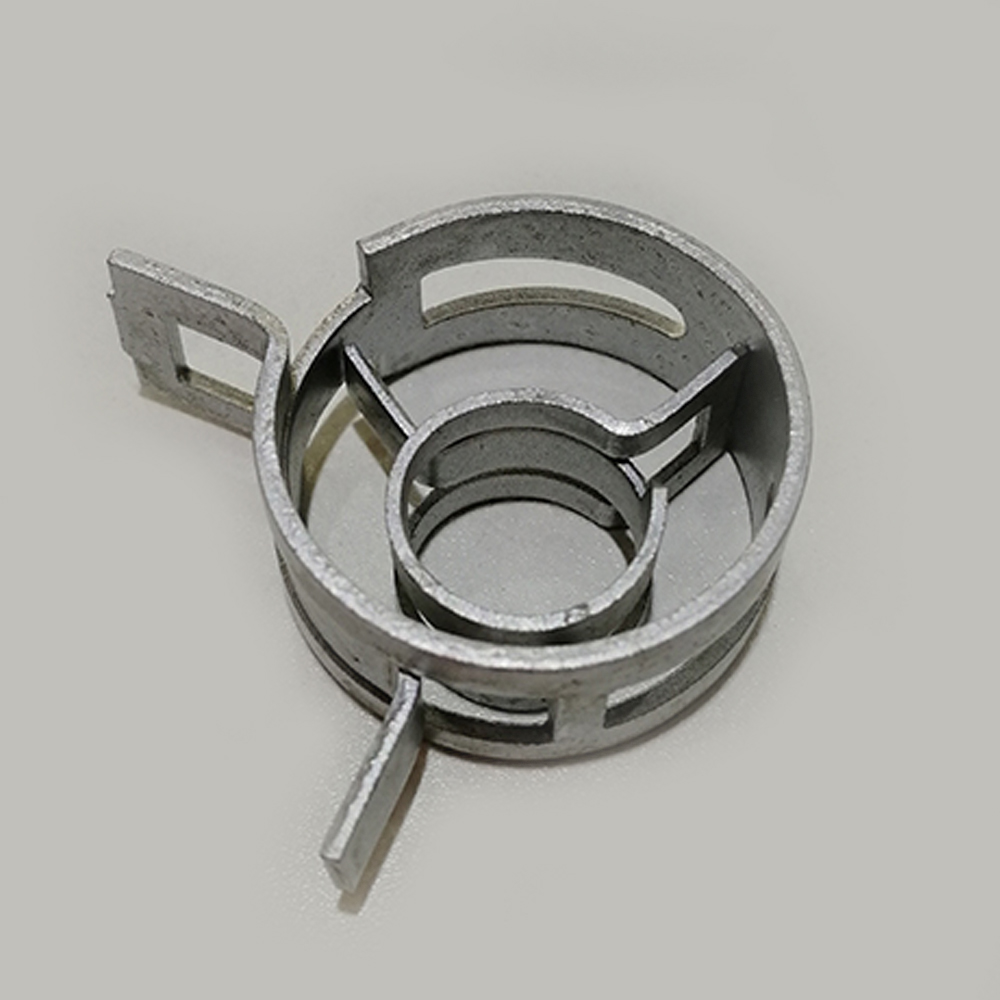

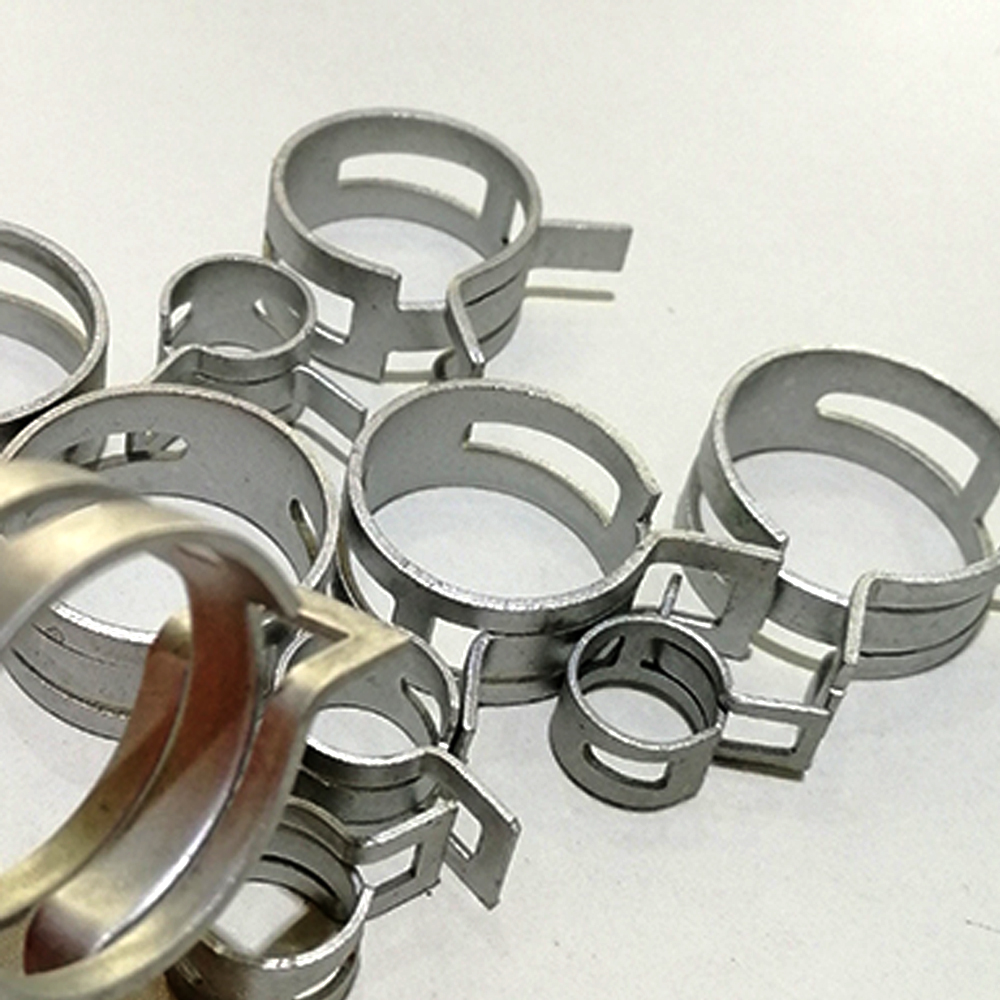

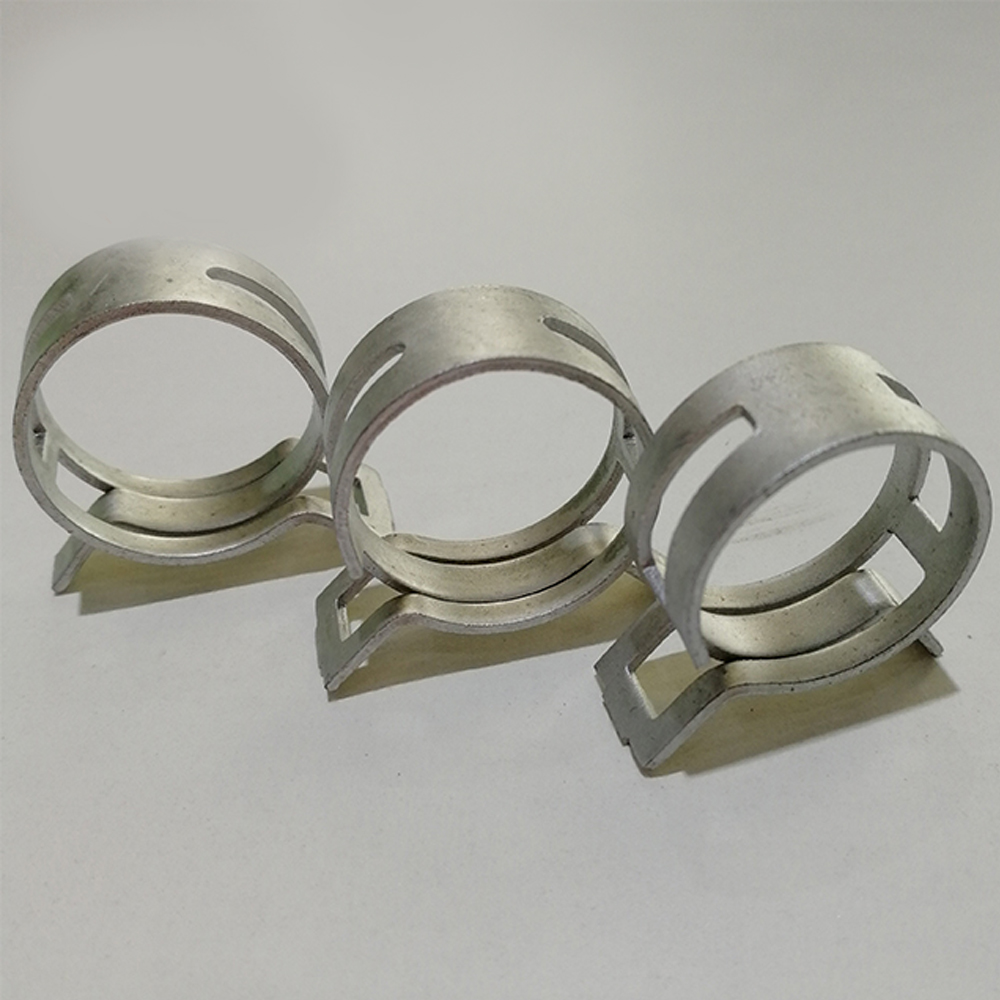

Product Show




Our Advantages

(1)we have the ability to produce any Product according to your mechanical drawing or sample.

(2)Meeting your individual demands is our aim: Requirements which exceed standard dimensions regarding depth of Product thread, form, pitch, or thread angle are processed on demand.

(3)We use the most highly advanced CNC equipment on the market to process raw materials

(4) We are professional manufacturer of hose clamp in China had over 10 years.

(5)We have the ability to use English, Japanese, Chinese, and other languages to communicate with customers.

(6)Our Company Product represents a high quality of products thanks to an implemented quality management system according to ISO 9001:2008.

(7) We are equipped with more than 60 sets of machines and equipment, such as: CNC lathes, CNC milling machines,Jig grinders, punching machines, drilling machines, EDM machines, jig grinders, ID/OD grinders,,surface grinders, and various other grinders, saws and inspection equipment.

(8)Reasonable price and higher quality because we have rich experiece production workers and professional engineers and strong raw material purchasing team.

(9)Excellent sale service in time for both before-sale and after-sale by Email, Telephone and face to face.


Applications

Tianjin Shunfa Universal Clamp Co.,Ltd was founded in 2002. The manufacture covers an area of 340,000 square meters, with a construction area of 250,000 square meters and 1000 employees.The company has great experience in the clamp production industry. Years of technology and quality assurance have enabled us to have a broad customer base in the globle market.

The company's main products are: stainless steel clamp standard parts and non-standard, stainless steel hose clamps, rubber and other products, and exported to Asia, Africa, Europe, the Middle East, the Amerias, and many parts of the world.

We have a first-class technology research and development demand that we provide our customers with the best quality products and services.We sincerely hope to establish long-term trade links with customers from all over the world. If you know more about our company, please contact :shunfa@sino-sources.com


Shunfa Universal Clamp main produce various specifications hose clamp,commit to provide best quality hose clamps products for overseas users.
