China High Quality Light Duty Overhead Bridge Crane 5t Product

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 2500 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Work Duty:
    A5
  • Type:
    Ordinary
  • Power:
    380V, 50Hz or Design
  • Span:
    7.5~22.5m
  • Hoist Traveling Speed:
    2~20m/Min
  • Crane Traveling Speed:
    3~30m/Min
  • Recommanded Track:
    P24,P30,P43
  • Lifting Speed:
    0.8/5;0.66/4 M/Min
  • Safety Protection Devices:
    Equipped
  • Electrical Components:
    Siemens,Schneider
  • Trademark:
    WEIHUA
  • Origin:
    Henan, China
  • Specification:
    Single Girder Light Crane
  • Transport Package:
    Plywood Box/ Plastic Woven Cloth

Description

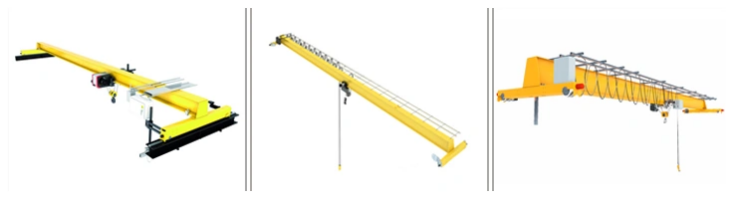

Product Name: Light Duty Overhead Bridge Crane 5t
Lifting Weight: 1t-20t
Span:7.5m-22.5m or other
Working Level: A5

This single girder overhead crane is designed and manufactured according to advanced FEM/DIN standard. FEM/DIN single girder overhead crane has compact structure with small wheel pressure, which efficiently uses limited space in workshops to reduce structure investment.
FEM/DIN single girder overhead crane is widely used in machinery manufacturing, metallurgy, ports, rail stations and warehouses to supply more efficient logistic solutions, especially suitable for the places need precise positioning.

Mechanisms of FEM/DIN Single Girder Overhead Crane:
1. Computer optimized design of box-typed main girder, the full length of web plate is cut and formed through numerical control and its deflection is accurate.
2. Low clearance structure of trolley and reasonable size of hook allowing the crane wide application scope.
3. Arc wheels or flat wheels, anti-friction bearings, honey-typed buffers and anti-derailment devices.
4. Three-in-one motor drive, steeples speed control, hardened reducer, safety disc brake.
5. Good performance, runs smoothly with the steeples speed control
6. Shot blasting grade reaches Sa2.5 after welding and releasing internal stresses to insure the best performance of main girder.
7. Painting epoxy zinc-rich primer, and the thickness of oil film is 140 μm.
Electric System:
1. Power supply through slide lines.
2. Phase protection; automatically disconnect main power when phase stagger occurs.
3. The crane and hoist are mutually independent and could travel at the same time.
4. Sliding contact line meets the requirement of power supplying and adapts shaking.
5. Etch-proof control handle with protection degree IP54.
6. Heavy-duty aviation plug.
7. Electrical components are equipped in position that convenient to maintain, and with good protection to avoid inadvertent contact.
8. Electric cable is suspended in cable trolley which slides flexibly and smoothly on a C-type steel.
Safety Protection:
1. Locked fall-proof reducer;
2. Outdoor hoist with rain-cover;
3. Alarm indicator lights;
4. Infrared anti-collision;


Technical Data


Lifting

Capacity (t)

Span

(m)

Lifting Height

(m)

Lifting Speed

(m/min)

Hoist Traveling

Speed(m/min)

Crane Traveling

Speed (m/min)

Recommanded

Track

1

7.5~22.5

6~12

0.8/5

2~20

3~30

P24

2

6~12

0.8/5

2~20

3~30

P24

3.2

6~12

0.8/5

2~20

3~30

P24

5

6~12

0.8/5

2~20

3~30

P24,P30

10

6~12

0.8/5

2~20

3~30

P30

12.5

6~12

0.66/4

2~20

3~30

P30

16

9~12

0.66/4

2~20

3~30

P43

20

9~12

0.66/4

2~20

3~30

P43

Work Duty

A5

Power

380V, 50Hz or Other

Temperature of Working Environment

-20ºC~+40ºC


Packaging

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
