China High Quality Wall Rail Light Crane Price

Please enter your email.

cancel

China High Quality Wall Rail Light Crane Price

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 4500 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Condition:
    New
  • Rated Lifting Moment:
    Design
  • Max. Lifting Load:
    32tons
  • Max. Lifting Height:
    26m and customizable
  • Span:
    31.5m and customizable
  • Place of Origin:
    Henan, China (Mainland)
  • Brand Name:
    WEIHUA CRANE
  • Certification:
    CE GOST ISO SGS
  • Warranty:
    1 Year
  • Main electrical parts:
    Simens and Simens Brand
  • Emergency stop:
    Equipped
  • Color:
    Yellow .Red . Orange and customizable
  • Painting:
    3 layer anti-rust painting
  • Lifting speed:
    Variable Speed (standard)


Description

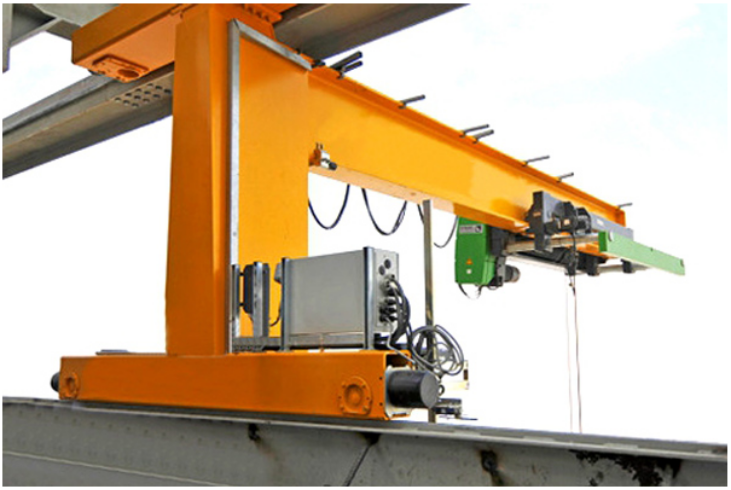

Product Name: Wall Rail Light Crane

Model: BB

Features: Wall rail jib crane runs along the rail or orbit fixed on the wall, unique structure, flexible, saving room.

Application: Assembly workshop, production line, etc.


Wall rail jib crane is a special crane used in the workshop of machine manufacturing and assembling. It runs on the rail mounted on the wall in multilayer assembly shop. This jib crane can make the best of the space structure of the workshop, saving production place.



1. Power: 3-phase AC; rated frequency: 50Hz; rated voltage: 380V

2. Working temperature: -20℃~+45℃; max related humidity is no less than 85%.

3. Work level: A3~A5.



Ordering Must Know:

The basic parameters (rated lifting weight, lifting height and span, etc.) of the wall rail jib crane shall be described clearly.

Specification

Technical Specifications

Lifting Capacity

Span

Lifting

Height

Work Duty

Main Lifting

Speed

Vice Lifting

Speed

Trolley Traveling

Speed

Crane Traveling

Speed

Track

t

m

m


m/min

m/min

m/min

m/min


5

13.5~19.5

18

A5

0.84~8.4


3.4~34

5.1~51

38kg

22.5~31.5

5~50

5

13.5~19.5

18

A5

0.78~7.8


3~30

5~50

38kg

22.5~31.5

5.2~52

16/5

13.5~19.5

18/18

A5

0.76~7.6

0.84~8.4

3.5~35

5.1~51

43kg

22.5~31.5

5.2~52

20/5

13.5~19.5

18/18

A5

0.6~6

0.84~8.4

3.5~35

5.1~51

43kg

22.5~31.5

5.2~52

32/5

13.5~19.5

18/18

A5

0.52~5.2

0.84~8.4

3.1~31

5.1~51

43kg

22.5~31.5

5.2~52

Oct-50

13.5~19.5

18/18

A5

0.43~3.9

0.78~7.8

3.6~36

4.8~48

43kg

22.5~31.5

5.4~54

Notes: Customizable

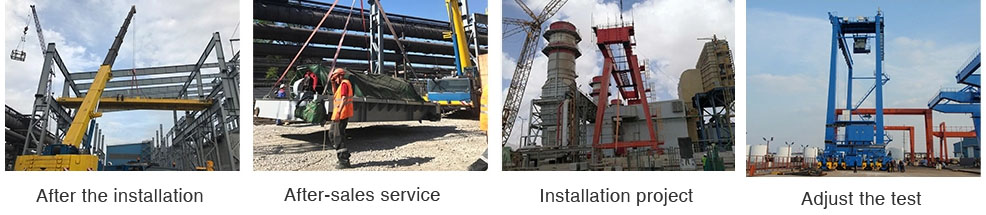

Installation

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
