china supplier CCA aluminum wire rod 12mm

Payment Terms: TT or LC

Ref Price : 2200-2800 USD/TON

Supply Capability : 450 TON

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Surface Treatment:
    Enameled Wire
  • Alloy Or Not:
    Non-alloy
  • Al (Min):
    99.70
  • Ultimate Strength :
    85
  • Elongation (≥ %):
    8
  • Conductivity:
    61.5
  • Model Number:
    aluminum wire rod
  • Application:
    Communication Cable
  • Shape:
    round
  • Technology:
    Extruded
  • Standard:
    AISI,ASTM,BS,DIN,GB,JIS
  • Wire Gauge:
    2.5mm

Aluminum wire rod

 Aluminum wire rod 1350

Purity

Chemical Composition%

AL Minimum

Foreign Content,Maximum

Si

Fe

Cu

V+Cr+Mn+Ti


Al99.70E

99.7

0.08

0.20

0.005

0.01

0.3







Type

Tensile Strength,N/mm²

Fracture Toughness%,Min

Electrical Resistance Ωmm²/m 20,Max

A

60-80

25

0.02755

A2

80-110

12

0.02785

A4

95-115

10

0.02801

A6

110-130

8

0.02801

A8

120-150

6

0.02801

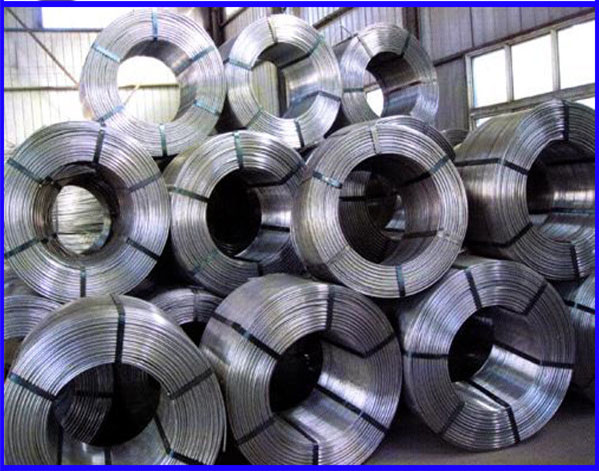

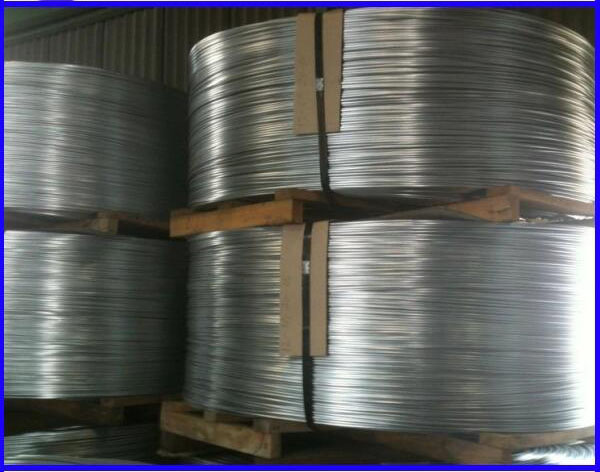

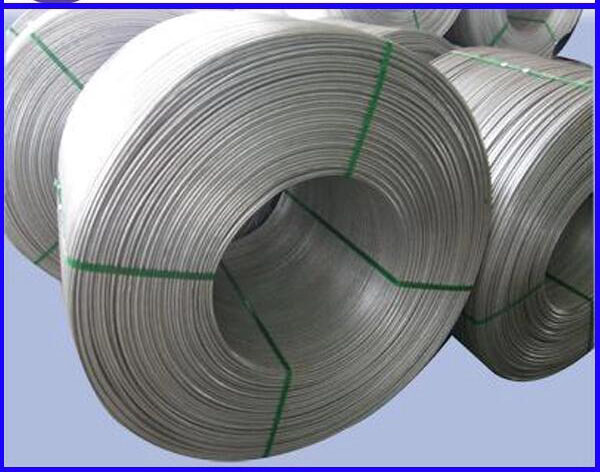

Product Show:




china supplier CCA aluminum wire rod 12mm








Export Market Distribution:

Market Revenue(Previous Year) Total Revenue (%)
North America confidential 5.0
South America confidential 8.0
Southeast Asia confidential 4.0
Africa confidential 6.0
Oceania confidential 2.0
Mid East confidential 3.0
Western Europe confidential 2.0
Northern Europe confidential 3.0
Domestic Market confidential 67.0



Production Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
Wire drawing machine LHD-450/13 6 4.0 Acceptable
Stranding machine JLK-630/54 9 5.0 Acceptable
Rolling mill No information 1 6.0 Acceptable
Plastic extruding machine SJ120/80 4 4.0 Acceptable
Cabling machine 2+3/1250 3 6.0 Acceptable

Testing Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
Tensile machine LJ-5000A 3 4.0 Acceptable
Winding tester JY-B 1 4.0 Acceptable
DC bridge QJ36B-2 2 4.0 Acceptable
Projector JT300S1505 1 1.0 Acceptable
Aging test chamber 401B 1 1.0 Acceptable
Thermostatic water bath JSW-II 1 1.0 Acceptable
Microscope 15J 1 6.0 Acceptable
Density balance MP3002 1 5.0 Acceptable
High voltage tester 0-5000V 1 4.0 Acceptable



Applications:





1.Arcaft, transport vehicles, vessels, instruments, metal products



2.Processing to the rivets, zipper.nails,etc



3.Welding Aluminu Magnesium alloy wire which magnesium content is exceeding3%



4.Sanitary equipment hose braiding materials, automotive and machinery oil hose material



5.Electronic industries and telecommunications industries



6.Textile shield for power cable


The electric aluminum rod produced by Tianjin Jinhe Double Metal Wire Co., Ltd. is mainly used for the production of enamelled aluminum wire and copper clad aluminum wire. It is the first enterprise in China to produce aluminum rods for enameled aluminum wire and copper clad aluminum wire. . Through hundreds of experiments and technological innovations over the past five years, the company has explored a set of aluminum rod production processes suitable for enameled aluminum wire and copper clad aluminum wire products and accumulated a large number of production practice experience. The product quality is stable and reliable. The lacquered aluminum wire and copper clad aluminum wire manufacturers praise. The company has established long-term friendly cooperative relations with Tongling Jingxun, Galanz Electric, Weiqi Electric, Wuxi Meida, Datongfa, Zhangjiagang Shengtian and other large enterprises that produce enameled wire and copper-clad aluminum.

While occupying the domestic market, our company has been involved in overseas markets since 2006. After nearly two years of development and development, our products have been exported to more than ten countries and regions such as North America, Europe, Africa, West Asia, Southeast Asia, Japan and Korea. The annual export volume is 30,000 tons, and it has established good cooperative relations with GE, HDM, Germany SIEMENS, Korea HIHO, SAMJIN and other companies. The export product implementation standards refer to ASTM B233 and EN AW 1350/1370.

"Jinhe" brand electrician aluminum rod has been widely used in domestic electromagnetic wire, enamelled aluminum wire, copper clad aluminum wire, wire and cable, metallurgy, electrical refrigeration and food industries such as GB/T3954-2001. The company currently has a total of 6 aluminum rod production lines, annual consumption of 210,000 tons of aluminum ingots, annual output of aluminum rods of 200,000 tons, is the country's largest electrical aluminum rod processing base. The company's quality assurance system is sound, has passed ISO9001: 2000 quality management system certification, products have passed SGS testing, in line with EU RoHS directives, our company has advanced production equipment, reasonable technology, leading technology, stable and reliable product quality, praised by customers for many years. . Our company has always been based on product quality and the basis of development; to meet customer needs for business purposes; to pursue the maximization of customer benefits as the primary goal, and strive to create "Jinhe" brand.
