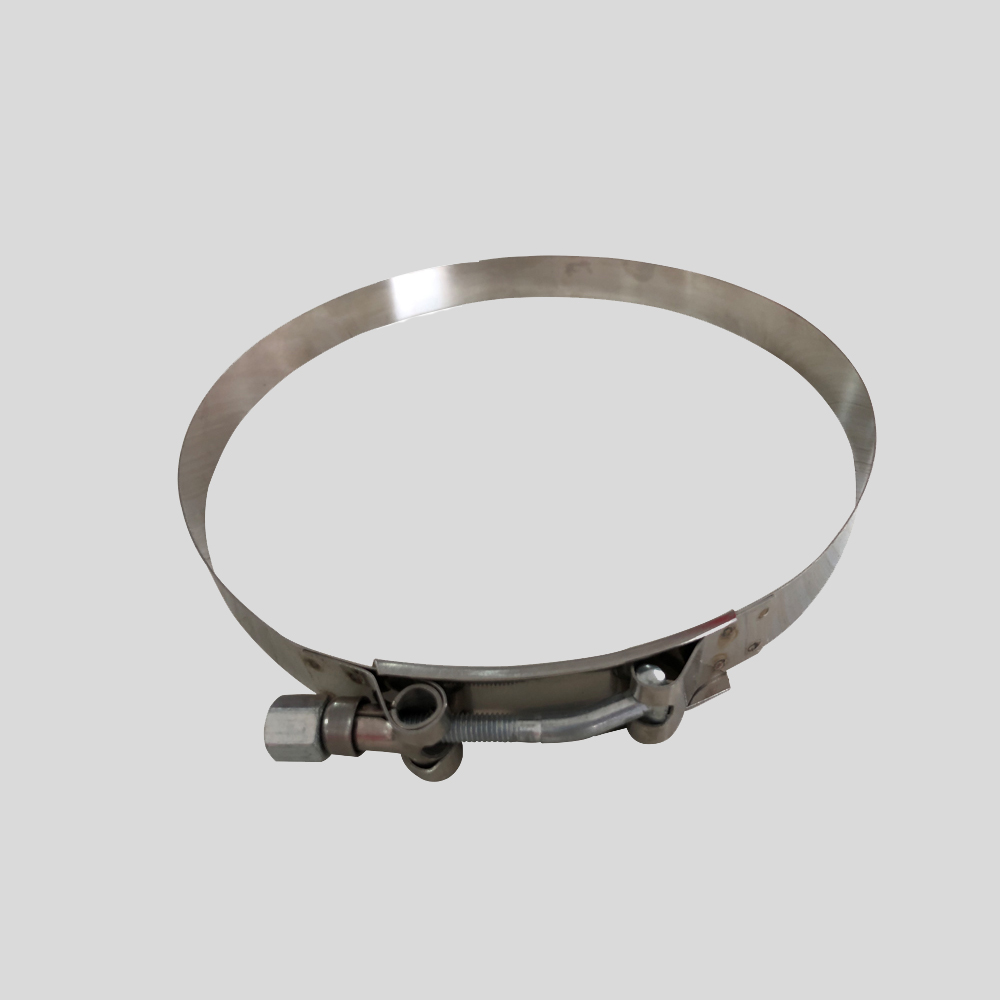

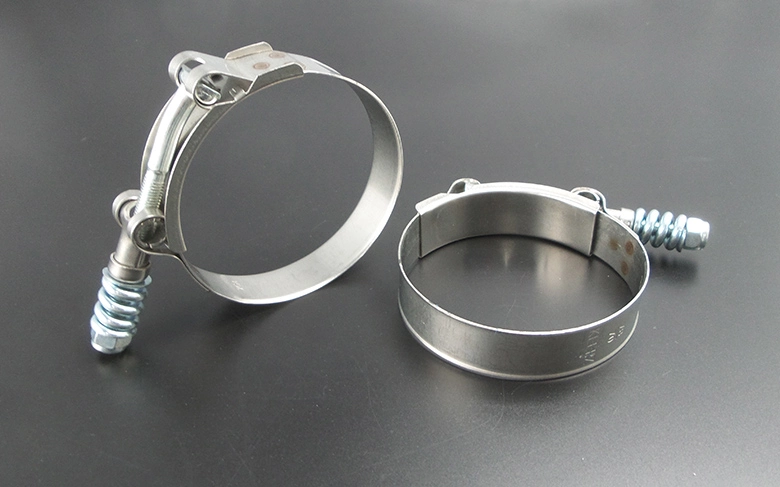

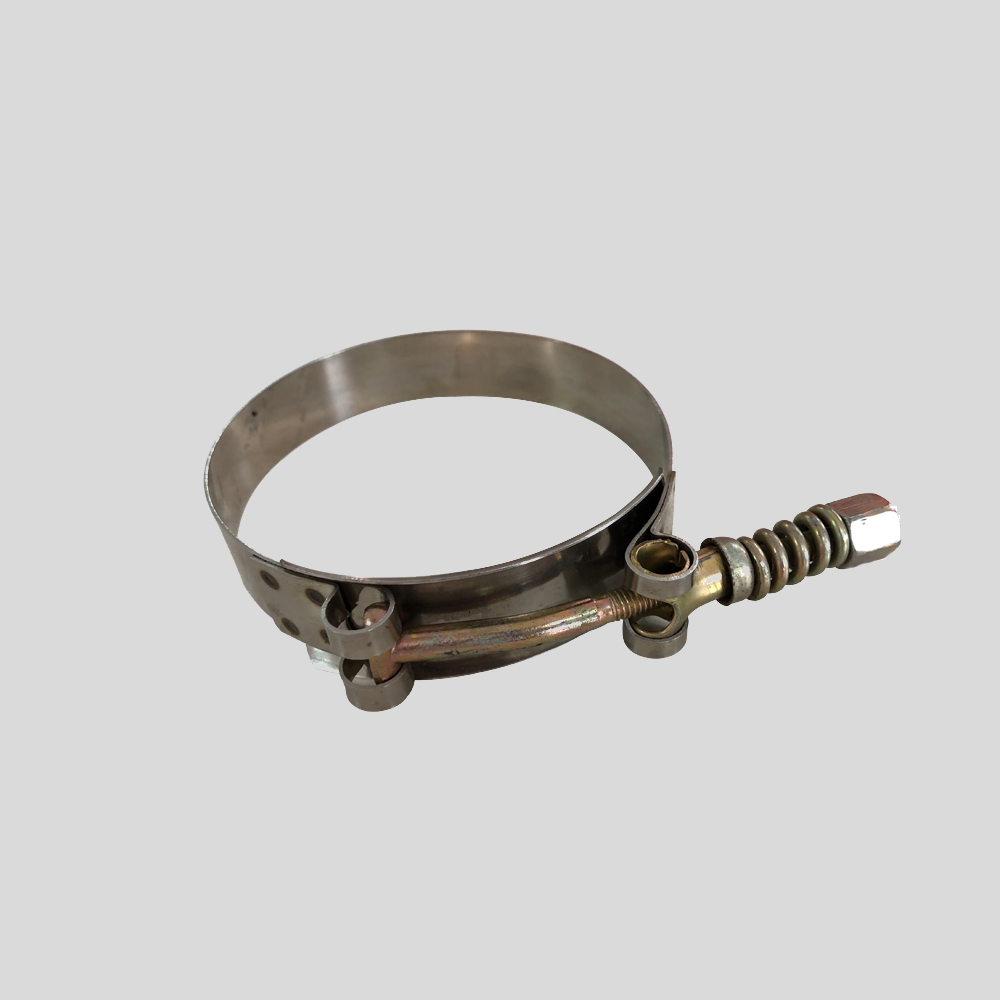

China supplier SS304/316 constant tension spring T bolt automotive stainless steel hose clamp price
Payment Terms: TT or LC
Ref Price : 0.01-10 USD/PIECE
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Place of Origin：Tianjin, China
-
Brand Name：Shunfa Trade
-
Usage：Pipe Clamp
-
Material：Stainless Steel
-
Structure：Spring Clamp
-
Product name：Hose clamps
-
Materials：W1,W2,W3
-
Size：6mm-34mm Band Width:9mm or as client's requirements.
-
Applicatio：Pipe connection
-
Standard：AISI,ASTM,BS,DIM,GB,JIS

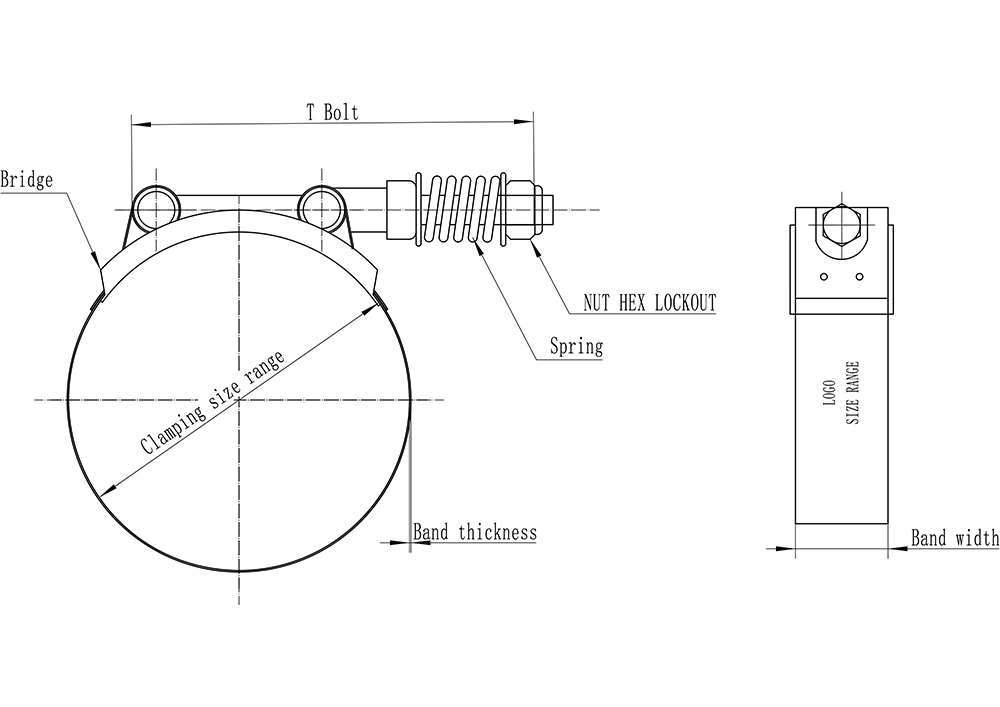

Product Description
|
Material Grade Choice |
All parts: SS 301 / 304 |
|
Bands and Bridge: SS 301 / 304, T bolt & nut: Zince Plated carbon Steel |
|
|
All parts: SS 201 / 202 |
|
|
Bands and Bridge: SS 201 / 202, T bolt & nut: Zince Plated carbon Steel |
|
|
Band Width |
19mm( 0.75") |
|
Band thickness |
0.6mm |
|
Nut |
Hex Nut 10mm Lock out with nylon ring |
|
Hex Nut 11mm Lock out with nylon ring |
|
|
Bolt Size |
M6 |
|
1/4-28 UNF |
|
|
T bolt Length |
60/75/85 mm |
|
Max Installation Torque |
75 Ib in 9 N.m |
|
Standard |
SAE J1508 |
|
Part Number |
Clamping Size Range |
GT Hose Fitted |
|
|
mm |
mm |
in |
|
|
TBC31-36 |
31-36 |
25 |
1 |
|
TBC34-39 |
34-39 |
28 |
1 1/8 |
|
TBC39-44 |
39-44 |
32 |
1 1/4 |
|
TBC41-46 |
41-46 |
35 |
1 3/8 |
|
TBC44-52 |
44-52 |
38 |
1 1/2 |
|
TBC44-52 |
44-52 |
41 |
1 5/8 |
|
TBC50-58 |
50-58 |
45 |
1 3/4 |
|
TBC53-61 |
53-61 |
48 |
1 7/8 |
|
TBC57-65 |
57-65 |
51 |
2 |
|
TBC59-67 |
59-67 |
54 |
2 1/8 |
|
TBC63-71 |
63-71 |
57 |
2 1/4 |
|
TBC64-72 |
64-72 |
60 |
2 3/8 |
|
TBC70-78 |
70-78 |
63 |
2 1/2 |
|
TBC72-80 |
72-80 |
67 |
2 5/8 |
|
TBC77-85 |
77-85 |
70 |
2 3/4 |
|
TBC83-91 |
83-91 |
76 |
3 |
|
TBC85-93 |
85-93 |
80 |
3 1/8 |
|
TBC90-98 |
90-98 |
83 |
3 1/4 |
|
TBC95-103 |
95-103 |
89 |
3 1/2 |
|
TBC102-110 |
102-110 |
95 |
3 3/4 |
|
TBC110-118 |
110-118 |
102 |
4 |
|
TBC121-129 |
121-129 |
115 |
4 1/2 |
|
TBC134-142 |
134-142 |
127 |
5 |
|
TBC146-154 |
146-154 |
140 |
5 1/2 |
|
TBC159-167 |
159-167 |
152 |
6 |
|
TBC184-192 |
184-192 |
||
|
Material Grade Choice |
All parts: SS 301 / 304 |
|
Bands and Bridge: SS 301 / 304, T bolt & nut: Zince Plated carbon Steel |
|
|
All parts: SS 201 / 202 |
|
|
Bands and Bridge: SS 201 / 202, T bolt & nut: Zince Plated carbon Steel |
|
|
Material remarks: |
Spring is generally made of High carbon steel unless requirement is specified |
|
Band Width |
19mm( 0.75") rounded band edges protect soft hose materials |
|
Band thickness |
0.6mm |
|
Nut |
Hex Nut 11mm, Lock out with nylon ring |
|
Bolt Size |
1/4-28 UNF |
|
T bolt Length |
90 mm |
|
Max Installation Torque |
75 Ib in 9 N.m |
|
Standard |
SAE J1508 |
Related Products

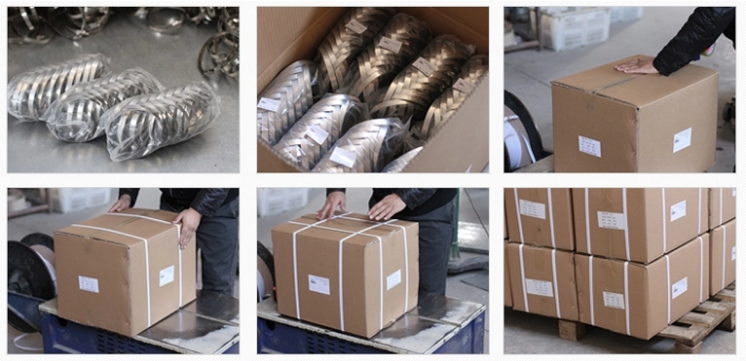

Packing & Shipping
1.INNER PACKING: 1piece/neutral polybag:
2.OUTER PACKING: Dozens /neutral cardboard box.
3.GROSS WEIGHT/OUTER CARTON: <25KG
4.OUTER CARTON SIZES AVAILABLE: 55x47x45, 55X47X30, 47X36X30, 38X38X38, 102X36X30(CM)
5.STANDARD SHIPPING MARKS: Front Marks and Side Marks on each outer carton or pallet, content includes Part Code, Part Name, QTY, Net Weight, Gross Weight, Carton Size, and Carton Number.
6.We are also ready to serve needs of customized packing if required, such as color polybag, color boxes, label stickers, and pallet packing(Non fumigation pallets, or timber pallet with treatment certificate), Outer carton and pallets can be film wrapped for purpose of water proof in case unexpected shipping condition encountered
Tianjin Shunfa Universal Clamp Co.,Ltd was founded in 2002. The manufacture covers an area of 340,000 square meters, with a construction area of 250,000 square meters and 1000 employees.The company has great experience in the clamp production industry. Years of technology and quality assurance have enabled us to have a broad customer base in the globle market.
The company's main products are: stainless steel clamp standard parts and non-standard, stainless steel hose clamps, rubber and other products, and exported to Asia, Africa, Europe, the Middle East, the Amerias, and many parts of the world.
We have a first-class technology research and development demand that we provide our customers with the best quality products and services.We sincerely hope to establish long-term trade links with customers from all over the world. If you know more about our company, please contact :shunfa@sino-sources.com
Shunfa Universal Clamp main produce various specifications hose clamp,commit to provide best quality hose clamps products for overseas users.
