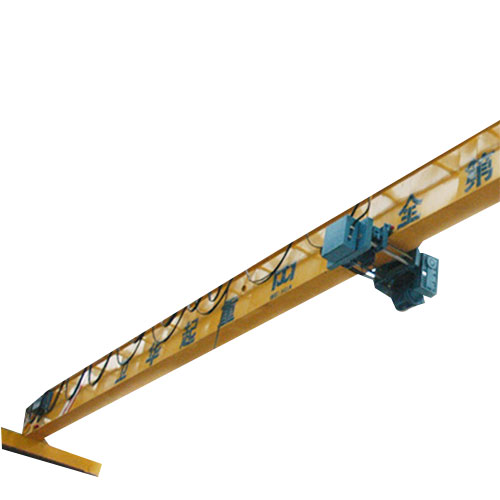

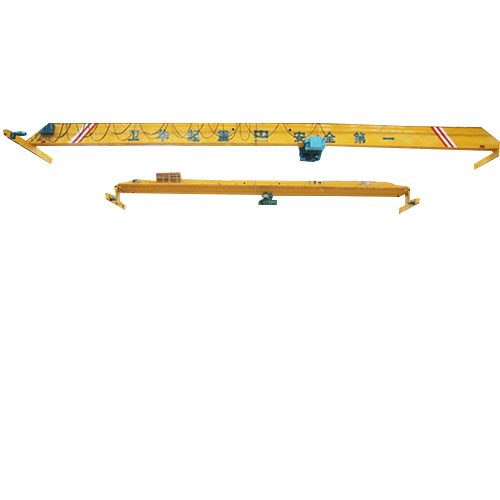

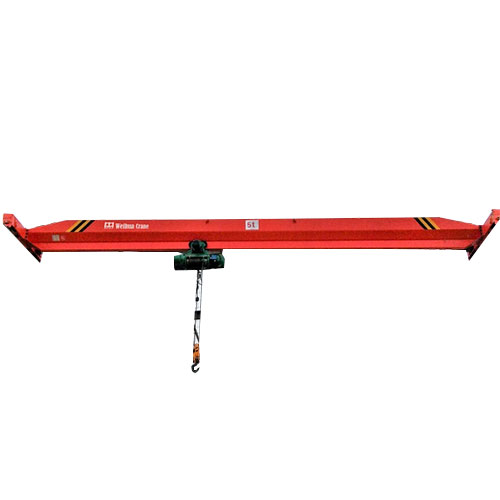

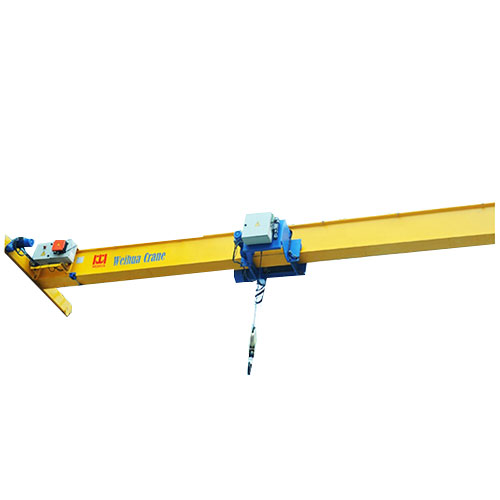

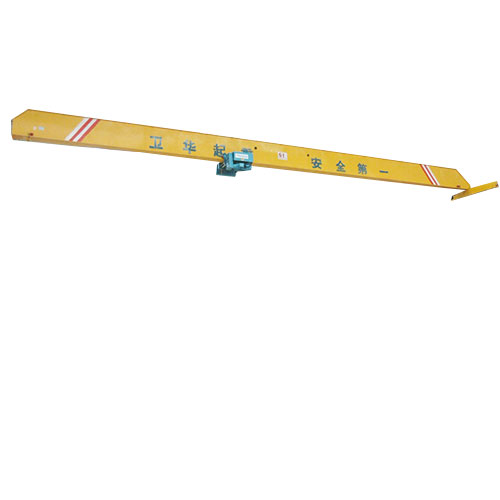

Brife description Lifting Weight: 1t-20t Span: 7.5m-28.5m or other Lifting Height: 6m-30m

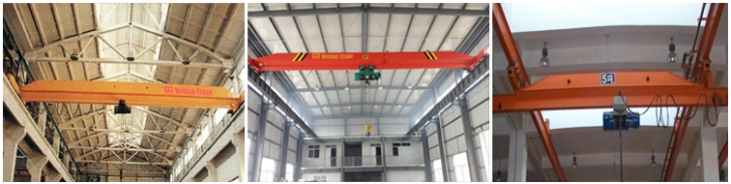

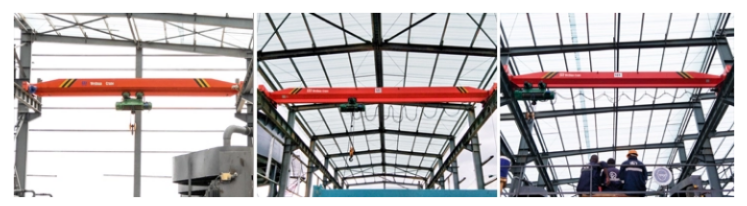

Features: 1.It is used for lifting 1t~20t stuff and the max. span reaches 28.5 meters; 2.It has beautiful box-type welded main girders; 3.It has compact structure, light dead weight and high lifting height; 4.It's widely used in workshops, warehouses, assembly shops, and etc.
Mechanism : 1. Carbon steel Q235B and Q345B; 2. the girder is connected by high strength screws; 3. Welding seams are tested by X-ray and ultrasound;
4. Main girders Shot blasting sa2.5 after welding to release internal stresses;
5. Epoxy zinc-rich primer, and the thickness of oil film is 140μm; 6. Forged wheels, hardened gears and reliable disc brake
7. Compact reducer motor drive, stepless control; 8. Compact structure, small volume and light weight trolley; 9. Good operation performance, stepless speed regulating and running smoothly;
1. Reasonable components installation, convenient for check and maintenance;
2. Electric cable is suspended in cable saddle, stationary cable trolley which slides on a galvanized C-type steel;
3. Power supply through stepless slide lines; 4. Lifting mechanisms and traveling mechanisms are mutually independent and could travel at the same time; 5. Control panel protection degree is IP54; Safety Protection Devices: Overload limiter, limit switch (lifting and traveling), interlocking protection devices, buffer, track sweep plate, shield, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.
lifting capacity (ton)
lifting height (m)
