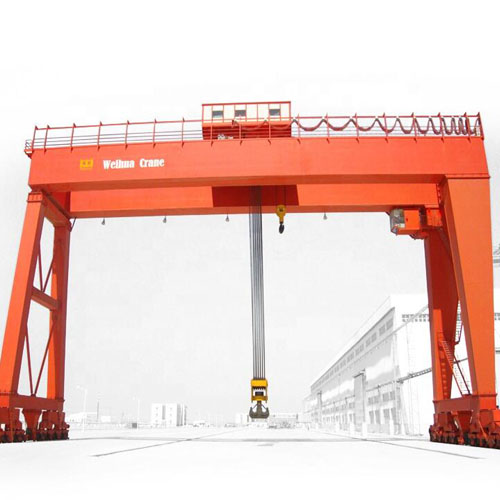

China Top100 Manufacturer WEIHUA 20t Double Girder Gantry Crane Price

Please enter your email.

cancel

Henan Weihua crane Co Ltd

lv1 shield

lv1 shield
< >

China Top100 Manufacturer WEIHUA 20t Double Girder Gantry Crane Price

Payment Terms: TT or LC

Ref Price : 3000-50000 USD/SET

Supply Capability : 50000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Max. Lifting Height：
    6m
  • Span：
    10-20m
  • Warranty：
    2 Years
  • After-sales Service：
    Field maintenance and repair service, Engineers available to service
  • Feature：
    Gantry Crane
  • Condition：
    New
  • Application：
    Outdoor;Workshop;Plant
  • Rated Loading capacity：
    20t
  • Rated Lifting Moment：
    can customized
  • Place of Origin：
    Henan, China (Mainland)
  • Brand Name：
    WEIHUA CRANE
  • Certification：
    ISO CE SGS GOST
  • Features：
    20t gantry crane
  • Lifting mechanism：
    Electric Hoist or trolley
  • Power Source：
    3 Phase 380V 50hz or required by customered
  • Control Method：
    Remote or pendent control on ground
  • Color：
    Yellow or required by customered
  • Safety Devices：
    Included
  • Quality Assurance：
    Can accept return goods if any quality problem

Brife description of 20t Double Girder gantry crane
1.Lifting capacity:30-50 tons
2.Lifting height:30-40m
3.Span:23m,27m
4.Working Level: A6, A7, A8

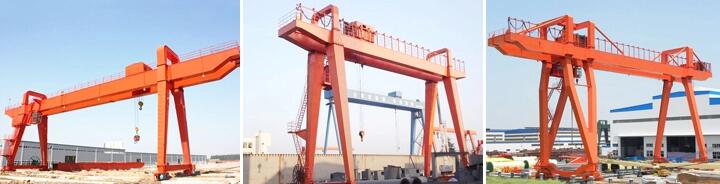

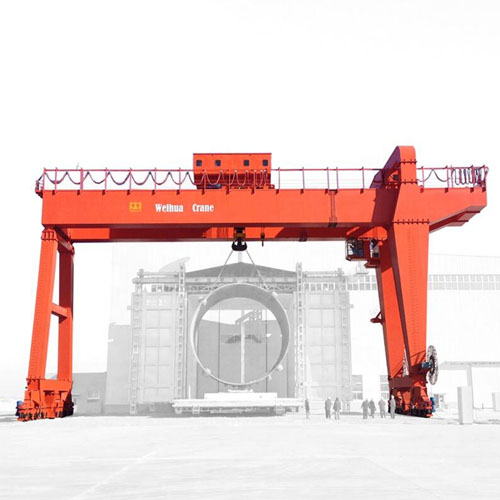

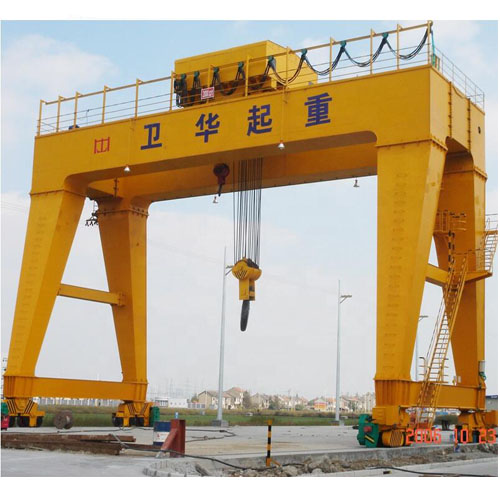

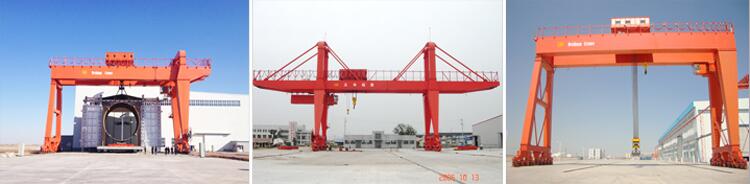

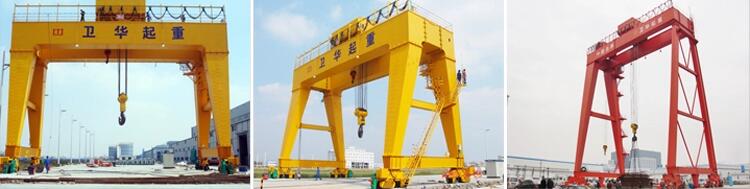

Product Description:

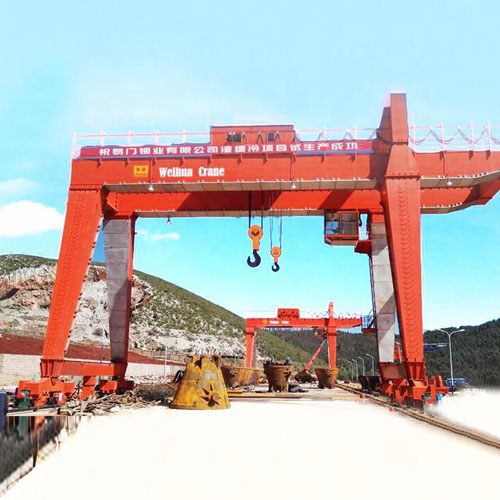

Double girder gantry crane is one kind of heavy duty lifting machinery. It is the ideal lifing equipment in factories, mines, agriculture, electric power, construction building site, dock and warehouse for installation of the machines, lifting the cargos, loading and unloading the trucks. The MG model double girder gantry crane 50 ton is suitable for general loading, unloading and moving works in outdoor storage.

Advantages:

1.compact structure, resonable layout, safe reliability;
2.convenient maintenance, excellent swivelling function advantages.

Features:
1. It is used for lifting 5t~800t stuff;
2. It has beautiful box-typed welded main girders. Computer optimized design for main girders with good performance and light weight;
3. Compact structure, light weight and high lifting height;
4. The Max. span reaches 35 meters;
5. It's widely used in workshops, metallurgy, warehouses and assembly shops etc.

Mechanism :

1. High quality carbon steel Q235B and Q345B;

2. connected by high strength screws;
3. Welding seams are tested by X-ray and ultrasound;
4. Compact structure, small volume;
5. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
6. Good operation performance, step less speed regulating and running smoothly;
7. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μm;



Technical Data and test:


capacity (t) span (m) lifting height (m) working duty main hois speed (m/min) aux. hoist speed (m/min) crane travel speed (m/min) long travel speed (m/min) rail total power (KW)
10 18~35 10 A5 0.8~7.8 / 3.3~33 3~30 43kg/m 21.74
20/5 18~32 10 A5 0.6~6 0.78~7.8 3.5~35 3~30 43kg/m 39.
32/5 18~26 10 A5 0.5~5.2 0.78~7.8 3.1~31 3~30 43kg/m 59

26~35 12 A5





50/10 18~26 10 A5 0.4~3.9 0.78~7.8 3.6~36 3~30 43kg/m 71.4

26~35 12 A5





75~800 Customize

Notes:The foregoing attached table shall only be used for reference. The actual application shall be appropriately modified according to customers' requirements.

Customer Visit:

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
