Shandong Mountain Raise Heavy Industry Machinery Co Ltd

chinese articulated high quality cheap backhoe loader for sale

Payment Terms: TT or LC

Ref Price : 28000-30000 USD/TON

Supply Capability : 30 PIECE

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

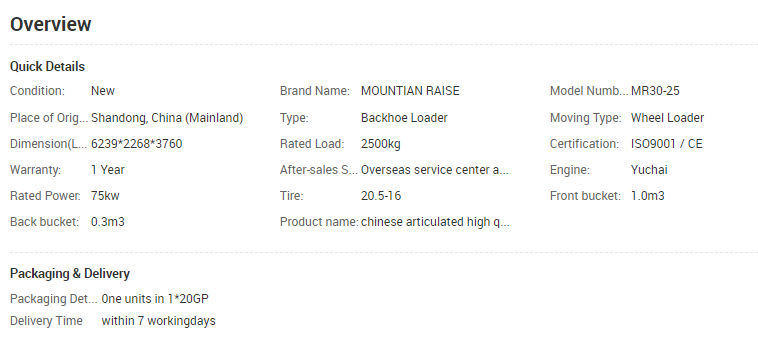

Qulck Details

  • Outer Diameter:
    25 - 356 mm





chinese mini backhoe loader price mini wheel loader  for sale

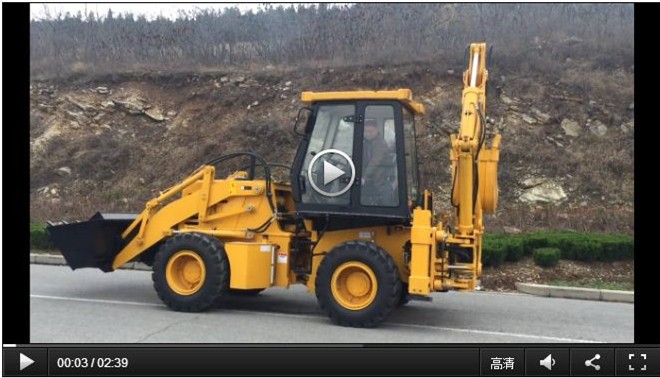

WORKING VIDEO

 chinese articulated high quality cheap backhoe loader for sale

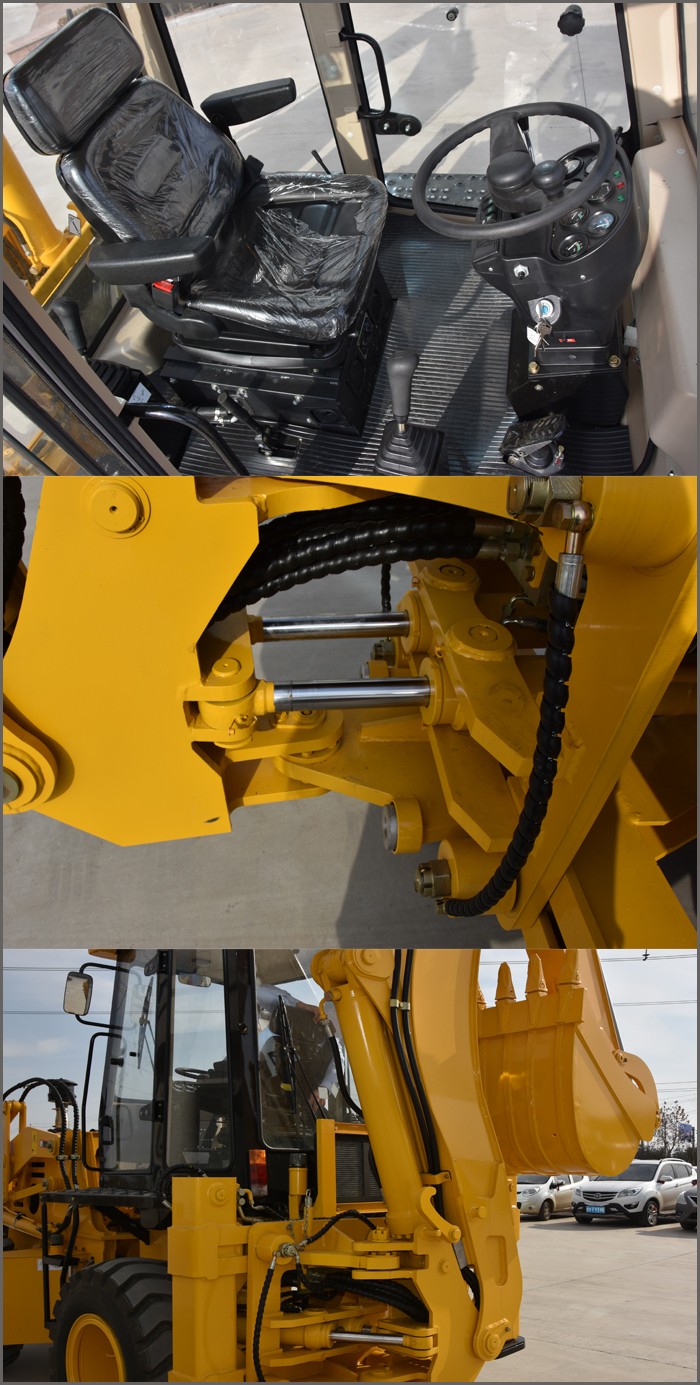

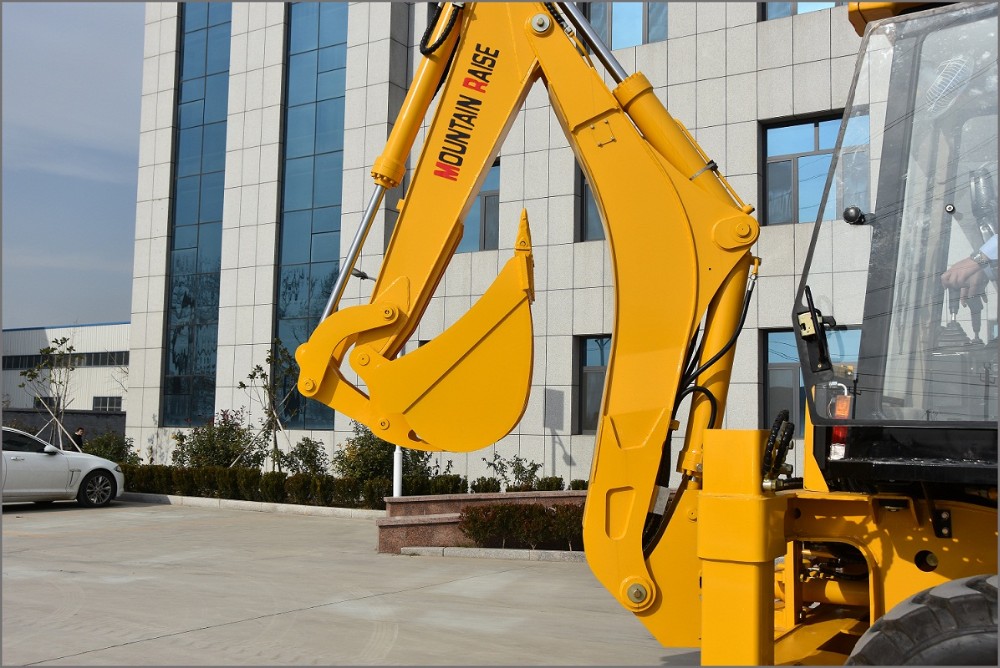

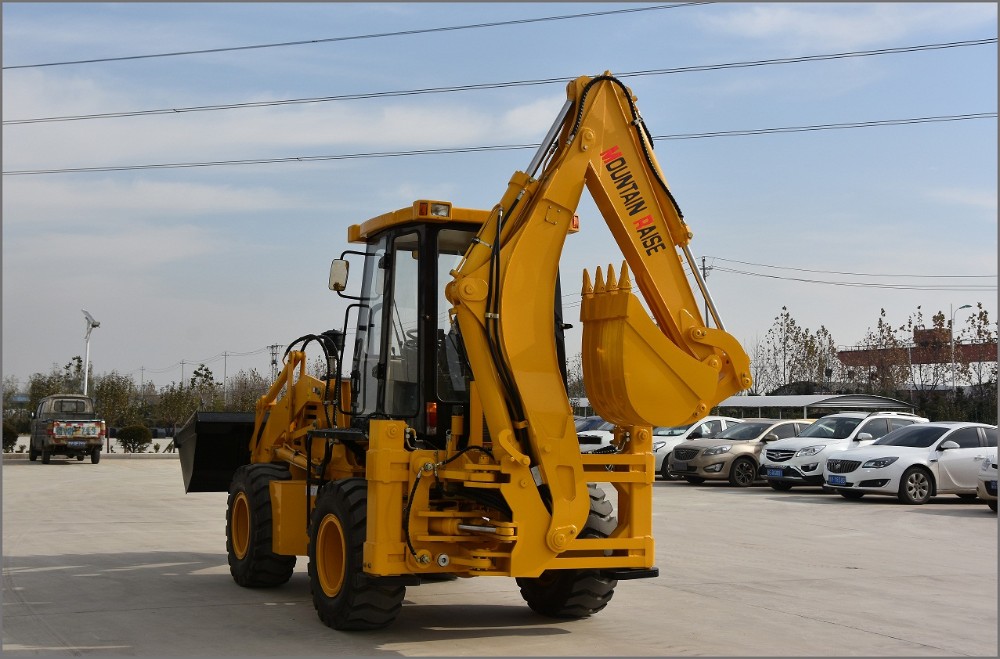

PRODUCT DETAIL

chinese articulated high quality cheap backhoe loader for salechinese articulated high quality cheap backhoe loader for salechinese articulated high quality cheap backhoe loader for sale


chinese articulated high quality cheap backhoe loader for sale

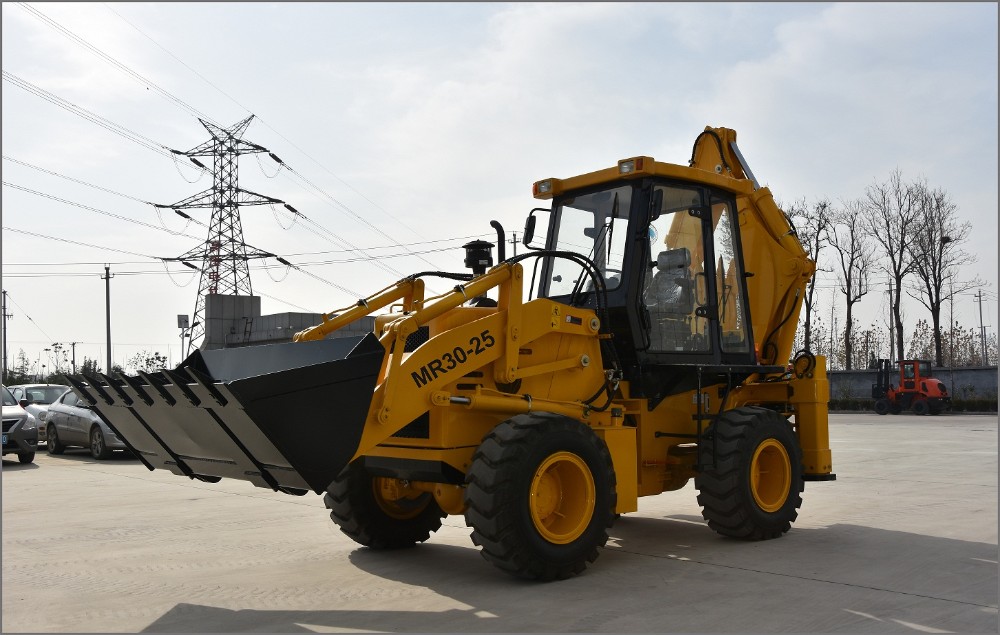

MR30-25 Backhoe Loader Parameter

Operating Weight

7640kg

Final Reducer

Single Stage Final Reducer

Overall Dimension  (L*W*H)

5910*2268*3760mm

Rated Loader of Axle

7.5t



TRANSMISSION SYSTEM

Wheel base

2250mm

TORQUE CONVERTER

Min. Ground Clearance

300mm

Model

YJ280

Bucket Capacity

1.0 m3

Type

Single-stage Three Elements

Breakout Force

38KN

Max. Efficiency

84.40%

Loading lifting Capacity

2500kg

Inlet Pressure

0.4Mpa-0.55Mpa

Bucket Dumping Height

2742mm

Outlet Pressure

1.2Mpa-1.5Mpa

Bucket Dumping Distance

1062mm

Cooling Method

Oil-cooling Pressure Circulation

Digging Depth

52mm

GEARBOX

Backhoe Capacity

0.3 m3

Type

Fixed Shaft Power Transmission

Max. Digging Depth

4082mm

Oil Pressure of Clutch

1373Kpa-1569Kpa

Swing Angle of Excavator Grab

190o

Gears

Two Gear Ahead, Two Gears Astern

Max. Pulling Force

39KN

Max. Speed

22Km/h

ENGINE

TYRE

Model

YTR4108

Model

16/70-20

Type

in line direct injection,four stroke,injection combustion chamber

Pressure of front wheel

0.22Mpa



Pressure of Rear wheel

0.22Mpa

Cylinder-Inside Diameter-Stroke

4-108*120

BRAKE SYSTEM

Rated Power

75kw

Service Brake

 Air Over Oil Caliper Brake

Rated Speed

2400r/min


External Type

Min.Fuel Consumotion

216g/km.h


Self-regulation

Max. Torque

261.7N.M/1800r/min


Self -balance

Displacement

4.4L

Emergency Brake

Operation Power Implementing brake

STEERING SYSTEM


Manual Operation Power Terminating Brake

Model of Steering Device

BZZ5-250

HYDRAULIC SYSTEM

Steering Angle

±36 o

Digging Power of Excavator Grab

46.5KN

Min. Turining Radius

5018mm

Digging Power of Dipper

31KN

Pressure of the System

12Mpa

Bucket lifting Time

5.4s

AXLE

Bucket Lowering Time

3.1s

Manufacturer

Feicheng Axle Factory

Bucket DischargeTime

2.0s

Main Transmission Type

Double Reduction



FACTORY SHOW

chinese articulated high quality cheap backhoe loader for sale

1).Warranty: Mountain Raise grant our clients 12 month (2000 hours)warranty.

2).Spare Parts: Mountain Raise dedicated to provide genuine spare part with high quality, fast delivery and good service

3).Training: Mountain Raise can provide perfect factory and comfortable envenroment to provide training for our clients and different users. including product training, operation training,maintenance training,technical training.

4). After-sale Service : we are on line 24 hours,engineers solve your problem in 8 hours

chinese articulated high quality cheap backhoe loader for sale





Packaging & Shipping



Popular Chinese mini backhoe digger and front loader with prices for sale



About our factory

Factory Introduction

Popular Chinese mini backhoe digger and front loader with prices for sale




Our Services

Popular Chinese mini backhoe digger and front loader with prices for sale



Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years

Production and exporting experience. Now our products can be found working in more than 40 countries.

Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which

passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc

Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as

our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.

We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
