Chinese Manufacturer Weihua Auto Smart Non-Avoidance Stereo Parking Equipment Price

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 300 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Certification：
    CE, ISO
  • Lift Mode：
    Carrier Board
  • Voltage：
    Design
  • Car Quantity：
    up to 6
  • Max Time for Take out Car：
    No More Than 70 Seconds
  • Control Method：
    PLC
  • PLC：
    Schneider
  • Parking Vehicles：
    SUV+Sedan
  • Noise：
    No More Than 60 dB
  • Color：
    Orange, Yellow, Red or Design
  • Drive Mode：
    Motor + Gearbox
  • Application：
    Shopping Mall, Hospital
  • Trademark：
    WEIHUA
  • Transport Package：
    Plywood Box/Plastic Clothes
  • Specification：
    5.5m*5.85m*3.8m
  • Origin：
    Henan, China
  • HS Code：
    8426112000

Description



PJS Non-avoidance Stereo Parking Equipment Technical Parameters (2 layers)
Car Quantity 4
Occupy Space L*W*H=5500mm*5850mm*3800
Max Time for Take Out Car  No more than 70 seconds
Operation Interface Automatic Identification+Remote Control or App+Put Button
Control Method PLC Control ( Schneider )
Service Time More than 30 years, and more than 40 years after enhancing corrosion protection
Power Supply 3 Phase 380V 50Hz or Design


Brief Introduction

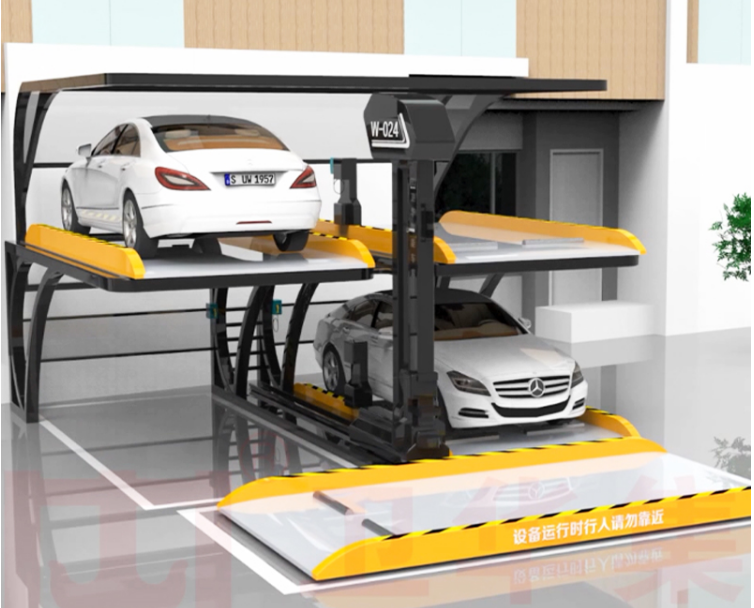

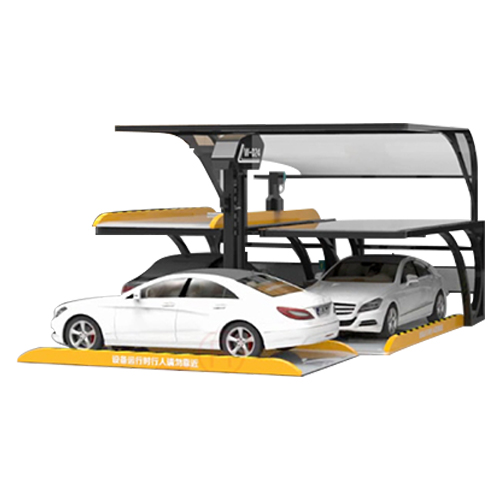

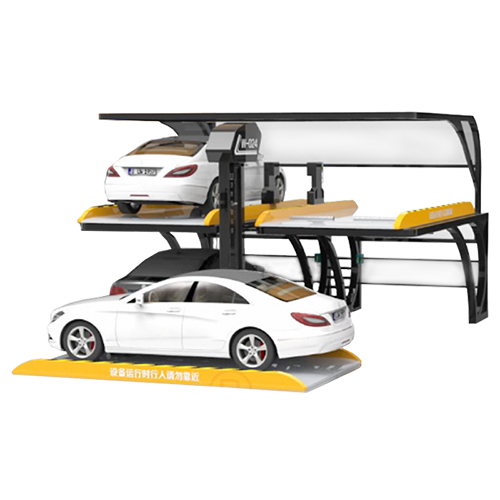

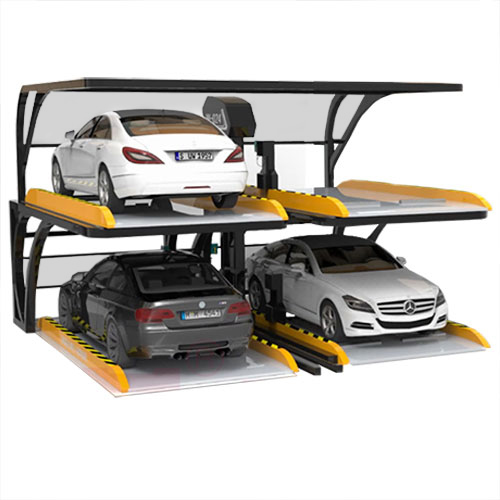

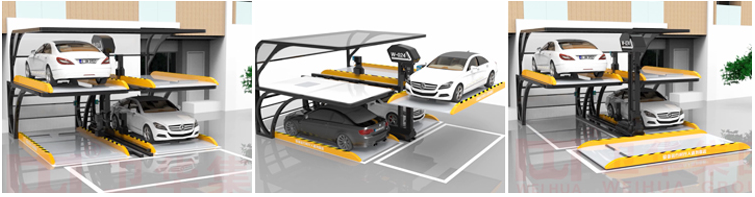

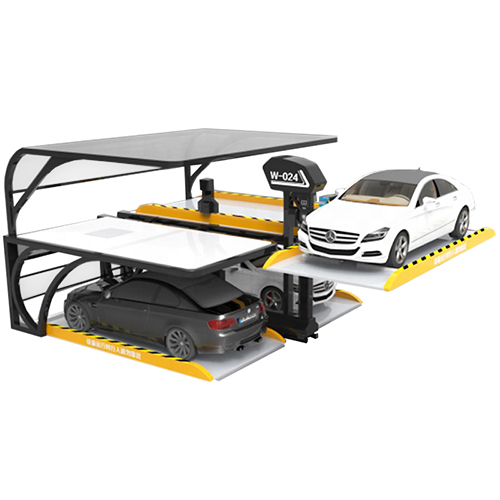

This non-avoidance stereo parking equipment is mainly composed of intelligent lifting&transferring machine, charging carrier board, track, main frame, control system and safety protection devices, etc.

Each unit occupies 2 parking spaces and supply for 4 cars to park. It only takes no more than 70 seconds to park or fetch your car.

There is no site restrictions for installing this equipment. It can be widely used in large hotels, shopping mall, supermarkets, office building, government agencies and residential area, and can be installed in the original ground and underground parking spaces.

Characteristics:

1, Beautiful exterior Design with the idea of Simple and Beauty, this parking system could be in harmony with the surrounding environment.

2, Easy to install With modular design components, it’s easy to install in the original ground. And one by one, it can form a large parking system.

3, Intelligent and convenient A simple app or remote controller to reduce time for parking or fetching cars. Positive drive in and out greatly reduce the difficulty for drivers.

4, Reliable safety performance International famous brand PLC and electrical components, and anti-drop device, power-off self-locking protection, sound and light alarm, power overload, pedestrian entry protection, and automatic positioning, etc.

5, Low cost Doubling land utilization, reduce investment of users.

6, Environmental protection Running smoothly and low noise, no more than 60db. Low energy consumption, each operation consumes only 0.07 KWH.

7, Design for new energy electric cars Each unit could equip a charging device for electric cars to charge while parking. ,

8, Intelligent management platform Mobile App+Big Data+Cloud Platform to achieve remote monitoring, parking space navigation, parking reservation, non-inductive payment, and data statistical analysis.

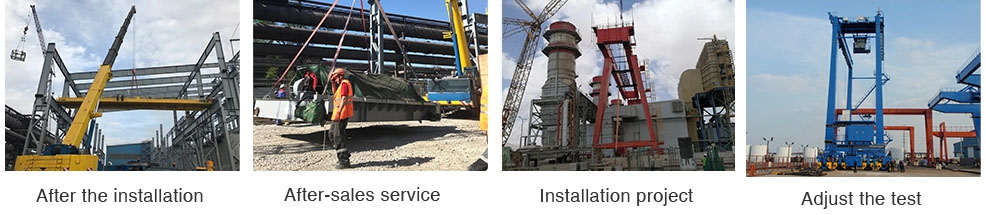

Installation & Service

Customer Visiting

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
