Cold insulation foam glass board /foam glass price

Payment Terms: TT or LC

Ref Price : 1-10 USD/CUBIC METERS

Supply Capability : 10000 TON

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    China (Mainland)
  • Type:
    Other Heat Insulation Materials
  • Product Name:
    Foam Glass
  • Application:
    Thermal or Cold Insulation for Construction
  • Density:
    120-225kg/m3
  • Normal Size:
    620*460mm/ 620*470mm
  • Thickness:
    30-230mm
  • Working Temperature:
    -120~+450℃
  • Certificate:
    CE ISO

Product Detail

Foam glass is a new inorganic thermal insulation material with a structure of even inclosed cells. Mainly made from glass powder and well reserves the chemical stability of inorganic glass, foam glass thereby possess the following features of low density, low thermal conductivity, non- aging, high durability.



For now, foam glass has been widely applied in the fields of petroleum, chemical industry, construction, transportation, cold storage, underground engineering, etc. With advantages of having same duration with buildings as well as being environmental friendly and recyclable, foam glass is now recognized as the ideal energy-efficient insulation material for future construction.



Sinotech Machinery Co., Ltd is one of the top three foam glass manufacturers in China. Integratedwith design, production and research, as well as in the possession of the national most advanced

foam glass production line and producing process with independent intellectual property, our Sinotech group can produce various standard and special sized foam glass according to customer’s requirement.

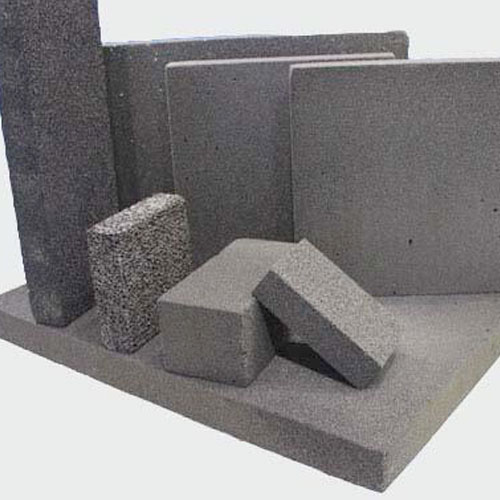

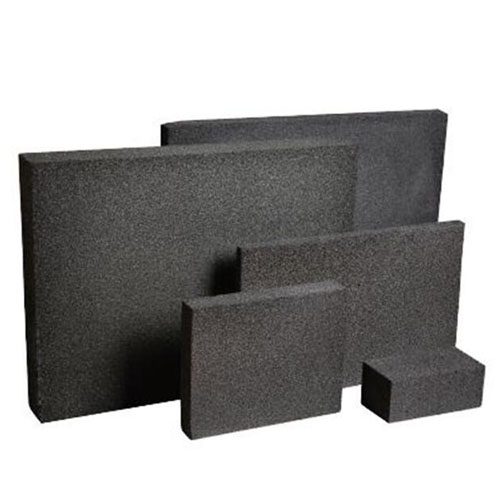

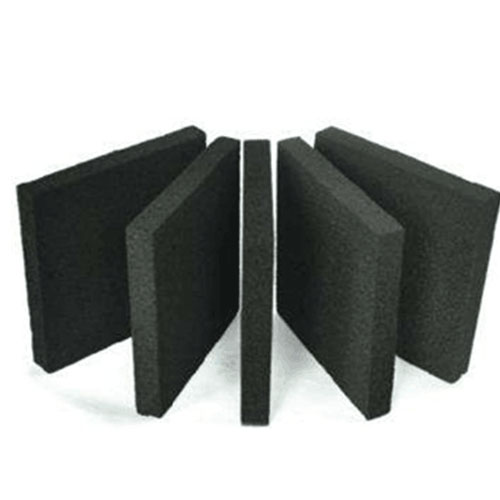

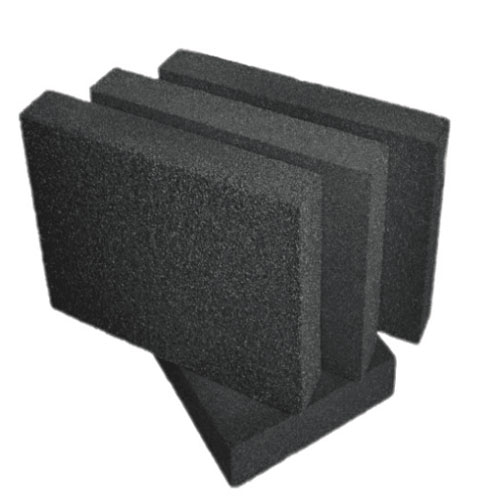

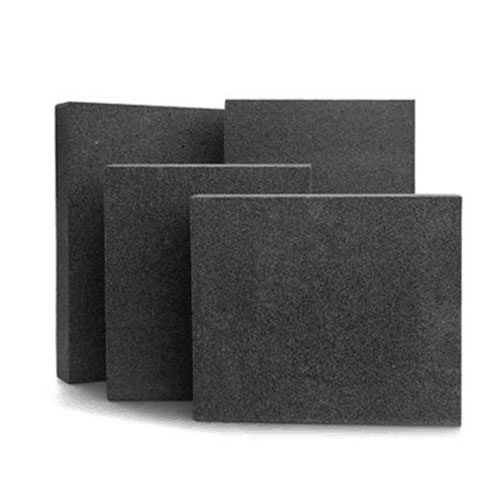

Product Show


Item

Unit




Average Density

kg/m3

120±8

130±8

≤180

Thermal Conductivity

W/m.K

≤0.043 (10℃)

≤0.0427 (10℃)

≤0.052 (25℃)

Compressive Strength

KPa

≥415

≥415

≥700

Water Absorption

Vol %

≤0.5

≤0.5

≤0.5

Working Temperature

-200 ~ +450

-200 ~ +450

-200 ~ +450

Lineal Thermal Expansion Coefficient

1/°C

9×10-6

9×10-6

9×10-6

Size

mm

620*460*(30-150);            620*470*(30-150);

460*300*(30-150);            470*300*(30-150)

Feature

1. Low desnsity, low thermal conductivity but high compressive strength
2. No water absorption, no permeability
3. Low thermal expansion coefficient, no deformation, no crack
4. Incombustible and corrosion resistance
5. No mildew, no rat biting, no aging and no deterioration
6. Having the same duration with buildings
7. Environmental friendly and recyclable.

Application Field

Low-temperature pipeline, vessel, equipment and tanks (for storage);

Low-temperature system for hydrocarbon processing;

Refrigerated warehouse and construction;

Low-temperature insulated system for pharmaceutical Industry;

Steel storage tanks and pipes for liquid oxygen and nitrogen;

Underground system and cooling water pipes;

Anti-corrosion lining system inside chimney;

Offshore oil platform;

Circulation and dual temperature system;

Insulation for exterior & interior walls and roofs;

Moistureproof and fireproof isolation for buildings and tunnels;

Sound absorption for any compressor and engine plant.
