Dealer Electric Motor Vertical Car Parking System Made In China Factory

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 200 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Type:
    Parking Lift
  • Place of Origin:
    Henan, China (Mainland)
  • Brand Name:
  • Model Number:
  • Warranty:
    1 Year
  • Loading Capacity:
  • Product Name:
    Vertical Car Parking System
  • Occupy Space:
  • Equipment Total Height:
  • Equipment Total Weight:
  • Car Quantity:
  • Motor Power:
  • Cycle Speed:
  • Max Time for Take Out Car:
  • Frame Structure:
    Column Square Cube
  • Control Method:
    PLC Control

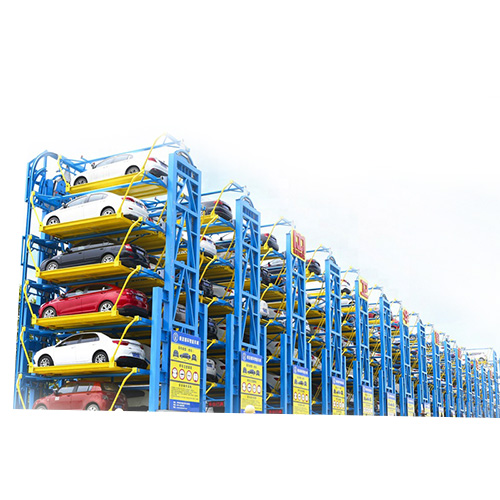

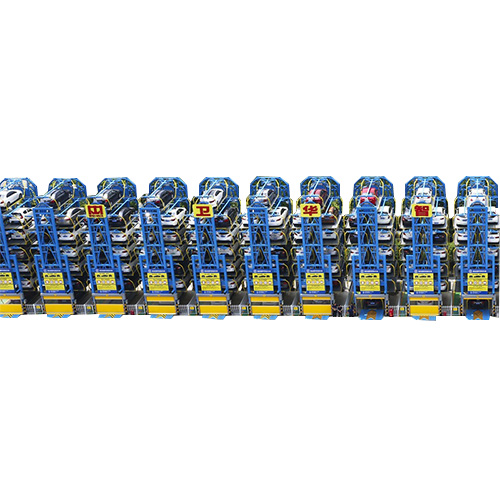

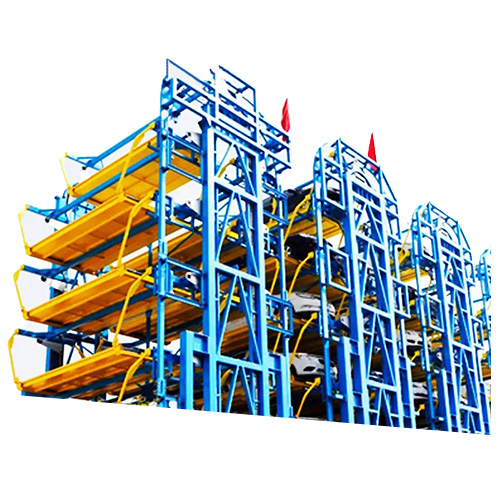

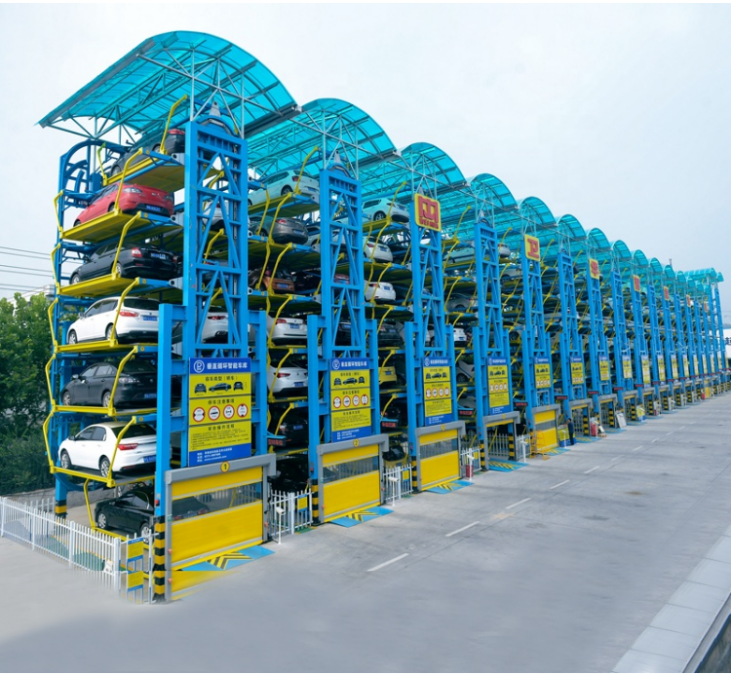

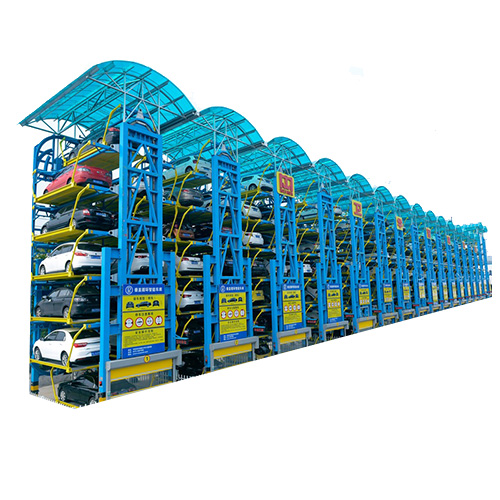

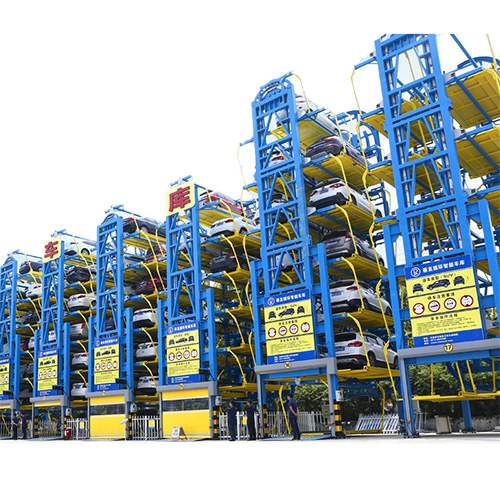

This Vertical Car Parking System mainly consists of main steel structure, plate structure, transmission system, control system, and safety protection device. The main structure is internally provided with a fixed guide rail, the lifting chain roller runs in the guide rail, and the carriage plate is suspended on the extended plate of the lifting chain. During operation, the car is parked inside the carriage board, and the chain drive system drives the carriage board for circulation running in the vertical direction. When the carriage board runs to the lowest end, the vehicle can be accessed.

Features and Advantages of Vertical Car Parking System:

1. 2 parking spaces for 12 cars, maximized utilization rate of available space;

2. Takes average 70 seconds and up to 120 seconds to park or take your car, the vacancy plate is always at the lowest floor, efficient and convenient;

3. Automatic control, PLC, Frequency Control, less impact to equipment;

4. Use alone or in combination;

5. Simple operation, 4 ways to use it, card, buttons, remote control, mobile phone, App, etc.

6. Safe and reliable, If people approach, the equipment will automatically stop running;

7. Economical, short construction period, less consumption, green, nice appearance;

8. Quick installation and removal;

9. Stable and durable, main PLC and electrical components are from Siemens, Schneider, Omron;

10. Weihua Smart Garage adopts advanced parametric design methods such as 3D CAD and CAE.

Technical Parameters

PCX8D-16D(Sedan)Cars Vertical Rotary Parking Equipment Technical Parameters
Item Name Technical Parameter and Instruction
Model PCX-8D PCX-10D PCX-12D PCX-14D PCS-16D
Car Dimension  L*W*H=5300mm*1850mm*1600mm
Car Weight  1.8t 1.8t 1.8t 1.8t 1.8t
Occupy Space 6.5m*5.5m 6.5m*5.5m 6.5m*5.5m 6.5m*5.5m 6.5m*5.5m
Equipment Total Height 9.7m 11.58m 13.51m 15.44m 17.3m
Equipment Total Weight 15.3t 19.4t 23.64t 29t 33.56t
Car Quantity 8 10 12 14 16
Motor Power 7.5KW 7.5KW 9.2KW 11KW 15KW
Cycle Speed 4.4m/min 4.4m/min 4.4m/min 5.5m/min 5.5m/min
Max Time for Take Out Car  87s 120s 135s 145s 148s


After-Sales Service
Our after-sales service provide:
1. 14 months warranty when products leave the factory, or 12 months warranty after installation
and commissioning expect the human damage factors.
2. 2 years spare-parts provided for better maintenance.
3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product certification and other relevant certificates.
5. Technical advisory for any time and Engineers available to service machinery overseas.

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.

The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.

Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.

In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.

Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.

Our success comes from customers' success. Welcome to Weihua.
