Distributor 10 ton Light Duty Hoist Crane With Best Price

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 60000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Crane feature:
    10 ton Light Duty Hoist Bridge Crane with Best Price
  • Place of Origin:
    Henan, China (Mainland)
  • Condition:
    New
  • Rated Lifting Moment:
    According to the lifting weight
  • Max. Lifting Load:
    32 ton
  • Max. Lifting Height:
    6m~30m
  • Span:
    7.5-22.5m
  • Warranty:
    2 Years
  • After-sales Service Provided:
    Field installation, commissioning and training
  • Cross speed:
    20 m/min
  • Color:
    Yellow or customized
  • Lifting mechanism:
    Electric hoist
  • Lifting Capacity:
    1t, 2t,3t,5t,10t,16t,20t
  • Packing:
    Export Standard
  • Control method:
    Handle

Introduction

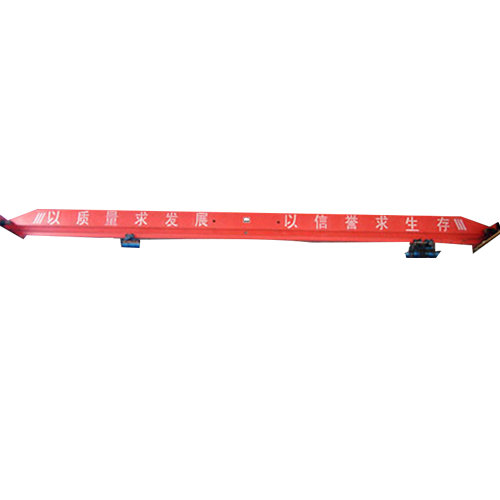

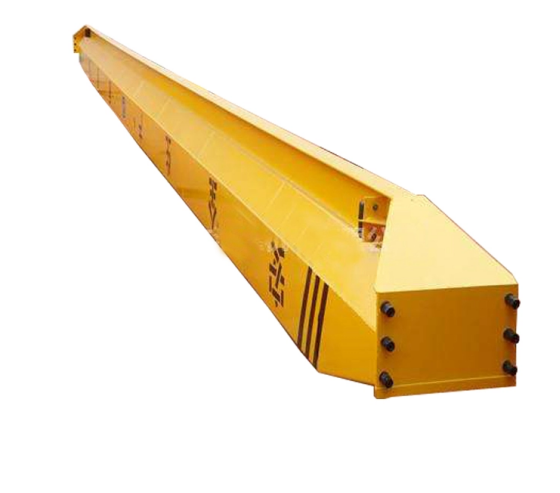

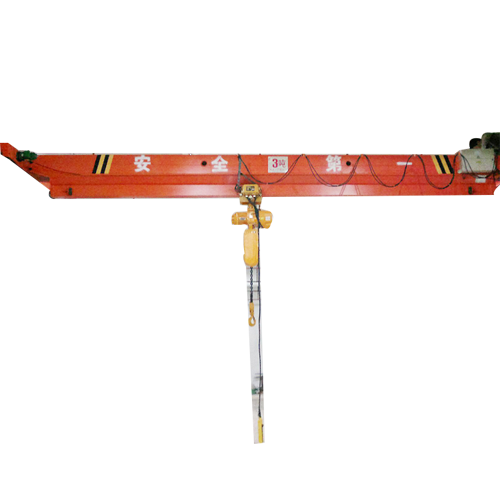

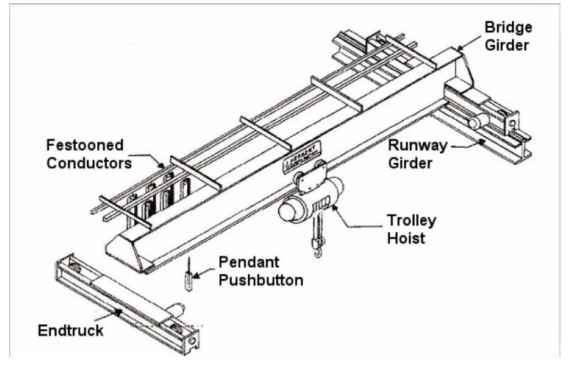

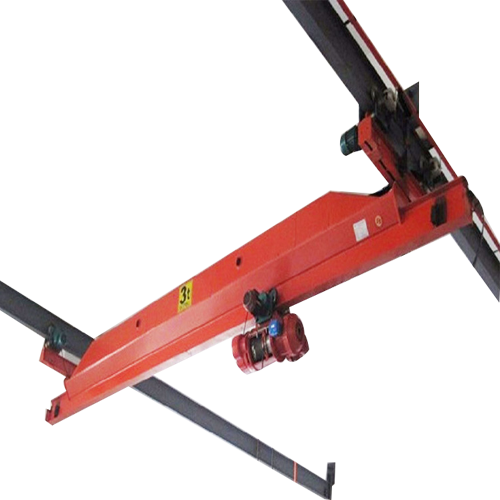

10 ton LDA Light Duty Hoist Bridge Crane with Best Price is consisting of the beam, electric hoist, long travelling mechanism, cabin or hand controller,and electrical control system. Electric hoist.can move horizontally on the rail fitted under a beam.This crane holds many characters of light structure,  easy to install and maintain, which is typically used for either manufacturing or maintenance applications, where efficiency or downtime are critical factors, for instance, plants, warehouses, or material stocks. The beam adopts the whole type without welding, which structure is more reasonable and reliable.



Cabin, radio controller or hand controller can be used for operating. The cabin has seats inside,floor adopts insulation pads and toughened glass for windows; extinguisher and fan are equipped. Other accessory equipments like air-condition, buzzer, interphone can be configured according to ourclient’s request.



The travelling motor can be standard motor,soft-start motor or work with frequency controller to meet the different speed requirements.


Technical Parameter


Capacity

t

1,2,3,5,10

16,20

Span

m

7.5-22.5

Lifting height

m

6,9,12,18,24,30

12,18,24,30

Speed

Lifting

m/min

8,8/0.8,7/07

3.5,3.5/0.35


Cross travel

m/min

20,30

20,30


Long travel

m/min

20,30,45,60,75

Electric hoist

type

CD/MD

CD/MD/HC

Working duty


A3

A3

Power supply

AC

380V/50HZ/3P

380V/50HZ/3P

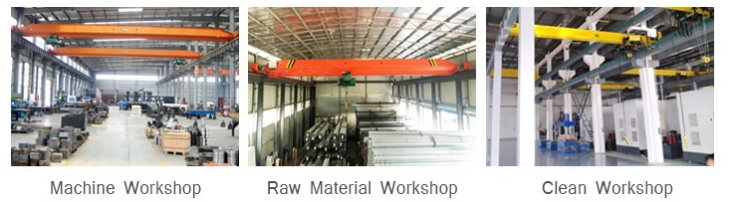

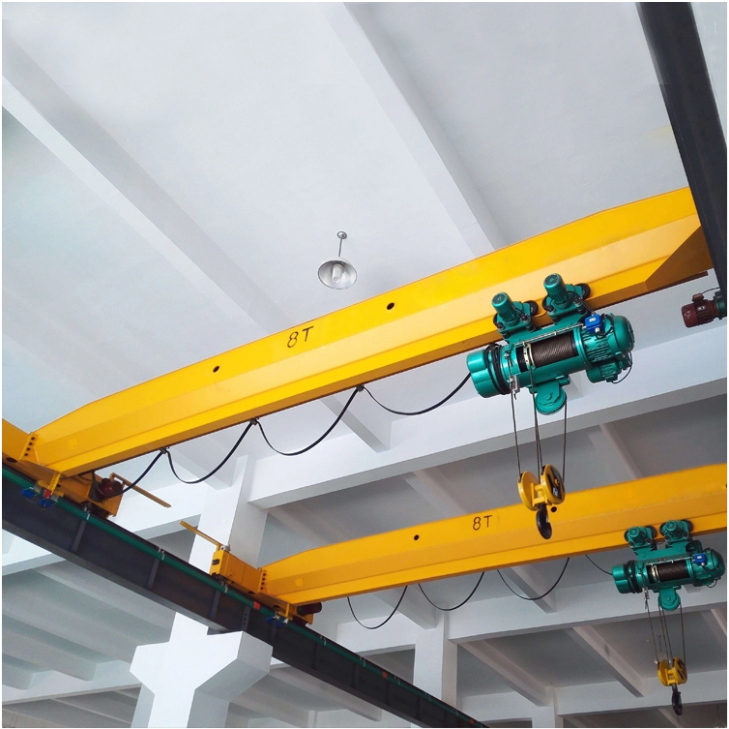

Application


Customer Visiting

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
