Double Girder Overhead Crane With Electric Hoist

Payment Terms: TT or LC

Ref Price : 1200-12500 USD/SET

Supply Capability : 1500 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Product Name:
    Double Girder Overhead Crane with Electric Hoist
  • Lifting Weight:
    5t-50t
  • Span:
    10.5m-31.5m or other
  • Lifting Height:
    6m-24m

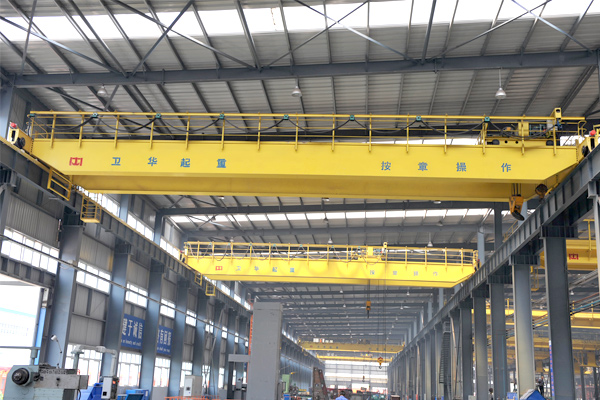

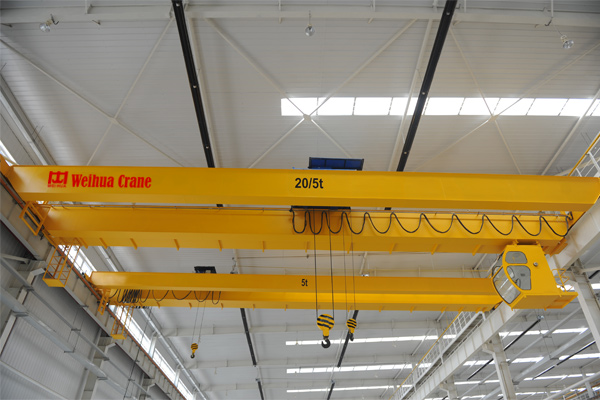

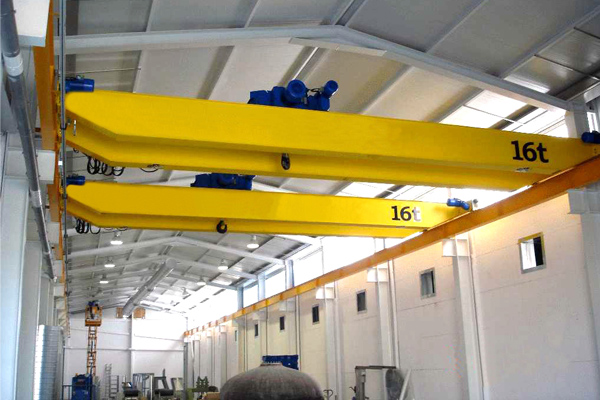

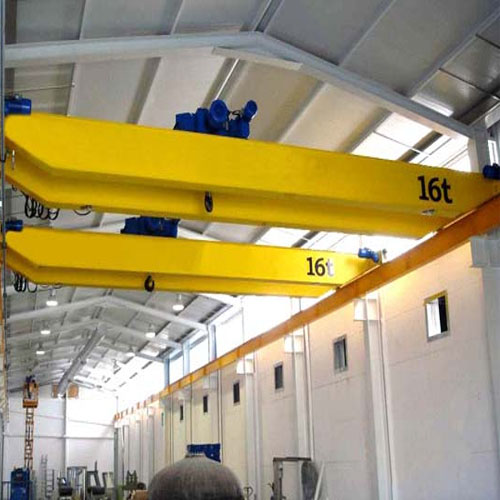

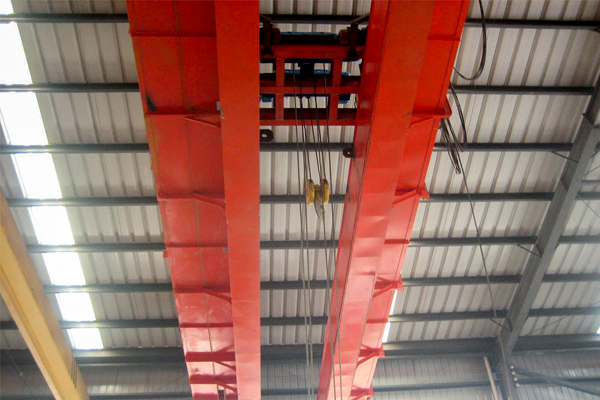

Double Girder Overhead Crane with Electric Hoist Description:

This double girder overhead crane with electric hoist is for lifting 5t~50t stuff. It's very convenient to install in new or existing workshops. This crane is easy to operate with various functions. With the advantages of compact structure, light weight and high lifting height, double girder overhead crane with electric hoist is widely used in workshops, metallurgy, warehouses and assembly shops etc.



Weihua double girder overhead crane with electric hoist has beautiful box-typed welded main girders. Computer optimized design for main girders with good performance and light weight. And the span reaches 40 meters.

 FEM/DIN standard



Mechanism:

1. Double main girders, box-type shaped by wielding;

2. High quality carbon steel Q235B and Q345B;

3. Double girder connected by high strength screws;

4. Welding seams are tested by X-ray and ultrasound;

5. Forged wheels;

6. Compact structure, small volume and light weight trolley;

7. Lifting mechanism is open type winch trolley;

8. Compact reducer motor drive, step less control, hardened gears and safety disc brake;

9. Good operation performance, step less speed regulating and running smoothly;

10. Main girders Shot blasting sa2.5 after welding to release internal stresses;

11. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μm;






Electric System of Double Girder Overhead Crane with Electric Hoist:

1. Power supply through step less slide lines;

2. Lifting mechanisms and traveling mechanisms are mutually independent and could travel at the same time;

3. Control panel protection degree is IP54;

4. Reasonable components installation, convenient for check and maintenance;

5. Electric cable is suspended in cable saddle, stationary cable trolley which slides on a galvanized C-type steel;




Double Girder Overhead Crane with Electric Hoist Specification:


Lifting Capacity t 5 10 16 20 32
Span
10.5m~31.5m, and customizable
Lifting Height m 6m~24m, and customizable
Lifting Speed m/min 8   8/0.8 7   7/0.7 3.5 0.35/3.5 3.3  0.33/3.3 3.3       0.33/3.3
Trolley Traveling Speed m/min 20 20 20 20 20
 Crane Traveling Speed m/min 30 30 30 30 30
Work Duty
A4
Power Supply
380V, 50Hz
 Europ Standard Electric Hoist Double Girder Overhead Crane             Techinical Specifications
Lifting Capacity t 5 10 16 20 32 50
Span
10.5m~31.5m, and customizable
Lifting Height m 6m~24m, and customizable
Lifting Speed m/min 0.8/5 0.8/5 0.66/4 0.53/3.4 0.8/3.3 0.53/3.2
Trolley Traveling Speed m/min 2~20 2~20 2~20 2~20 2~20 2~20
 Crane Traveling Speed m/min 3~30 3~30 3~30 3~30 3~30 3~30
Work Duty
A5
Power Supply
380V, 50Hz




Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
