Tianjin Baolishengni Plastic Pipe Made Co Ltd

Drainage HDPE Pipe 10KN 900mm with steel belt reinforced

Payment Terms: TT or LC

Ref Price : 200-100 USD/TON

Supply Capability : 10000 TON

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    Tianjin, China (Mainland)
  • Model Number:
    JT-E160
  • Material:
    PE
  • Specification:
    300mm-1800mm
  • Length:
    5.8m/pc or 11.8m/pc
  • Thickness:
    1.7mm-33.5mm
  • Standard:
    ISO4427, EN, DIN, AS, ASTM
  • Color:
    Black, customized
  • Certificate:
    ISO4427,ISO9001,CE
  • Raw material:
    PE100
  • Working pressure:
    8KN-10KN
  • Working Temperature:
    - 60℃ to 60℃
  • Production capacity:
    200000 tons/year
  • applications:
    sewerage,drainage,dredging,
  • Ranking:
    Top10 manufacturer of HDPE pipe and fitting in China
  • lifespan:
    more that 50 years life under normal conditions

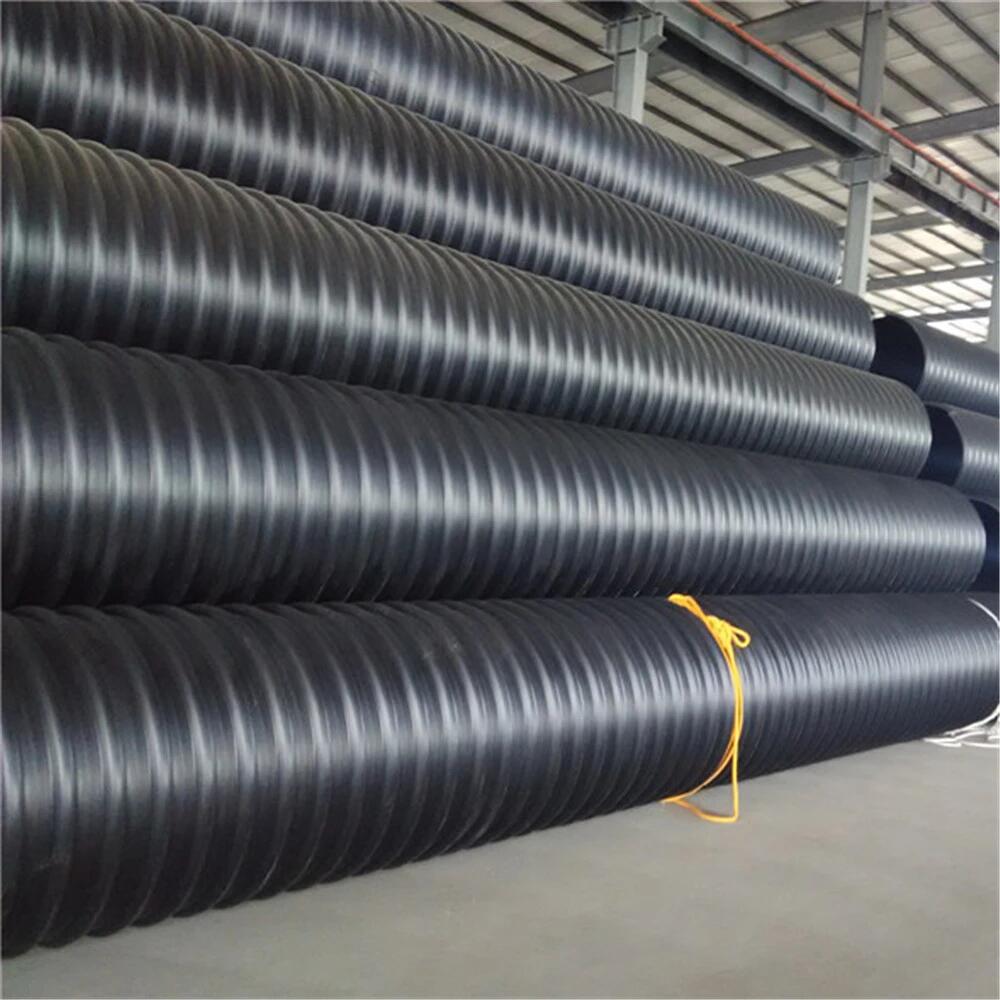

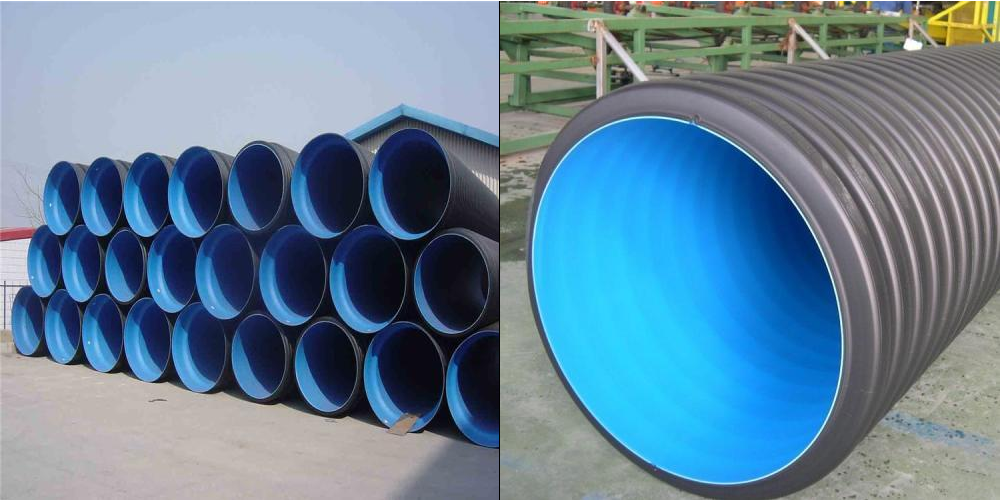

Product Show

Product Detail


In 2009, the company made huge investment for introducing large-diameter steel reinforced PE corrugated pipe production line, which completely adopts computer control ,fully-automatic production control procedure with advantages of high degree of automation, steady production, good uniformity on products property and save manpower.


The feature:

1  Super-large diameter, high stiffness and superior performance

2 The pipe adopts advanced pipe shape structure in intermational synchronized latest technology. The interior adopts high quality cold-roll steel frame. It is the plastic structure pipe with highest stiffness.

3 Large diameter and high strength

4 Reliable performance

5 Corrosion resistance, long service life


Specification:

Nomal intomal diameter

Minimum Average

 internal

Minimum inner layer wall thickness Mininum walll thickness Maximum thread pich  minimum steel strap thickness Minumum thickness of corrcation layer
300 294 2.5 4.0 75 0.4 2.2
400 392 3.0 4.5 85 0.4 2.2
500 490 3.5 5.0 100 0.5 2.5
600 588 4.0 6.0 110 0.5 2.5
700 685 4.0 6.0 115 0.5 2.5
800 785 4.5 7.5 120 0.7 3.0
900 885 5.0 7.5 135 0.7 3.0
1000 985 5.0 8.0 150 0.7 3.0
1100 1085 5.0 8.0 165 0.7 3.0
1200
1185 5.0 8.0 180 0.7 3.0
1300 1285 5.0 8.0 210 1.0 3.0
1400 1385 5.0 8.0 210 1.0 3.0
1500 1485 5.0 8.0 220 1.0 3.0
1600 1585 5.0 9.0 230 1.0 3.0
1800 1785 5.0 9.0 230 1.0 3.5
2000 1985 6.0 9.0 235 1.0 3.5
2200
2185 6.0 9.0 235 1.2 3.5
2400 2385 6.0 10.0 235 1.2 3.5

Physical mechanical property:


Item  Index
Ring stiffness SN8>=8KN/M2 SN12.5>=12.5KN/M2 SN16>=16KN/M2
Impact property <=10
peel Strength  >=100
ring flexibility  No cracking, no disconnection on double-wall
Oven test  No layering, no cracking
Tensile strenth of weld mark and weld seam  600<=DN/ID<=800>
creep ratio <=2


Advantage of large-diameter steel reinforced PE corrugated pipe:

High ring stiffness, the ring stiffness in all specification is over SN8, Special requirement: Could be over SN10 AND SN12.5.

Save material cost, compareed with ring stiffness full plastic buried discharge pipe in same diameter, it could reduce the greatly.

Prefect combination of steel and plastic: It adopts specification bonding materail, each layer is reliable and stable under the condition of melting.

Easy construction and outstanding performance:Compared with traditional discharge pipe, it has characteristics of reliable sealing, long service life, flexibility and seismic resistance, light weight, easy and fast construction.

Tianjin Baoli Shengni Plastic Pipe Manufacturing Co., Ltd. was established in 2003 with a registered capital of 61.88 million. The company is located in Tianjin Jinghai Economic Development Zone, covering an area of 50,000 square meters, close to Beijing-Shanghai, Beijing-Guangzhou Expressway and Tianjin. Hong Kong, Huanghua Port, Binhai New Area, and the national market. In the second half of 2008, Tianjin Jinhe Bimetal Wire Co., Ltd. completely acquired the company, which not only injected a lot of money into the company, but also made the company's business philosophy and quality consciousness completely new. In a short period of time, the company has developed into a high-tech enterprise integrating scientific research, development, production and sales. It specializes in producing HDPE high-density polyethylene double-wall corrugated pipe and large-diameter steel belt reinforced polyethylene spiral corrugated pipe. The company has passed ISO9001 system certification, has more than 200 employees, 13 and two large-scale workshops, with an annual output of 30,000 tons. The excellent products and perfect services have been recognized by local merchants.

    The company adopts internationally advanced technology and equipment to produce new green environmental protection pipe. This product is a national-level torch promotion project and is a new type of pipe that the country vigorously promotes.

    Our company pays attention to quality, focus on management, guarantees with strong technical force, adopts strict quality management system, and provides users with all-round technical support according to the standards of “new technology, high quality” and our sincerity and confidence. service.
