Factory directly supply british type stainless steel pipe quick release hose clamp price

Please enter your email.

cancel

Factory directly supply british type stainless steel pipe quick release hose clamp price

Payment Terms: TT or LC

Ref Price : 0.01-10 USD/PIECE

Supply Capability : 3000000 PIECE

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Measurement system:
    INCH, Metric
  • Place of Origin:
    Tianjin, China
  • Brand Name:
    Shunfa
  • Usage:
    Pipe Clamp
  • Material:
    Stainless Steel, Metal
  • Structure:
    Other
  • Standard or Nonstandard:
    Nonstandard

Product description












Specifications:

cope of application:

British type hose clamps are preferred by the European markets.The non-preforated and rolled band protects the soft-hoses surface from shearing during installation.This style of hose clamp is commonly used in automotive,industrial,mining,marine and genera

Band material

Galvanized iron ,stainless steel 201,stainless steel 301,stainlesssteel 304,stainless steel 316

Band Thickness

Galvanized iron

Stainless steel

 0.8-1.0mm

0.8-0.9mm

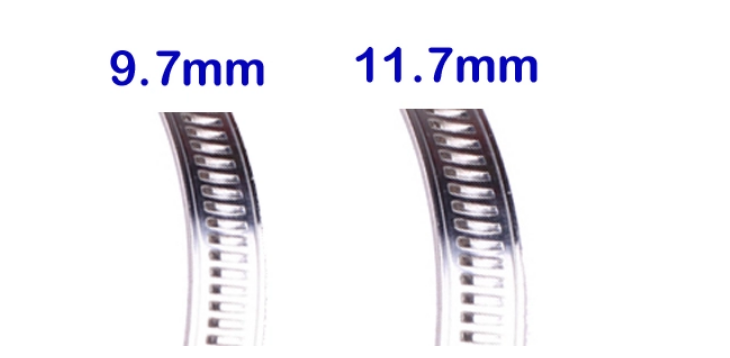

Band width

9.7mm/11.7mm

Wrench

7mm

Housing Material

stainless steel or galvanized iron

Screw style

W1

W2

W5/W4

Head crossed(or as you request)

Hesd crossed

Solt type screw

Connection

welding

Model number

As your requirement

Structure

Swivel clamp

Product feature

Volt-endurance;torque balance;large adjustment range

Certificate

ISO9001:2008

MOQ

1000

Supply ability

1200000 pieces per month

Payment terms

30%T/T Before production and 100% before shipment

Delivery time

10-35days afer T/T at sight

package

Plastic bag,carton

Company website

http://tjaojin.en.alibaba.com

Feature:

1.Use the open internal and external circle structure,and with screw fixed.It is effectively to solve the problem that when small diameter solft tube connect the hared tube,it is easy appear dead angle,and liquid or gas leakage problem.Easy structure,Easy

2.Edge is no burrfree,it is ability to prevent the tube damaged

3.By a  efficiently hydrogen relief treatment,long-term use needn't to worry fracture and other problems

4.Accord with DIN3017 Standard.By 48 hours salt and fog test,it has a good corrosion resistance

5.By last 36 hours elastic test,to insure a high strength mechanical properties.

6.Easy to fix.

british type stainless steel pipe quick release hose clamp   british type stainless steel pipe quick release hose clamp

W1--all of the band, housing and screw is galvanized steel;

W2-- band and housing 200ss or 300ss stainless steel, screw galvanized steel;

W4--all of the band, housing and screw is 200ss or 300ss stainless steel;

W5--all of the band, housing and screw is 316ss stainless steel.

Size(mm)

 Item NO

  W1    Bandwidth

  W2/W4/W5    Bandwidth

pcs/bag

pcs/carton

W1

W2

W4

W5

8-14

AJYSA814

AJYSB814

AJYSD814

AJYSE814

9.7*0.8mm

9.7*0.8mm

100

2000

11-17

AJYSA1117

AJYSB1117

AJYSD1117

AJYSE1117

100

1000

13-20

AJYSA1320

AJYSB1320

AJYSD1320

AJYSE1320

100

1000

15-24

AJYSA1524

AJYSB1524

AJYSD1524

AJYSE1524

11.7*0.9mm

11.7*0.9mm

100

1000

19-28

AJYSA1928

AJYSB1928

AJYSD1928

AJYSE1928

100

1000

22-32

AJYSA2232

AJYSB2232

AJYSD2232

AJYSE2232

100

1000

26-38

AJYSA2638

AJYSB2638

AJYSD2638

AJYSE2638

100

1000

32-44

AJYSA3244

AJYSB3244

AJYSD3244

AJYSE3244

20

1000

38-50

AJYSA3850

AJYSB3850

AJYSD3850

AJYSE3850

20

1000

44-56

AJYSA4456

AJYSB4456

AJYSD4456

AJYSE4456

20

1000

50-65

AJYSA5065

AJYSB5065

AJYSD5065

AJYSE5065

20

1000

58-75

AJYSA5875

AJYSB5875

AJYSD5875

AJYSE5875

20

500

68-85

AJYSA6885

AJYSB6885

AJYSD6885

AJYSE6885

20

500

77-95

AJYSA7795

AJYSB7795

AJYSD7795

AJYSE7795

20

500

87-112

AJYSA87112

AJYSB87112

AJYSD87112

AJYSE87112

20

250

104-138

AJYSA104138

AJYSB104138

AJYSD104138

AJYSE104138

11.7*1.0mm

20

250

130-165

AJYSA130165

AJYSB130165

AJYSD130165

AJYSE130165

20

250

150-180

AJYSA150180

AJYSB150180

AJYSD150180

AJYSE150180

20

250

175-205

AJYSA175205

AJYSB175205

AJYSD175205

AJYSE175205

20

200

200-231

AJYSA200231

AJYSB200231

AJYSD200231

AJYSE200231

20

200

226-256

AJYSA226256

AJYSB226256

AJYSD226256

AJYSE226256

20

200

251-282

AJYSA251282

AJYSB251282

AJYSD251282

AJYSE251282

20

150

277-307

AJYSA277307

AJYSB277307

AJYSD277307

AJYSE277307

20

150

NOTE:

1,The standard packing material in bags and cartons.

2,Other sizes are available for us too.

3,All the information is just for your reference,can't be used as specification.

Main Products Outline:

1 British hose clamps: band thickness is usually about 1 mm, double the thickness of other hose clamps. So the band tension is very strong. Widely used in larger pressure occasions. With out tooth traces at inner ring of the band can protect the soft surf

2 German hose clamps: the unique side pressing design, and non-perforated design can effectively prevent the soft surface of the silicone tube and hose from damage.

3.American hose clamps: with band thread through-hole, and teeth of the screw fitted in, they have more powerful locking. and accurate Occlusal. Also,american hose clamps can be used in non-circular objects, they can bundle the square columnar objects, su

4.T bolt hose clamps: similar to their brothers ---- the single-head solid strong clamps, both of them belong to the powerful hose clamps , which also called European clamps. The common bandwidth 20MM, 24MM, 26MM,etc., have a larger Strong torque. Widely

5.V band hose clamps: traditional flange replacing products. beautiful appearance. cheap. fast and easy installation. high strength, good sealing performance. Pipes are connected with high concentricity. and easy removal. They can be used as an active con

6.U shape pipe clamps:are used for pipe fixing on various surfaces and support structures. U tube clamps is suitable for fixed pipeline with oil, water, gas medium in metallurgy, petroleum, chemicals, vehicles, ships, power hydraulic systems. U pipe clamp

7.Spring-loaded T-bolt hose clamps: spiral spring design prevents the occurrence of leakage when temperature changes, and have a self-compensation function (constant pressure). Widely used in truck air intake, cooling ventilation systems. T-spring hoops m

8 rubber coated hose clamps: with good flexibility, tensile strength, flame retardant, waterproof, anti-aging, anti-static, high temperature resistance, corrosion resistance, wear-resistant, anti-UV performance.

9. Handle/thumb screw hose clamps: simple and easy to use, without any tools. Handle/thumb screw can be plastic coated or not.

10 quick release hose clamps: mainly used in fast conversion, such as sealing of the air duct, dust channel interface. meets quickly tied needs to enable work very efficient.


Export advantages:

1.We always inspect every hose clamp to avoid any shortcoming,so we promise every hose clamp reaches the export standard.

2.Our factory is located in Tianjin,which is the second largest port of china..So we could save the inland freight for you,also as a production-oriented enterprise,we will give you the best quotation.

3.We have passed the certification of ISO9001 in 2008.Also we could offer ODM,OEM and Buyer Label Service.So we promise our product quality and our service.

4.We have a strong production ability,also professional quality control department,so we could promise our delivery time and product quality.

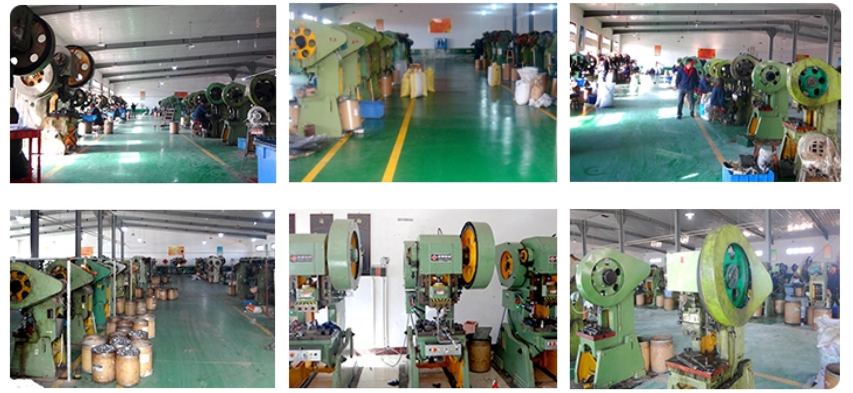

Our workshop

Tianjin Shunfa Universal Clamp Co.,Ltd was founded in 2002. The manufacture covers an area of 340,000 square meters, with a construction area of 250,000 square meters and 1000 employees.The company has great experience in the clamp production industry. Years of technology and quality assurance have enabled us to have a broad customer base in the globle market.

The company's main products are: stainless steel clamp standard parts and non-standard, stainless steel hose clamps, rubber and other products, and exported to Asia, Africa, Europe, the Middle East, the Amerias, and many parts of the world.

We have a first-class technology research and development demand that we provide our customers with the best quality products and services.We sincerely hope to establish long-term trade links with customers from all over the world. If you know more about our company, please contact :shunfa@sino-sources.com


Shunfa Universal Clamp main produce various specifications hose clamp,commit to provide best quality hose clamps products for overseas users.
