Factory New 10t Light Duty Small Precast Gantry Crane For Sale

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 3000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Feature:
    Light Crane
  • Condition:
    New
  • Rated Lifting Moment:
    Design
  • Max. Lifting Load:
    32tons
  • Max. Lifting Height:
    26m and customizable
  • Span:
    31.5m and customizable
  • Place of Origin:
    Henan, China (Mainland)
  • Brand Name:
    WEIHUA CRANE
  • Certification:
    CE GOST ISO SGS
  • Warranty:
    1 Year
  • After-sales Service Provided:
    Field maintenance and repair service
  • Main electrical parts:
    Simens and Simens Brand
  • Emergency stop:
    Equipped
  • Color:
    Yellow .Red . Orange and customizable
  • Painting:
    3 layer anti-rust painting
  • Polyurethane materials buffer:
    Equipped
  • Lifting speed:
    Variable Speed (standard)

Product Introduction

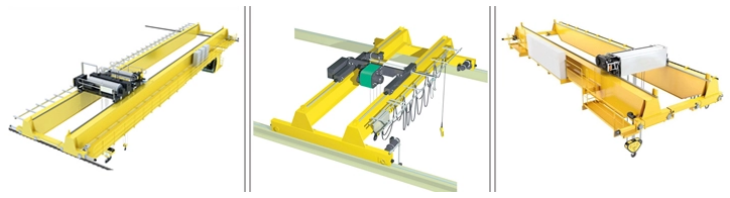

10t Crane with Warning Light is designed and manufactured with European standard. The lifting capacity of this 1-32t overhead crane be up to 800t. The trolley is installed between two main girders. Thus it increases the traveling scope of spreader. This 10t Double Girder Overhead Crane with Warning Light is with reliable performance, flexible application range, easy to operate and convenient to maintain.

Lightweight and Modular Design of 10t Crane with Warning Light:

1. Overall height is 20%~25% lower than traditional cranes;

2. Self-weight is lighter by 20%~30%;

3. Max wheel load reduces 15%~20%;

4. Smaller limiting size increases working scope;

5. Light structure reduces the cost of workshops;

6. Every component designed to be a standard series and interchangeable;

7. Modularization design is easy for transporting;

8. Standard modular design makes good quality and fast delivery.

Advanced Manufacturing Technology of 10t Crane with Warning Light:

1. Sandblast pretreatment on steel plates and the surface quality reaches Sa2.5;

2. CNC cutting machine cuts webs plate to insure the curved surface is smooth and accurate;

3. Seams are soldered by automatic arc welding and detected by ultrasonic and X-ray ;

4. The structure of girder and trolley is manufactured by floor-type boring lathe to insure flatness.

Safety of 10t Crane with Warning Light:

1. Safety supervision system is with an overload limiter and shows the load value on screen to warn operator to avoid overload;

2. Before start up, the whole system will carry out self-checking includes: power supply voltage, default phase, validity of the safe protection device and the zero button;

High Reliability of 10t Crane with Warning Light:

1. Use imported motor with insulation grade of F and protection degree of IP54. With overheat alarm. The motor is shielded by aluminum alloy stretching cover with good heat dissipation performance;

2. Imported reducer from Germany. hardened gears with good bearing capacity, excellent seal without penetration of grease;

3. Main electric components imported from international brands such as: Siemens, Schneider and ABB etc. with protection degree not lower than IP54;

4. Wheels are forged by 65mn alloy steel with features of wear-proof, anti-fatigue and long service life.

5. Low energy consumption and maintenance free;

6. Whole crane energy saving about 30%;

7. All-in-one transmission mechanism making it work more efficient;

8. Variable frequency control whose high and low rotating speed ratio is 1:10 and work efficiency increases more than 20%;

9. Less and easy maintenance reduces the cost of maintenance;

10. Manufactured by advanced technology and constituted by high quality imported components greatly reducing malfunction and cost;


Technical Specifications

Lifting Capacity

Span

Lifting

Height

Work Duty

Main Lifting

Speed

Vice Lifting

Speed

Trolley Traveling

Speed

Crane Traveling

Speed

Track

t

m

m


m/min

m/min

m/min

m/min


5

13.5~19.5

18

A5

0.84~8.4


3.4~34

5.1~51

38kg

22.5~31.5

5~50

5

13.5~19.5

18

A5

0.78~7.8


3~30

5~50

38kg

22.5~31.5

5.2~52

16/5

13.5~19.5

18/18

A5

0.76~7.6

0.84~8.4

3.5~35

5.1~51

43kg

22.5~31.5

5.2~52

20/5

13.5~19.5

18/18

A5

0.6~6

0.84~8.4

3.5~35

5.1~51

43kg

22.5~31.5

5.2~52

32/5

13.5~19.5

18/18

A5

0.52~5.2

0.84~8.4

3.1~31

5.1~51

43kg

22.5~31.5

5.2~52

Oct-50

13.5~19.5

18/18

A5

0.43~3.9

0.78~7.8

3.6~36

4.8~48

43kg

22.5~31.5

5.4~54

Notes: Customizable

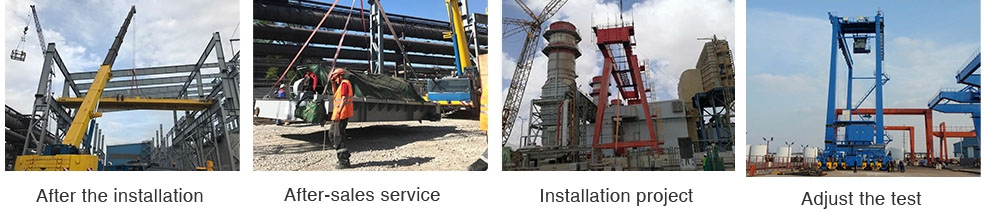

Installation

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
