Fire Rated Elastomeric Rubeer Pipe Insulation for A/C

Payment Terms: TT or LC

Ref Price : 1-10 USD/PIECE

Supply Capability : 10000 TON

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Port:
    Tianjin,China
  • Payment Terms:
    L/C, T/T
  • Material:
    Rubber & Foam
  • Capability:
    for Air Conditioner
  • Color:
    Black
  • Application:
    Rubber Insulation Hose for Air Conditioner
  • Length:
    1.83 Meter
  • Thickness:
    1/4", 3/8", 1/2", 3/4", 1", etc

Rubber Foam Thermal Insulation Rubber Tube

Wanmaide Class1 Foam Rubber Tube Air Soft Boiler Insulation Material

Sponge Foam Rubber Tube PPR Thermal Insulation Pipe

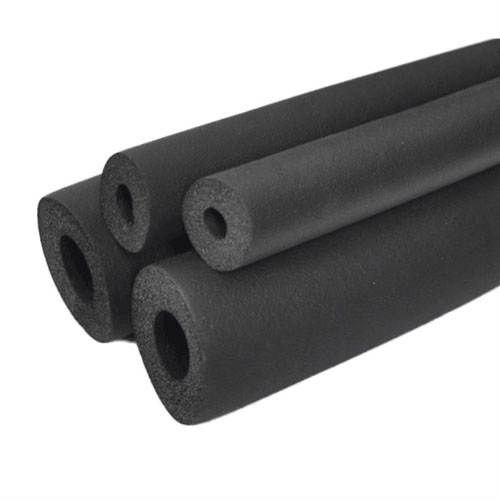

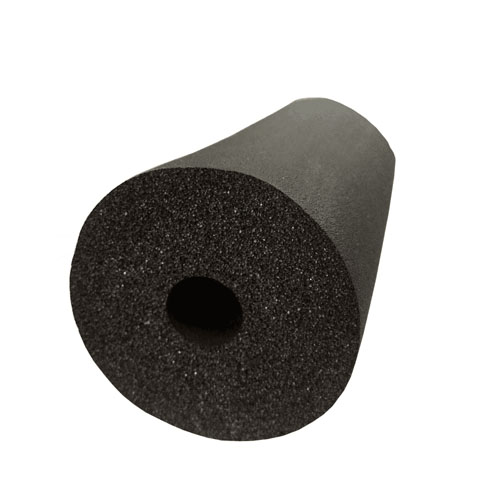

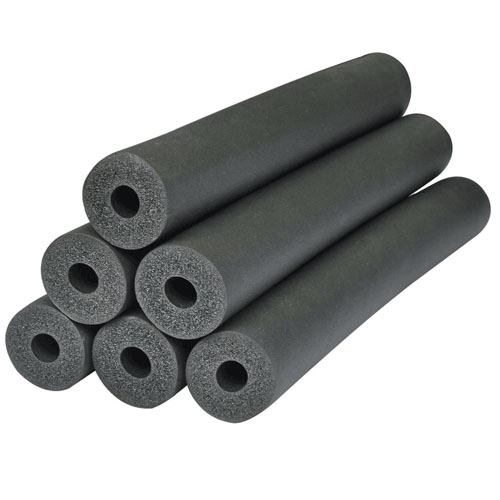

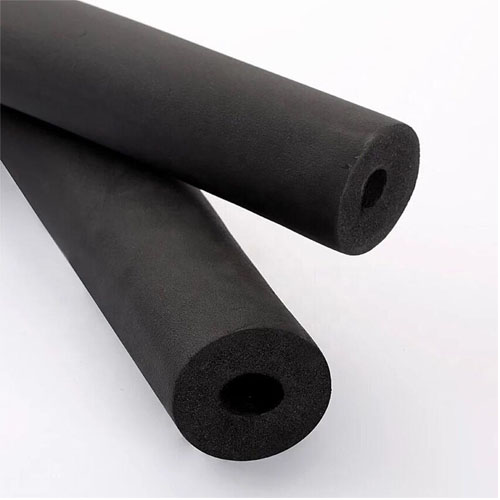

Wanmaide tube is a black, flexible elastomeric foam tube used to conserve energy and prevent condensation on piping applications. The tube closed cell properties create exceptional thermal and acoustic insulation, protect against moisture penetration and provide the best solution for applications within a -280°F to +221°F temperature range. It is primarily used in the HVAC/R market and comes in 6 feet or 2 meet length. It is 25/50-rated, according to ASTM E-84 standards for surface burning characteristics of building materials.



  • Heating: Excellent heat insulation performance, greatly reduce heat loss, convenient economy installation.

  • Ventilation: Also meet the world's most rigorous fire safety standards, greatly improved the safety performance of the materials, applicable to all kinds of ventilation ductwork.

  • Cooling: High soft degree, easy installation, applicable to the condensate pipes systems, cold media quality system in the fields of the insulation.

  • Air conditioning: Prevent condensation produce effectively, help air conditioning system to improve efficiency and create a more comfortable environment.

Wall Thickness: 3/8"Length 6FT(1.83m)

ID size: 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-5/8", 1-7/8", 2".

INSULATION PIPE

ID THICKNESS 6mm 1/4" THIKNESS 9mm 3/8" THIKNESS 13mm 1/2" THIKNESS 19mm 3/4" THIKNESS 25mm 1" THIKNESS 30mm  THIKNESS 32mm 1-1/4"
Inch QTY(PCS/CTN) QTY(PCS/CTN) QTY(PCS/CTN) QTY(PCS/CTN) QTY(PCS/CTN) QTY(PCS/CTN) QTY(PCS/CTN)
1/4"(6mm) 300 168 120 48 \

3/8"(10mm) 210 120 100 36 30

1/2"(13mm) 180 100 80 30 28

5/8"(16mm) 140 90 63 30 24 18
 3/4"(19mm) 120 72 56 26 20 14
7/8"(22mm) 80 65 42 24 20 14
1 "(25mm) 70 49 36 20 18

1-1/8(28mm) 60 49 36 20 18 12
1-1/4(32mm) 55 42 30 20 16
12
1-3/8(35mm) 50 36 30 18 15

1-5/8(42mm) \ 30 25 16 12

1-7/8(48mm) \ 28 20 12 10
8
2(51mm) \ 24 20 12 9

2-1/8(54mm) \ 20 18 12 9

2-3/8(60mm) \ 20 18 9 9
8
63
20 18 9 9

2-5/8(67mm) \ 18 13 8 8

2-7/8(73mm) \ 18 13 8 8
8
3(76mm) \ 18 12 8 8

3-1/8(79mm) \ 15 12 6 6

LENGTH PER INSULATION PIPE: 1.83 METER

Black colour.
With good flexibility, strength and appearance.
Brand: U-flex, Superlon, we can also accept OEM order.
Carton Size: 1850*300*400mm
310cartons/40HQ, 126cartons/20GP

1. Product feature:
1). Low density, closed-cell structure, low thermal conductivity, long-using life, low cost of routine maintenance and repairs;
2). Closed-cell structure and the dense skin make the water vapor is not easy through, and low water absorption;
3). Soft materials, Construction easy to install, and pleasing in appearance, smooth;
4). Wide temperature range from -50 degrees to 110 degrees, good weather ability;

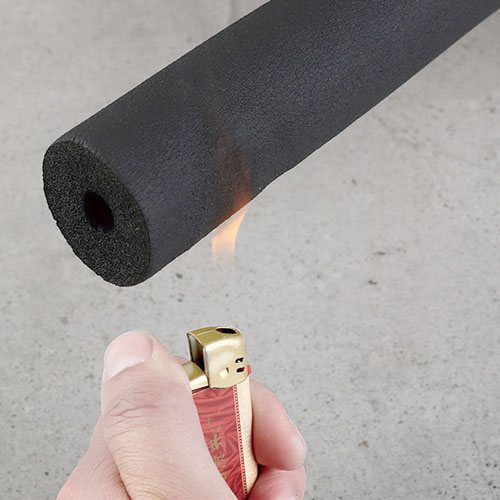

5). Excellent fire performance.

2. Application:

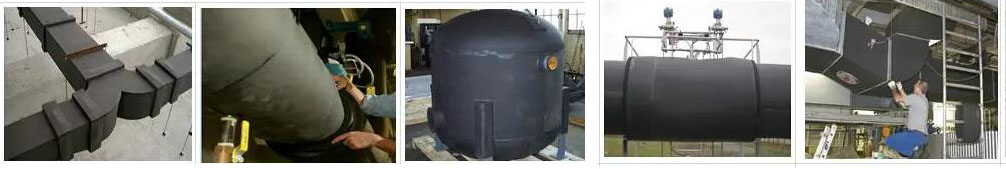

Widely used in central air conditioning, construction, chemical, medical treatment, textile, metallurgy, vessel, vehicle, electrical appliance and etc industry and sectors of various hot and cold media pipeline, container, can achieve to reduce the energy saving effect of the hot and cold loss.





WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude  Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.


We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
