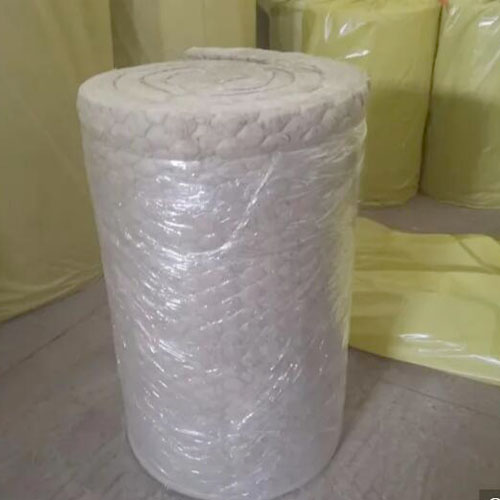

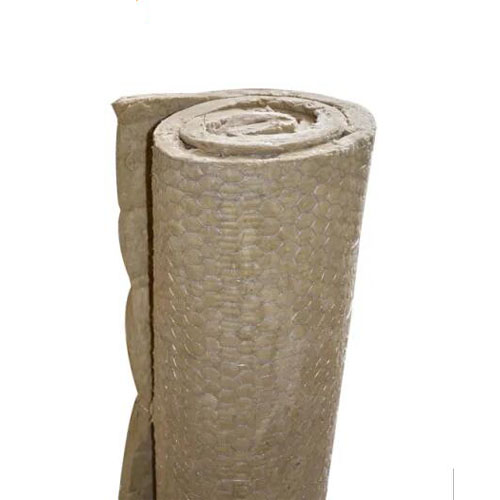

Flexible Thermal Insulation Rockwool Blanket with Wire Mesh Fireproof Heat Insulation Roll

Product Description:

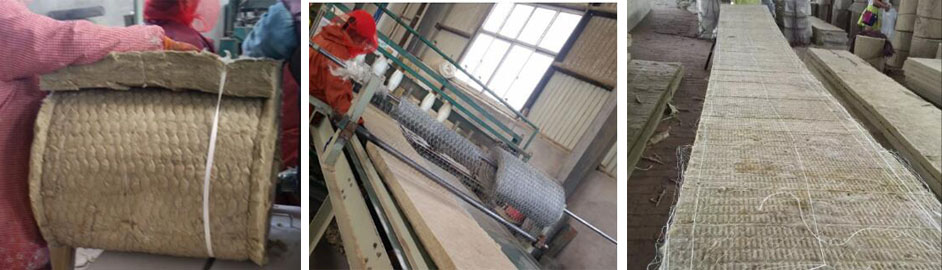

High quality rock wool with natural rocks as the main raw material, by weight, the ratio of cupola melting is higher than 1450 ℃, from the four rollers centrifuge high-speed optical fiber, the method is placed evenly spray adhesive cotton, and then curing, cutting into different specifications and usages of the product.



High quality rock wool has four characteristics: strong resistance to high temperature, good hydrophobic property, high corrosion resistance and low thermal conductivity, can be in the petroleum chemical industry, power plants and other industrial boiler, stove, distillation tower, valve, pipe and other equipment to provide the highest level of protection, resist heat and energy loss, avoid fire, noise and other harmful effects.



Buildings and Industries high-temperature rock wool products include:

- high quality rock wool board for Buildings and Industries use

- high quality rock wool blanket

- high quality rock wool pipe

Type	Standard Requirement	Deviation
Length	1200mm	+10/-3mm
Width	600mm	+5/-3mm
Thickness	25mm-150mm	±2.5mm
Density	50kg/m3-120kg/m3	±10kg/m3



Property	Description
Density	40-200kg/m3 (GB/T 5480.3)
Thickness	30-150mm (GB/T 5480.3)
Dimension	1200X600mm (GB/T 5480.3)
Thermal Conductivity*	Tested under mean temperature, comply with GB/T 10294, GB/T 10296, ASTM C177
70 ℃	0.039W/(m.K)
100 ℃	0.043W/(m.K)
150 ℃	0.050W/(m.K)
200 ℃	0.058W/(m.K)
250 ℃	0.066W/(m.K)
300 ℃	0.074W/(m.K)
350 ℃	0.083W/(m.K)
400 ℃	0.093W/(m.K)
Maximum Service Temperature	750 ℃ (GB/T 17430, GB50264)
Recommended Service Temperature	650 ℃ (ASTM C411-05, ASTM C447-03, GB50264)
Surface Burning Characteristic(FSI)	0 (ASTM E84-10)
Surface Burning Characteristic(SD)	≤25 (ASTM E84-10)
Fire Performance	Class A1(GB 8624,EN13501-1,BS 476 Part4)
Water Vapour Sorption by Weight	≤1% (ASTM C1104/1104M )
Water Vapour Sorption by Volume	≤1% (ASTM C1104/1104M )
Chloride Content	≤10ppm (GB/T 17393, ASTM C871-08)
Water Repellence	99.5% (GB/T 10299)
Fibre Diameter	≤6μm (GB/T 5480)
Standard	GB 11835 <<Stone wool, slag wool and it’s products for thermal insulation>> GB 50264 <<Code for design of industrial equipment and pipeline insulation engineering >> ASTM C612 <<Standard Speci cation for Mineral Fiber Block and Board Thermal Insulation>> type IA to IVB JIS A9504 <<Man made mineral bre thermal insulation materials>> SH3010 <<Design code of equipment and piping insulation for petrochemical enterprises>> DL/T 5072 <<Code for designing insulation and painting of fossil fuel power plant>>
