Qulck Details

  • Place of Origin:
    China (Mainland)
  • Brand Name:
    wanmaide
  • Model Number:
    XPS
  • Product name:
    XPS Foam Board
  • Application:
    Customized Size XPS Insulation Board
  • Color of XPS:
    Blue flame retardant foam board
  • Material:
    Polystyrene XPS wall insulation
  • Surface:
    Smooth,Needle and Rough
  • Thickness:
    10-80mm thick Rigid Foam Board Insulation
  • Certificate:
    Can be Ordered
  • Width:
    600mm xps board
  • Shape:
    Rectangle XPS Styrofoam Wall Panels

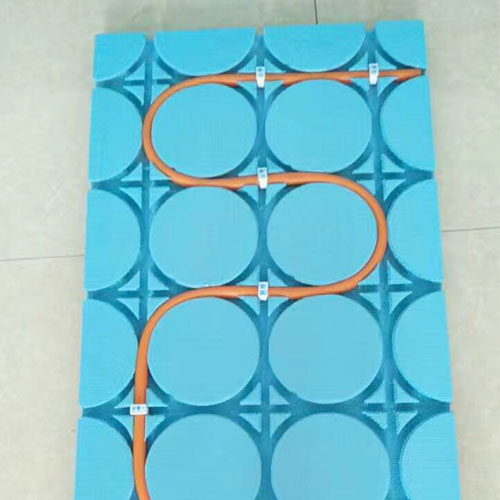

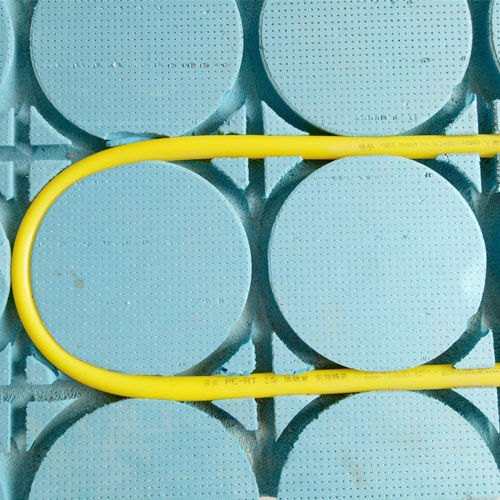

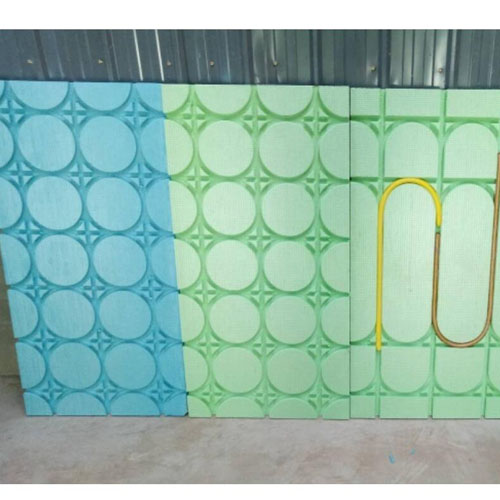

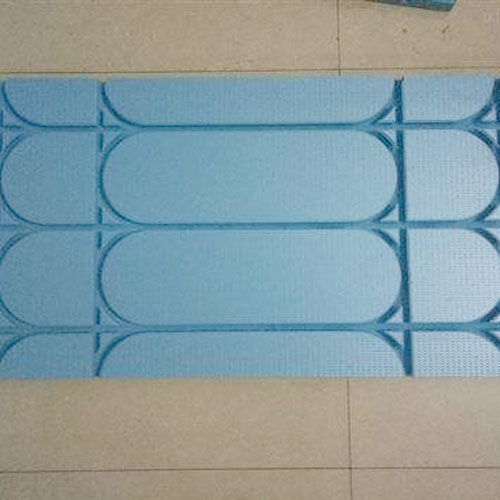

 XPS Insulation Board Panel for Water Floor Heating

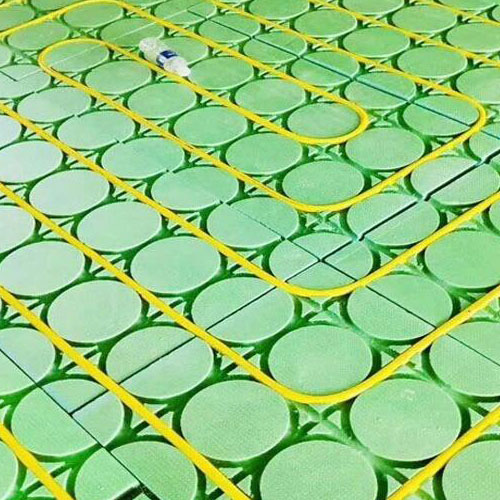

XPS Water Groove Insulation Board Panel is made of extruded polystyrene(XPS) with grooved lines(straight & curved grooves), the hot pipes can be installed into the grooves,it is covered by aluminum foil, the energy could be spread efficiently and evenly, it is an efficient thermal insulation material in under floor heating system.

All use the best quality material, also for the underfloor heating panel, the board is environmental and new with high density and compress strength, Absolutely obey the EU strandard, so it's competely no problem when you inport and use them.

Type

wanmaide XPS Insulation Board Panel

Material

XPS Insulation Board

Size

600mmx1200mm, customized sizes available

Thickness

25mm ,30mm

Density of extruded polystyrene core

30-35 kg/m3

Coefficient of linear thermal expansion

0.07mm/mk

Thermal conductivity, 90days, 10℃

0.028~0.03W/M*K

Water absorption

≤1.0% vol-%

Compressive strength

300~700Kpa

Capillarity

Nil

Temperature limit

-50 ℃~+75 ℃

Application

Floor, Wall, Bathrooms, Showers, Wet rooms, Swimming pools

Features:

Compressive strength >=300Kpa
Pre-Grooved to fit pipe inside
Suitable for projects where access to wet screed may be difficult
Provides impact sound installation when installed on intermediate floors


Length x Width x Thickness

Pipe OD

Channel distance

1200x600x25mm

16mm

150/200mm

1200x600x30mm

16/20mm

150/200mm

Aluminum spreader plate 1000x390x0.45mm

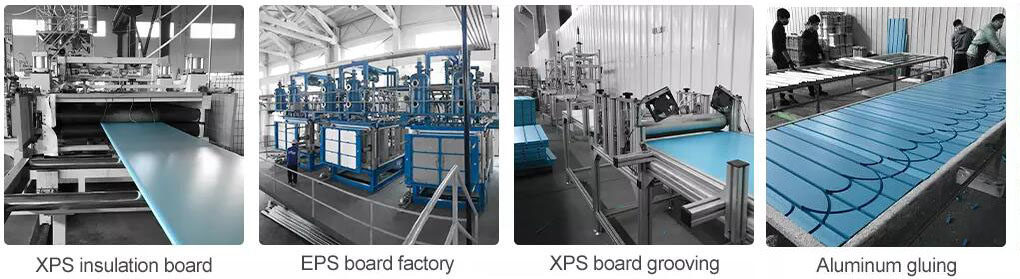

Workshop:




WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude  Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.


We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
