galvanized steel wire rope manufacturers
- Details
Specifications:
galvanized steel wire is popularly used for optical cable,spring,fishery,every kind of protective guard and so on.
Detailed Product Description:

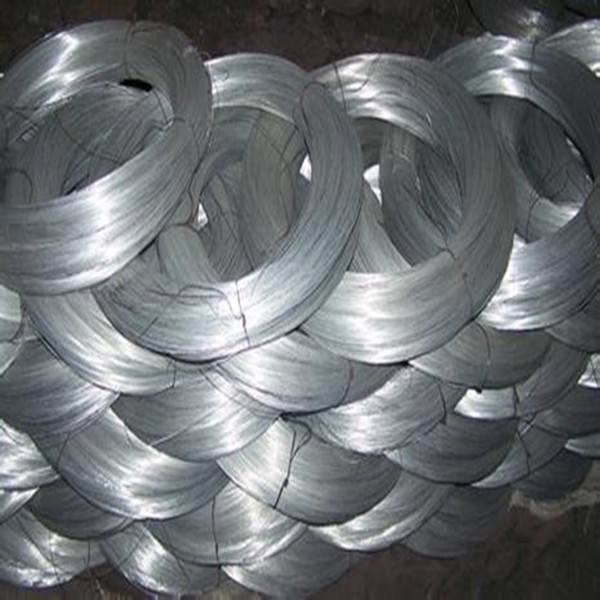

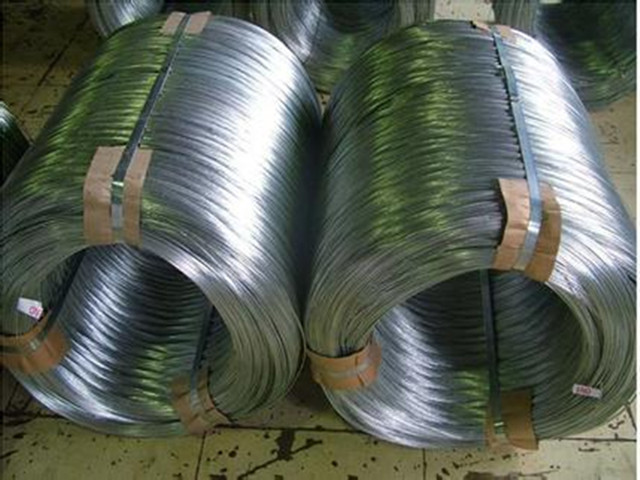

Products name: galvanized steel wire
Type: low carbon, middle carbon, high carbon
Diameters: 0.15-12mm
Tensile strength: according to the customer request
Standard: ASTM, BS, EN, ISO, DIN, JISG, KSD, TOCT, DA, DS, OTEVA
Packgaing: pack in plastic spool, reel, bag, drum, carton and so on
Material: SAE1006, SAE1008, SAE1010, Q195, Q235, C45, C50, C55, C60, C65, 65Mn, C72A, C72B, C80, C82B, CT9A, GCr15
Usage: for optical cable, spring, fishery, every kind of protective guard and so on.
Diameter(mm) |
Tensile Strength MPa |
Weight of zinecoat g/m |
1.24-2.25 |
1340-1620 |
185-215 |
2.25-3.00 |
1310-1590 |
230 |
3.00-3.50 |
1290-1550 |
245 |
3.50-4.25 |
1290-1520 |
260 |
4.25-4.75 |
1290-1520 |
275 |
4.75-5.50 |
1290-1520 |
290 |
