Gate-Type bucket wheel stacker reclaimer manufacturer

Payment Terms: TT or LC

Ref Price : 10000-500000 USD/SET

Supply Capability : 150 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Product Name:
    Gate-Type Bucket-Wheel Stacker Reclaimer
  • Stack Capacity:
    450-1,500t/h
  • Reclaim Capacity:
    200-1,500t/h
  • Materials:
    Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials.

Gate-Type bucket wheel stacker reclaimer Description:

This kind of bucket wheel stacker reclaimer refers to a high-efficiency loading and unloading machine for continuous transportation of large dry bulk cargo yards, which can be stacked and reclaimed. It can continuously stack bulk materials and is suitable for large thermal power plants, industrial and mining machinery bulk material yards. port.


Our company's gate-type bucket-wheel stacker reclaimer has the rail span range, reclaiming capacity range and stacking capacity range of 20-60m, 150-2500t/h and 300-3000t/h respectively.

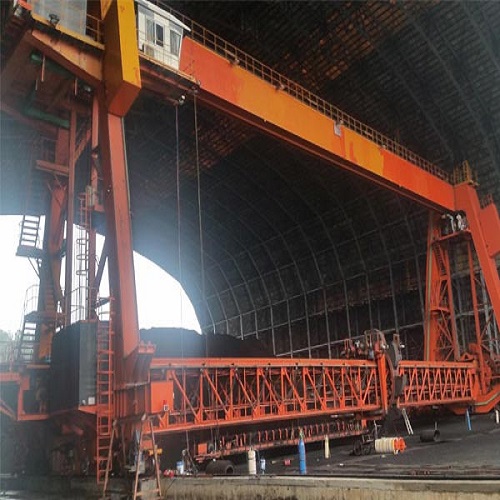

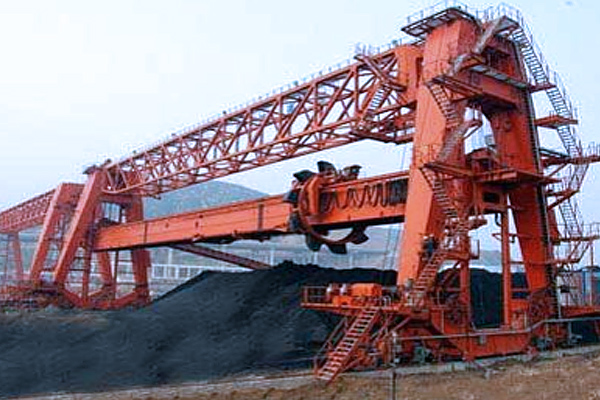

Some Gate-Type bucket-wheel stacker and reclaimer samples:


Quality bucket wheel reclaimer Specification:


Equipment model  Unit

MDQ600/

100050

MDQ1000/

100040

MDQ800/

150060

MDQ1500/

250045

MDQ1800/

200050

MDQ2500/

250060

Production capacity  Stack t/h 450 600 800 1500 1800 1500
Reclaim  t/h 200 300 1200 1500 3200 1500
Stacking height On the rail m 8~12
Under rail  m 0.5~2.5
Material characteristics Applicable materials  Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials.

Density  t/m³ 0.5~2.5

Granularity mm 0~300
Bucket wheel diameter  m 5~`8
Conveyer Bandwidth mm 650~1800
Belt speed m/s 1.25~3.15
Traveling speed  m/min 5~30 Frequency control
Rail gauge m 50 40 60 45 50 60
Maximum wheel load KN 250/300
Recommended steel track P50/Q80
Power supply mode  Cable drum/safety sliding contact line
Contact mode  Cable drum/safety sliding contact line/wireless
Control mode  PLC program control, manual and single action


Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
