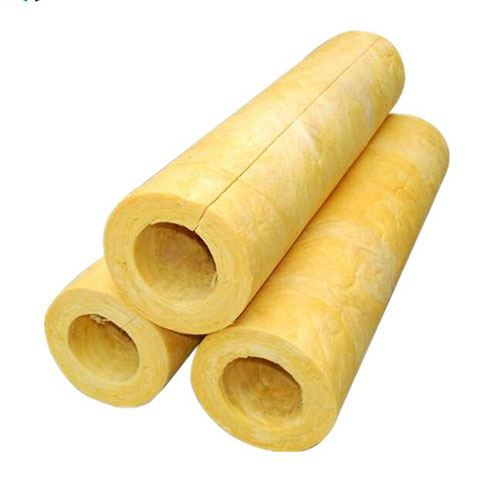

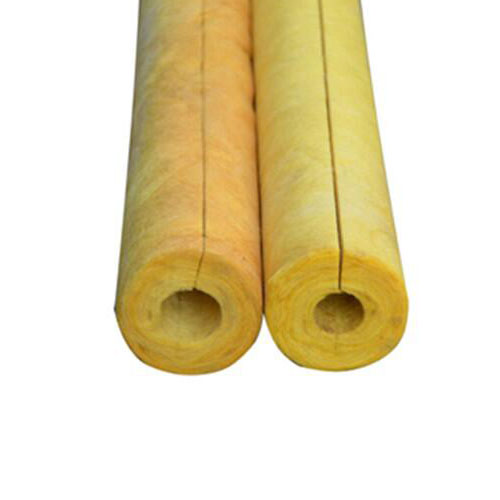

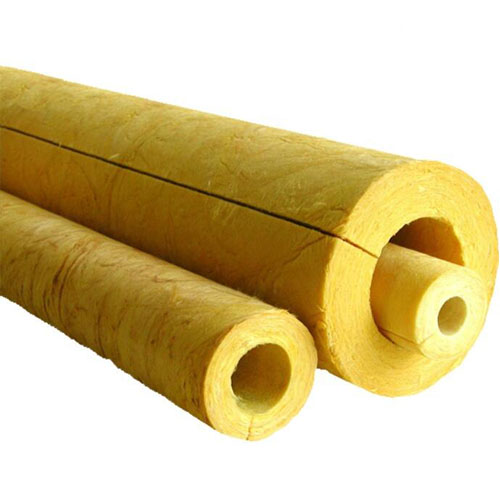

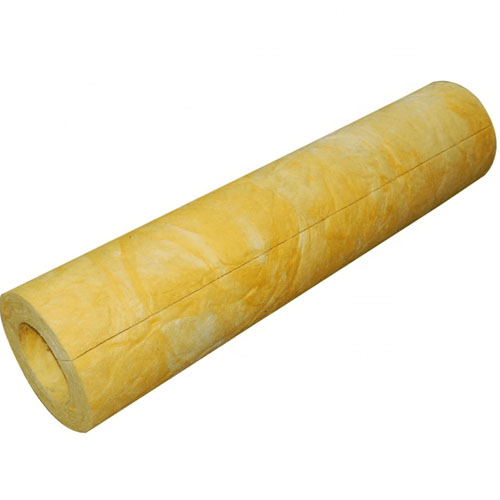

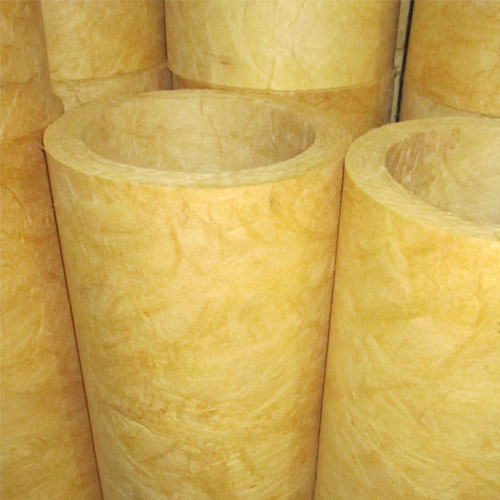

Glass wool pipe heat insulation material,fiberglass wool pipe

Payment Terms: TT or LC

Ref Price : 1-10 USD/KG

Supply Capability : 10000 KG

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    China (Mainland)
  • Model Number:
    Grade A
  • Density:
    10~100kg/m3
  • Average fiber :
    5~8μm
  • Water content:
    ≤1%
  • Grade of combustib:
    Non-combustible GradeA

Description


Wanmaide glass wool production lines employing latest-generation technology to manufacture boards, rolled blankets and pipes for residential and industrial thermal and acoustic insulation needs, in compliance with the top international standards (EN, DIN, ASTM).

At the system HOT END, the raw materials are dosed, mixed, melted, fiberized, impregnated with a special binder and formed into a primitive mat of very fine fiber glass. Continuous conveyors transport the mat to the COLD END of the plant for binder polymerization. The product is then cut to shape and packed for shipping.

Wanmaide glass wool production lines range from 5 to 700 tons/day capacity (100,000 to 1,500,000 tons/year), and are fully automated thanks to PLC and Scada systems.

Wanmaide lines comply with the latest international environmental regulations.



Specification


Main Specification
length
1200,1240,12000,12400,23000,other customized
width
600,customized



Item

Unit

Index

density

kg/m³

10--100

average fiber diameter

μm

5--8

water content

%

≤1

grade of combustibility


non-combustible grade A

reshrinking temperature


250--400

thermal conductibility

w/m.k

0.034--0.06

hydrophobicity

%

≥98

moisture rate

%

≤5

sound absorption coefficient


1.03 product reverberation method 24kg/m³  2000HZ

slag inclusion content

%

≤0.3




Glass Wool Insulation Pipe Distinctive advantages:


  Excellent thermal, acoustical properties

  Light weight and easy to fabricate on job site

  Non-combustible and fire-retardant

  Very economical, especially when using thick layers of insulation

  Durable, life-time and termite proof


Glass Wool Insulation Pipe packaging:



WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude  Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.


We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
