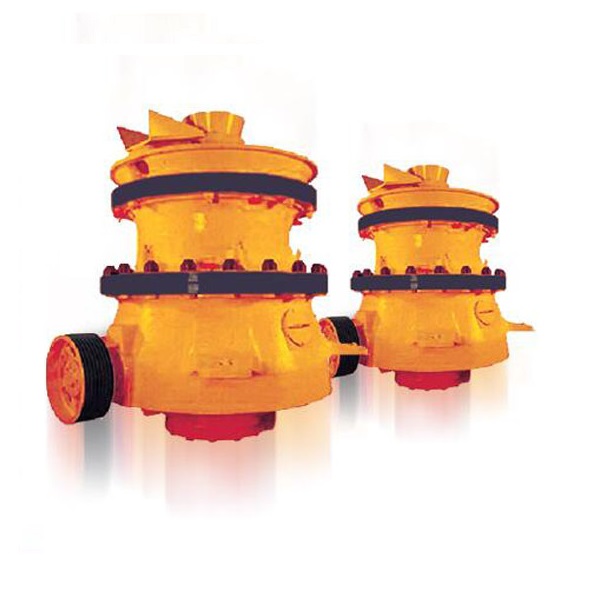

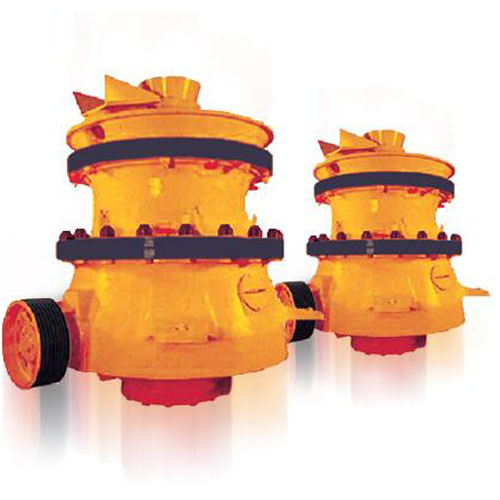

GP single-cylinder Hydraulic Cone Crusher

Payment Terms: TT or LC

Ref Price : 1-1000 USD/SET

Supply Capability : 10000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Product Name:
    GP single-cylinder Hydraulic Cone Crusher
  • Weight:
    5.8-10.9t
  • Power:
    75-90Kw, 200-355Kw

GP single-cylinder Hydraulic Cone Crusher Description:


The single-cylinder cone crusher has changed the fine crushing concept because it applies the most advanced laminating crushing technology to make the breaking particle become more uniform. Due to the high automation degree and suitable eccentric distance, the laminating compression and crushing can be conducted in the specially designed crushing cavity after setting up the discharging port and automatic & uniform feeding. In general, it is used in the second-level and third-level crushing. Therefore, it has been widely applied to breaking the iron ore, cooper ore, limestone, granite and other materials in the building, metallurgy, highway, mine, water conservancy and other fields.



Structural Features:


1. It applies the laminating crushing with regular particle size.
2. It applies the direct metal contact method to make the replacement of dynamic cone plate become more rapid and easier.
3. The high-efficient rotary feeding device can make the liner plate abrasion become uniform.
4. Its purging system can keep the interior clean.
5. It is equipped with the automatic overload protection which can avoid the iron interfusion.
6. It has the spiral bevel gear system which can make the silent operation.


Specification of single cylinder hydraulic cone crusher:


Model Power(kw)

Weihua Crane

Weight(t)
  C. SS
travel
8mm 10mm 15mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm
GP100 75-90 5.8 16mm 40-50 45-55 60-70 80-90 85-95









20mm 50-55 50-60 70-80 95-105










25mm
55-65 75-90 105-120










GP11F 132-160 10.7 20mm 80-100 85-105 105-125 120-145 150-170 170-190








25mm
100-120 130-150 160-180 180-210









30mm

160-180 190-210 210-230









GP11M 132-160 11.9 20mm

105-125 120-145 150-170 170-190 180-200 200-220 220-250





25mm


160-180 200-230 200-230 220-250 250-280 280-310





30mm


190-210 240-270 240-270 270-310 300-340 330-360





GP200 110-160 9.3 18mm 60-70 70-90 80-105 100-125 135-150 160-175 185-200







25mm
90-110 110-130 130-155 160-180 185-210








32mm

140-150 170-190 190-220









40mm


200-220 220-240









GP300 200-250 13.4 25mm 100-120 110-130 135-155 160-180 190-210 210-235 240-260







32mm 110-130 120-150 165-195 195-225 230-260 265-295 300-330







40mm
150-170 205-235 245-275 290-320 325-355








GP550 250-355 26.5 25mm
140-160 160-180 190-210 240-260 270-290 310-330 350-370






32mm

230-250 270-29 310-330 340-370 380-410 430-450






40mm

290-310 320-340 380-410 430-460 480-510







GP1005 75-90 7.35 16mm


80-90 105-115 120-130 135-145 145-165 155-175





20mm



120-130 145-155 160-180 170-200 185-215





25mm




185-195 200-220 210-230






GP2005 110-160 10.9 18mm



110-140 140-170 160-190 180-210 200-230 230-260




25mm




170-220 190-240 210-260 230-280





32mm





230-280 270-320 290-350





GP3005 132-250 16.2 18mm



170-190 170-210 190-230 210-255 235-275 255-295




25mm




220-270 255-315 290-345 320-350 330-350




32mm





360-400 380-420 400-440





40mm






450-500 480-530





GP5005 200-355 33.3 18mm







300-350 325-375 375-425 400-450 425-475 450-500 500-550
25mm








500-550 500-550 600-650 650-700 700-750 750-800
32mm








650-700 650-700 750-800 825-875 900-950
40mm










900-950 975-1050


Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
