High Density 120kg/m3 Rock Insulation Wool Pipes

Payment Terms: TT or LC

Ref Price : 1-2 USD/PIECE

Supply Capability : 15000 PIECE

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    China (Mainland)
  • Type:
    High Density 120kg/m3 Rock Insulation Wool Pipes
  • Length:
    1m
  • Density:
    50-200 kg/m3
  • Average fiber diameter:
    ≤ 7.0 um
  • DN:
    22-620mm
  • Highest Usage Temperature:
    600℃
  • Heat Conduct Coefficient:
    0.043-0.032w/mk

Rock wool Description:



The Rock wool products regard basalt as its main raw materials, after the towering stove is melted, make basalt high-temperature melting body into inorganic fiber with high-speed acentric equipment, put bond, polish, silicone oil in at the mean time. According to different requirements, we can manufacture many kinds of products such as rock wool plate-rock wool tube-rock wool blanket. It is widely used in varies of high-temperature pipe-tank and equipment insulation of the domain of oil chemical metal and so on .Also can be used in thermal insulation of boats and the insulation and sound absorption of the buildings wall and ceiling.

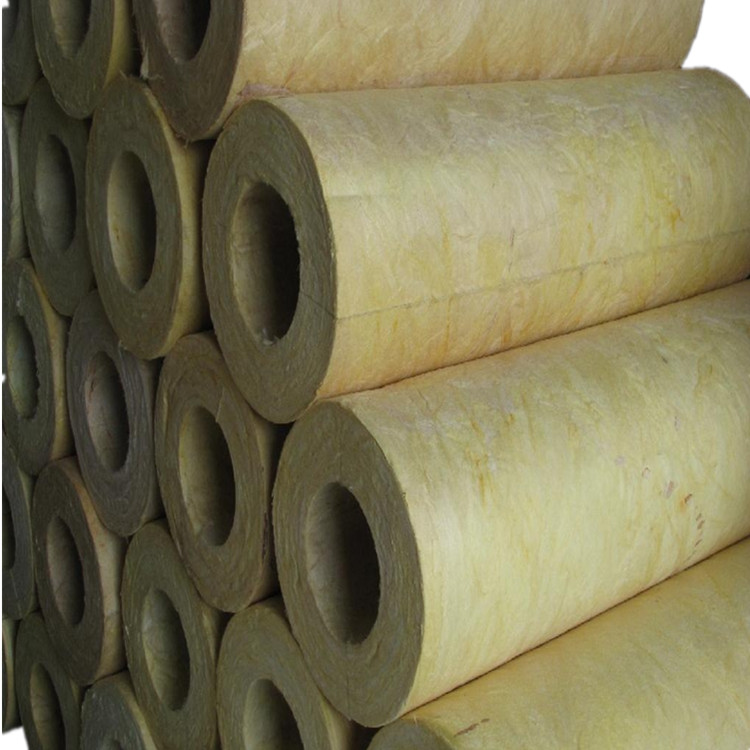

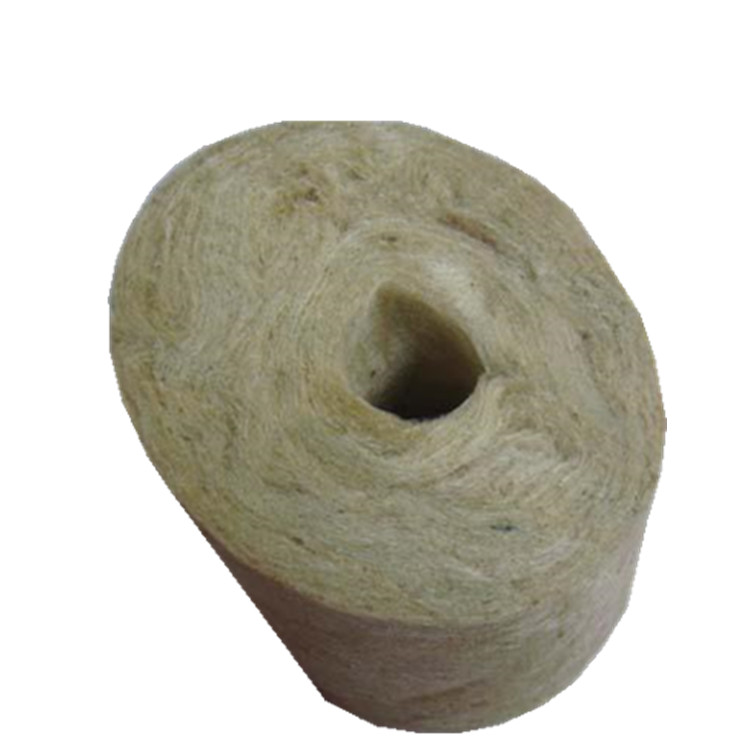

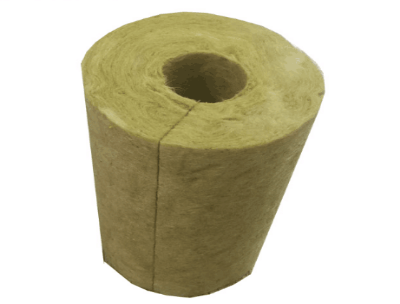

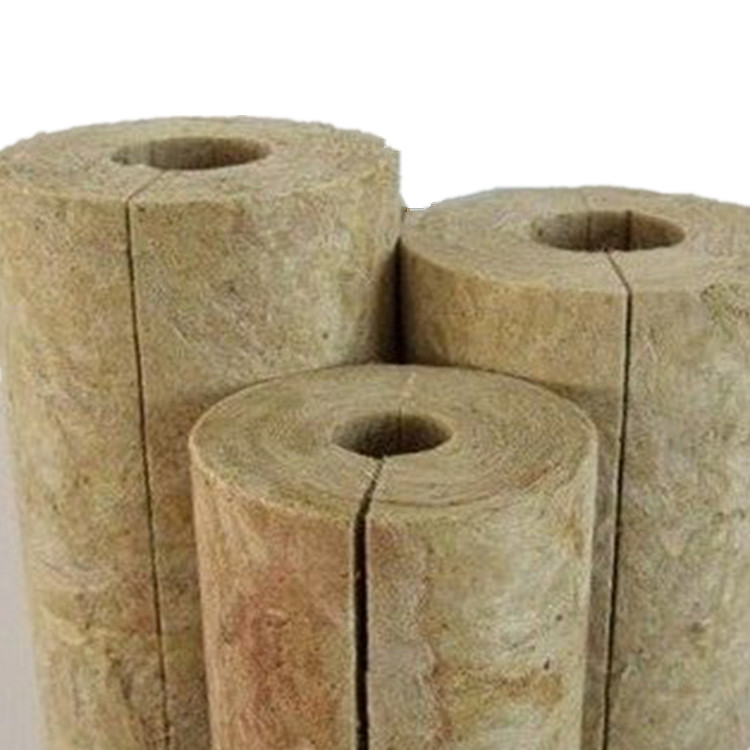

Rock wool Pipe/Tube:



Physical properties:

Density (kg/m3)

60

80

100

140

Thickness (mm)

50-120

50-120

40-100

30-100

DN (mm)

22-620

Service temperature(°C)

≤600 °C

Thermal conductivity: W/m.K(kcal/m.h.°C)

100 °C

0.043~0.037

0.042~0.036

0.041~0.035

0.040~0.034

200 °C

0.061~0.052

0.057~0.049

0.057~0.049

0.054~0.046

300 °C

0.086~0.075

0.077~0.066

0.073~0.063

0.070~0.060

400 °C

0.123~0.106

0.099~0.085

0.095~0.082

0.089~0.077



More technology data:

Fiber Diameter

≤ 6.5 um

Shot Content

≤ 10.0% ( particle diameter≥ 0.25mm)

Density Tolerance

±5%

Water repellence

≥ 98

Water absorption

≤ 2

Moisture Absorption

≤ 0.5%

Combustion Property

Non-combustible (A class)

Organic material

≤ 4.0%

PH

Neutral, 7.0 ~ 8.0

Tensile strength

220 kPa

Compression strength

105 kPa






WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude  Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.

 We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
