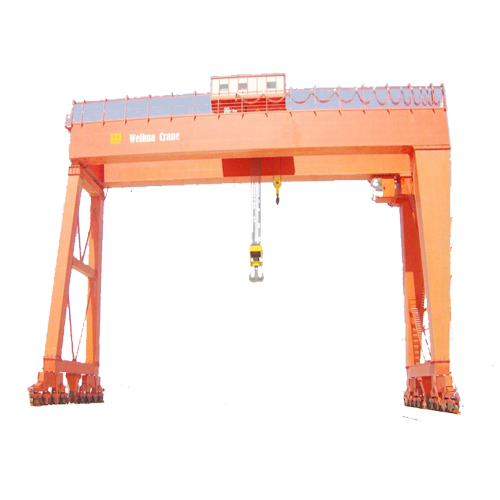

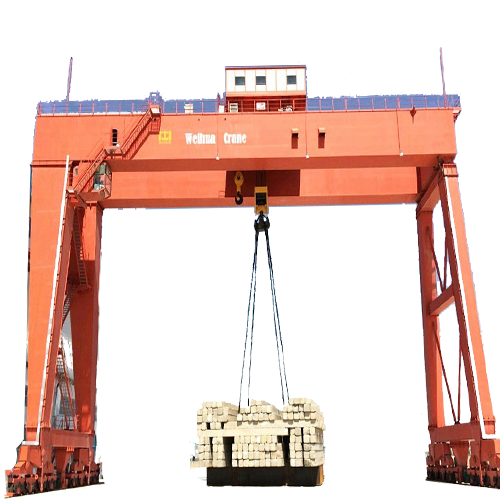

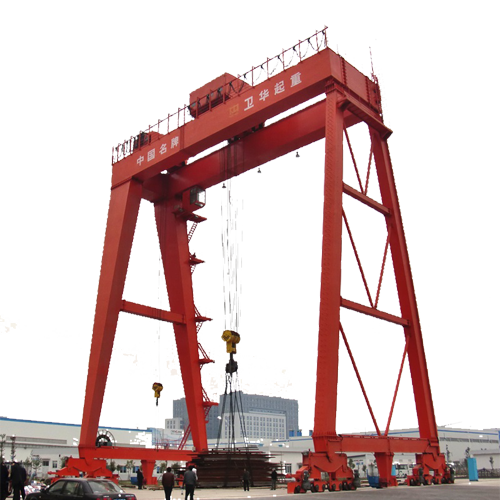

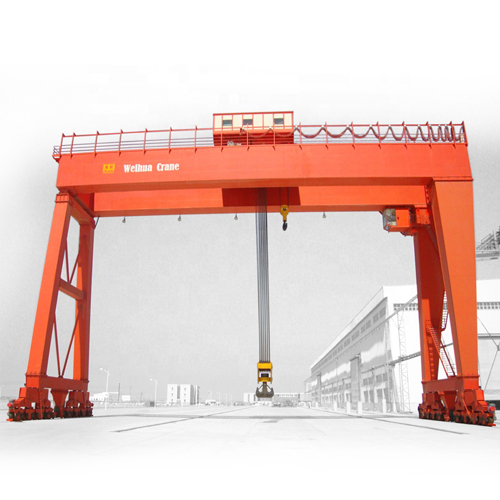

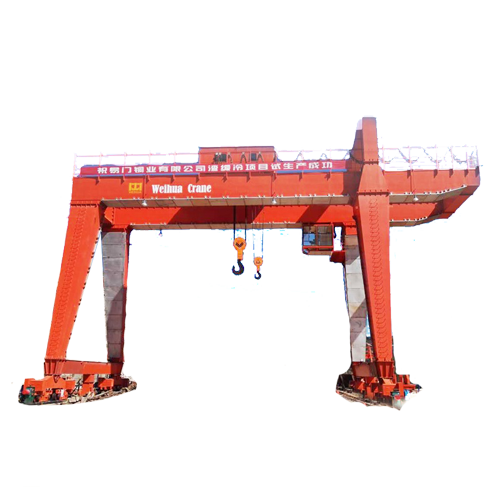

High Quality 50 ton China Double Girder Gantry Crane From Factory

Payment Terms: TT or LC

Ref Price : 100-10000 USD/SET

Supply Capability : 1000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Max. Lifting Height:
    Design
  • Span:
    12-30m
  • Place of Origin:
    Henan, China (Mainland)
  • Feature:
    Gantry Crane
  • Product name:
    50 ton China Double Girder Gantry Crane
  • Certification:
    ISO CE SGS GOST
  • Warranty:
    1 Year
  • Rated Loading Capacity:
    5-500t
  • Application:
    Outdoor
  • Lifting mechanism:
    Wire Rope Electric Hoist
  • Main electrical parts:
    Schneider and Siemens
  • Type:
    Box girder
  • Control Method:
    Remote Control or design
  • Working Temperature::
    -20℃~40℃


General Data

Capacity



(t)



Span



(m)



Lifting



Height



(m)



Work



Duty



Main Hoist



Speed
(m/min)



Aux.Hoist



Speed
(m/min)



Cross Travel



Speed
(m/min)



Long Travel



Speed
(m/min)



Rail



Total Power (Kw)



10



18~35



10



A5



0.78-7.8




3.3-33



3-30



43kg/m



21.74



20/5



18~35



10



A5



0.6-6



0.78-7.8



3.5-35



3-30



43kg/m



39.7



32/5



18~26



10



A5



0.5-5.2



0.78-7.8



3.1-31



3-30



43kg/m



59



26~35



12



50/10



18~26



10



A5



0.4-3.9



0.78-7.8



3.6-36



3-30



43kg/m



71.4



26~35



12



75~1000



Customized


Brief Instruction

The 50 ton China Gantry Crane is designed and manufactured according to the standard JB / T5663-2008 of the Ministry of Machinery Industry of China. CD1, MD1 electric hoists and trolley can be fitted on this crane. The cantilever parts can be designed according to the factory operating space.

The 50 ton China Gantry Crane has latticed structure with a small windward area, light weight, good lifting ability and so on. This henan 10 ton mg port lifting mobile gantry cranes is an ideal lifting equipment employed in the warehouse, freight yard, terminals and other places.

There are two ways of the crane traveling: separated drive and drive brake. This product can be controlled on ground and operating room. The operating room can be open or closed, which can be installed on the left side or right side and there are 3 ways to enter the room, side, end face and top to meet the needs of users in a variety circumstances.

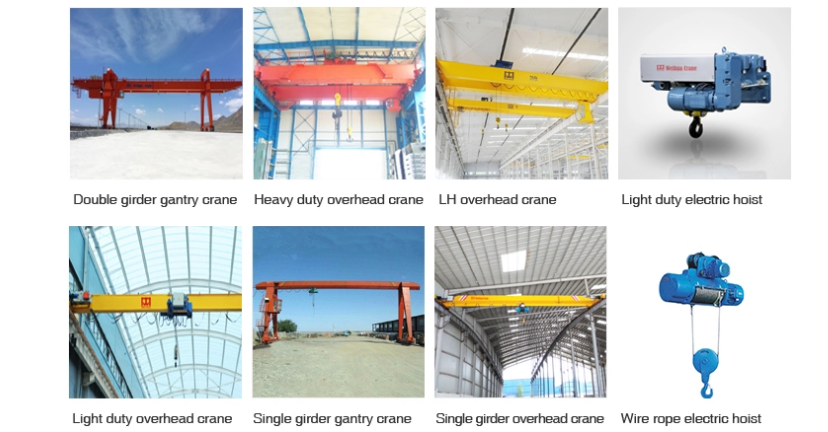

Main Products

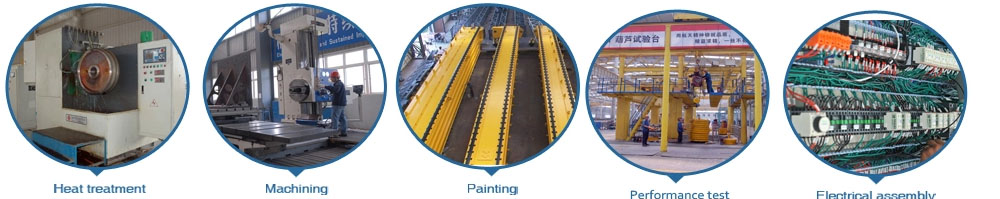

Product Process




Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
