High quality foam/cellular glass panel acoustic board

Payment Terms: TT or LC

Ref Price : 1-10 USD/CUBIC METERS

Supply Capability : 10000 TON

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Place of Origin:
    China (Mainland)
  • Brand Name:
    wanmaide
  • Material:
    glass powder
  • Application:
    Construction material
  • Color:
    Black, grey, etc
  • Thickness:
    20-150mm
  • Density:
    120-160kg/m3
  • Width:
    450mm/500mm
  • Length:
    600mm/620mm
  • Thermal conductivity:
    0.034-0.065w/mk
  • Temperature range:
    -250~450'C
  • Package:
    PE Shrink Package, carton


Foam glass is a new inorganic thermal insulation material.Mainly made from glass powder, it is obtained by meas of baking and bubbling in tunnel kilns before annealing and cooling down.
The cellular glass is both coldness keeping and heat keeping insulation material, which suits for a wide range of working temperature. Meanwhile, its important value lies in the property stability through long service hours. Besides, the material itself is fire protective and shock resistant. When used in low-temperature, underground engineering projects, flammable and explosive, humid environments as well as environments with severe chemical corrosion, this material is not only safe and reliable but durable as well. Therefore, it is known as ""the permanent insulation material that needs no replacement"

Foam glass board

Item

Unit

Size

Length

mm

600, 620

Width

mm

450, 500

Thick

mm

20-150





Foam glass pipe

Item


Unit

Size

Length


mm

500, 600, 630

Inner Diameter

mm

25-219

Thick

mm

30-150


We can make a wide range of shapes and sizes to satisfy industrial and commercial insulation requirements.


Property

Unit

data

Ave.Value


Kg/m3

120-160

Thermal

Ave.Value

W/(mk) (10℃)

0.034-0.065

Hight Single Value

W/(mk) (10℃)

0.042-0.07

Conductivity

Ave.value

Mpa

0.5-2.4

Hight Single Value

Mpa

0.35-1.5

Chloride Content


ppm

≤25

Water Absorption


vol%

≤0.5

Compressive strength


kPa

CS≥600

Bending strength


kPa

BS≥450

Tensile strength perpendicular to faces


kPa

TR≥100

Service temperature limits


-250-450



Feature

1. Low density, low thermal conductivity but high compression strength.
2. No water absorption, no permeability.
3. Low thermal expansion coefficient, no deformation, no crack.
4. Incombustible and corrosion resistance
5. No mildew, no rat biting, no aging and no deterioration
6. Having the same duration with buildings
7. Environmental friendly and recyclable.

Application

Low-temperature pipeline, vessel, equipment and tanks (for storage)

Low-temperature system for hydrocarbon processing;

Refrigerated warehouse and construction;

Low-temperature insulated system for pharmaceutical Industry;

Steel storage tanks and pipes for liquid oxygen and nitrogen;

Underground system and cooling water pipes;

Anti-corrosion lining system inside chimney;

Offshore oil platform;

Circulation and dual temperature system;

Insulation for exterior & interior walls and roofs;

Moistureproof and fireproof isolation for buildings and tunnels;

Sound absorption for any compressor and engine plant.

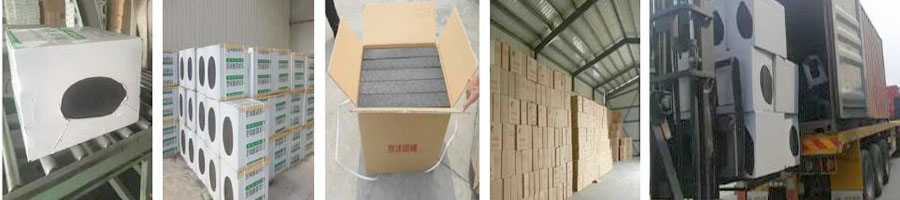

Package: Standard export carton package or PE shrink package, OEM is available. Delivery time: Our powerful production capacity ensures shortest delivery time,

normally 5-7days is enough.






WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude  Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.


We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
