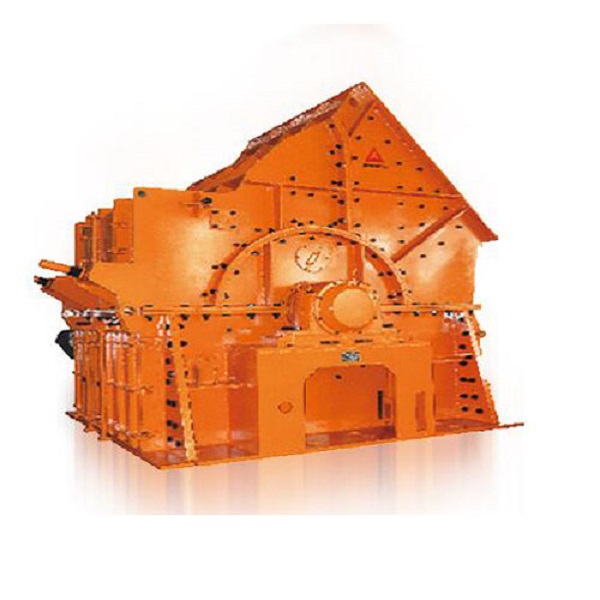

High Quality PCF Single-Segment Hammer Crusher

Please enter your email.


High Quality PCF Single-Segment Hammer Crusher

Payment Terms: TT or LC

Ref Price : 3000-50000 USD/SET

Supply Capability : 50000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Product Name:
    High Quality PCF Single-Segment Hammer Crusher
  • Capacity:
  • Power:
  • Material Size:
    Min. 600*600*600mm; Max. 1,000*1,000*1,500mm

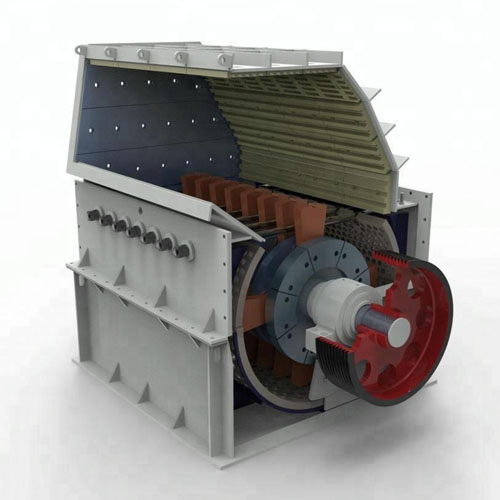

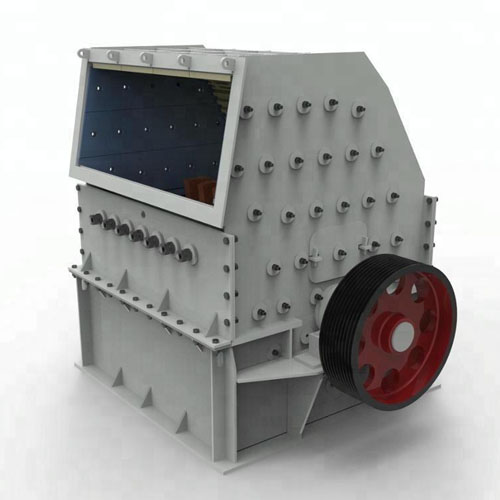

PCF Single-Segment Hammer Crusher Description:

As a kind of heavy-hammer crusher, the single-segment hammer-type crusher is mainly used for crushing the limestone, moreover, the large-scale single-segment hammer-type crusher can directly break the limestone from 1000mm (diameter) to 20mm, therefore, it is suitable for breaking the rocks which have the compressive strengthen of not larger than 200MPa due to its strong crushing capacity.

Structural Features:

1. It has large crushing ratio.
2. The product has uniform particle degree.
3. The feeding materials have large dimension.
4. It has simple structure and reliable operation.
5. It has compact structure and convenient repairing.
6. It has low energy consumption and economic operation costs.

Specification of Single-Segment Hammer Crusher:


Rotor diameter

rotor width (mm)

The maximum

feeding side length (mm)


granularity (mm)


capacity (t/h)





PCF1412 1420x1194 600x600x600 25-75 80-120 220 27
PCF1616 1650x1600 600x600x900 25-75 180-240 315/355 43.3
PCF1818 1900x1750 900x900x1000 25-75 300-350 560 69.5
PCF2018 2020x1802 1000x1000x1000 25-75 350-500 710 88.7
PCF2022 I 2018x2227 1000x1000x1500 25-75 500-600 800 111
PCF2022 II 2018x2227 1000x1000x1500 25-75 600-700 900 122
PCF2022III 2018x2227 1000x1000x1500 25-75 700-800 900 130
2PCF1818 1800x1800 1000x1000x1500 25-75 700-900 710x2 119
2PCF2022 2018x2227 1000x1000x1500 25-75 900-1200 800x2 142.5
2PCF2025 2018x2457 1000x1000x1500 25-75 1000-1300 900x2 148
