Hvacr System NBR Rubber Foam Insulation Pipe

Please enter your email.


Hvacr System NBR Rubber Foam Insulation Pipe

Payment Terms: TT or LC

Ref Price : 1-10 USD/PIECE

Supply Capability : 10000 TON

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    China (Mainland)
  • Brand Name:
  • Material:
    class 1 rubber and plastic insulation material
  • Application:
  • Color:
  • Inside Diameter:
  • Type:
  • Packing:
    Plastic Bag,Carton

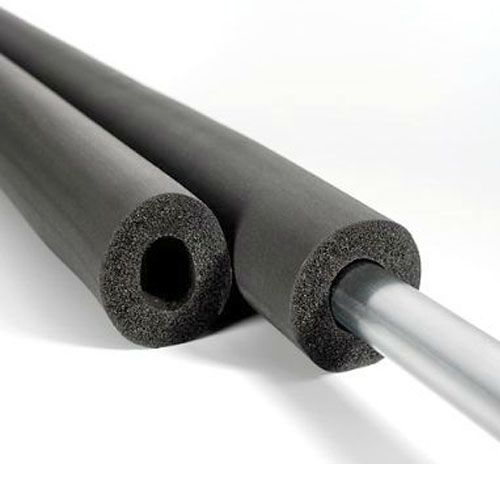

NBR tube/pipe is a black, flexible elastomeric foam tube used to conserve energyand prevent condensation on piping applications. The tube closed cell properties createexceptional thermal and acoustic insulation, protect against moisture penetration and providethe best solution for applications within a -280°F to +221°F temperature range. It is primarilyused in the HVAC/R market and comes in 6 feet or 2 meet length. It is 25/50-rated, accordingto ASTME-84 standards for surface burning characteristics of building materials.

              TECHNICAL DATA

Physical properties
Test method
Cell structure Closed cell -
Density(kg/m3) ≤80 ASTM D 1667
Thermal conductivity BTU.in/ft2.hr.°F(W/m.k) Mean temp -4°F(-20°C) 32°F(0°C) 104°F(40°C) ASTM C177&C518
K-value 0.22(0.031) 0.23(0.033) 0.26(0.037)
Water vapor permeability (g/m.s.Pa) 1.92x10-11 ASTM E96
Moisture resistance(µ value) µ≥12000 DIN 52615
Flammability Smoke Density V-0 UL-94
25/50 ASTM E84
Self Exitinguishing ASTM D635
Class 0 / Class 1 BS 476: Part6 / Part 7
Pass IMO FTPC Annex 1 Part5
Water Absorption(weight %) ≤9 ASTM D1056
Flexibility Excellent -
Ozone Resistance No cracking ASTM D1171
Mildew Resistance No fungal growth -
Weather & UV Resistance Good -
Chemical Resistance Good -
Service temperature -58°F to+221°F(-50°C to ~105°C) -

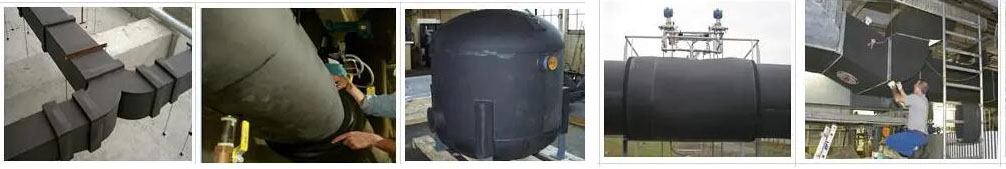

Application of Rubber foam pipe


WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude  Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.

We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
