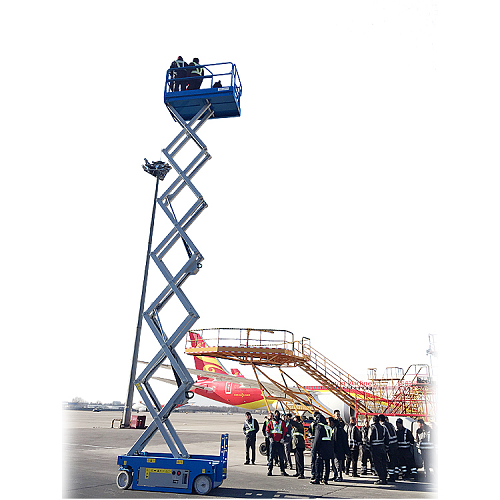

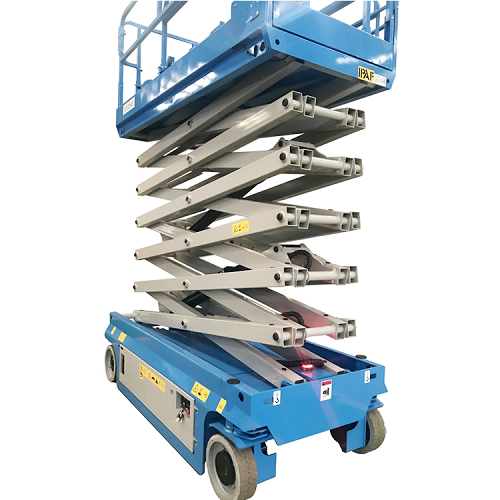

WeiHua Brand Hydraulic lift truck electric scissor lift
Payment Terms: TT or LC
Ref Price : 500-8000 USD/SET
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Product Name：Hydraulic lift truck electric scissor lift
-
Model Number：SJG
-
Rated Loading Capacity：3000kg
-
Max. Lifting Height：16m
WeiHua Brand Hydraulic lift truck electric scissor lift Quick Details:
Applicable Industries:Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Home Use, Printing Shops, Construction works , Advertising Company;
Lift Drive / Actuation:Hydraulic;
Power:2.2kw;
Min. Lifting Height:200mm;
Table Size:CUSTOMIZED SIZE;
Overall Dimensions:2500*1350*2300mm;
Weight:1200kg;
Capacity:1-8ton;
Warranty:1 Year;
Voltage:110v 220v 240v 380v Optional;
After-sales Service Provided:Online support;
Certification:ISO;
Material:High-duty Steel Structure;
Type:SYG;
Feature:Easy Operation Safety Convenience;
Color:Blue/Orange red;
Place of Origin:Henan, China (Mainland);
Brand Name:Weihua.
Quality Hydraulic lift truck electric scissor lift product details:

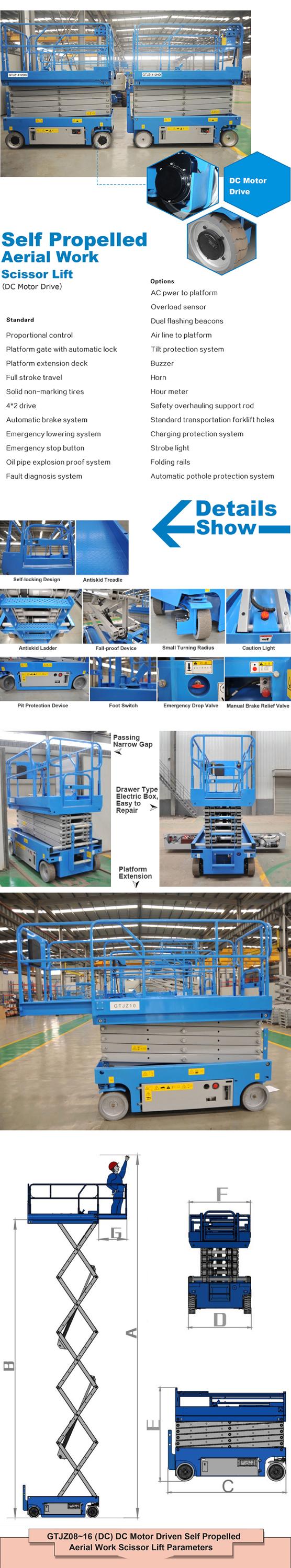

Hydraulic lift truck electric scissor lift specification：
| items | 07series | 08series | 12series | 14series | ||||
| models | GTJZ | |||||||

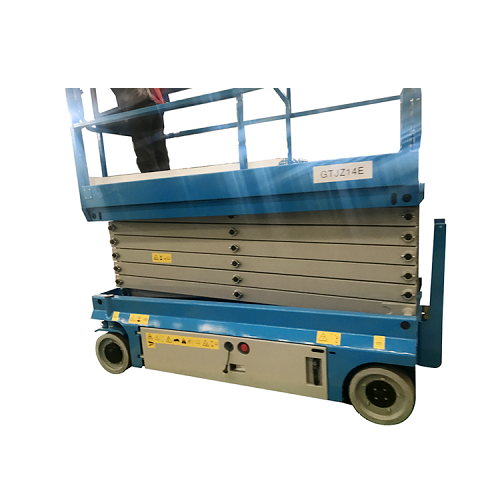

| 0807DC | 0808DC | 1008DC | 1012DC | 1212DC | 1412DC | 1414DC | 1614DC | |
| capacity | 230kg | 380kg | 230kg | 450kg | 320kg | 320kg | 450kg | 200kg |
| Capacity-extension deck | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max occupancy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
|
Max working height-A |
7.80m | 8.20m | 10.10m | 10.10m | 12.00m | 13.80m | 13.50m | 15.70m |
|
Max platform height-B |
5.80m | 6.20m | 8.10m | 8.10m | 10.00m | 11.80m | 11.50m | 13.70m |
| Length-C | 1.86m | 2.42m | 2.42m | 2.42m | 2.42m | 2.42m | 2.79m | 2.79m |
| Width-D | 0.76m | 0.83m | 0.83m | 1.17m | 1.17m | 1.17m | 1.27m | 1.27m |
|
Height(raillings unfolded) |
2.19m | 2.24m | 2.37m | 2.36m | 2.49m | 2.62m | 2.49m | 2.62m |
|
Height-E (railling folded) |
1.85m | 1.94m | 2.07m | 1.80m | 1.93m | 2.06m | 1.93m | 2.06m |
|
Platform size (L×w-F) |
1.67m× 0.74m |
2.27m× 0.83m |
2.27m× 0.83m |
2.27m× 1.14m |
2.27m× 1.14m |
2.27m× 1.14m |
2.64m× 1.14m |
2.64m× 1.14 m |
|
Extension deck size -G |
0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m |
|
Ground clearance (stowed) |
0.10m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m |
|
Ground clearance (elevated) |
0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m |
| wheelbase | 1.40m | 1.87m | 1.87m | 1.87m | 1.87m | 1.87m | 2.24m | 2.24m |
|
Min turning radius (inside) |
0m | 0m | 0m | 0m | 0m | 0m | 0m | 0m |
|
Min turning radius (outside) |
1.60m | 2.25m | 2.25m | 2.23m | 2.23m | 2.23m | 2.25m | 2.25m |
| Driving motor | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw |
| Lifting motor | 24V/2.0kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw |
|
Driving speed (stowed) |
4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h |
|
Driving speed (elevated) |
0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
|
Lifting/lowering speed |
18/22sec | 24/34sec | 28/40sec | 28/40sec | 45/36sec | 50/38sec | 60/45sec | 80/60sec |
| batter |
4×6V/ 225Ah |
4×6V/ 225Ah |
4×6V/ 225Ah |
4×6V/ 225Ah |
4×6V/ 240Ah |
4×6V/ 260Ah |
4×12V/ 300Ah |
4×12V/ 300Ah |
| charger | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A |
|
Max gradeability |
0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Max tilt | 3°/1.5° | 3°/2° | 3°/1.5° | 3°/2° | 3°/2° | 3°/1.5° | 3°/2° | 3°/1.5° |
| tires |
Φ323× 100mm |
Φ381× 127mm |
Φ381× 127mm |
Φ381× 127mm |
Φ381× 127mm |
Φ381× 127mm |
Φ381× 127mm |
Φ381× 127mm |
| Weight | 1260kg | 2020kg | 2140kg | 2270kg | 2520kg | 3140kg | 3060kg | 3220kg |
Electric Lift Mobile Hydraulic Man Lift Running Models：
