Industrial Supply Intelligence Rotary Car Parking System Price From China

Payment Terms: TT or LC

Ref Price : 1-12 USD/SET

Supply Capability : 350 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Type:
    Parking Lift
  • Place of Origin:
    Henan, China (Mainland)
  • Brand Name:
    WEIHUA CRANE
  • Model Number:
    PCX
  • Warranty:
    1 Year
  • Loading Capacity:
    1.8t
  • Product Name:
    Intelligence Rotary Car Parking System
  • Occupy Space:
    6.5m*5.5m
  • Equipment Total Height:
    9.7-17.3m
  • Equipment Total Weight:
    153.-33.56t
  • Car Quantity:
    8-16
  • Motor Power:
    7.5-15KW
  • Cycle Speed:
    4.4-5.5m/min
  • Max Time for Take Out Car:
    87-148s
  • Frame Structure:
    Column Square Cube
  • Control Method:
    PLC Control

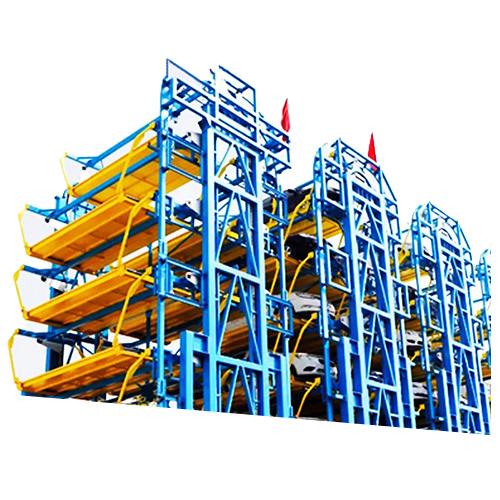

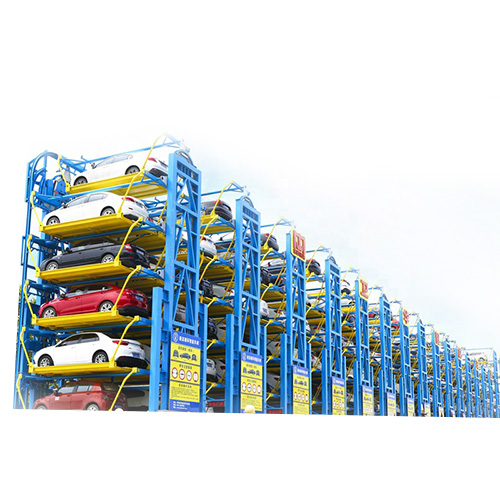

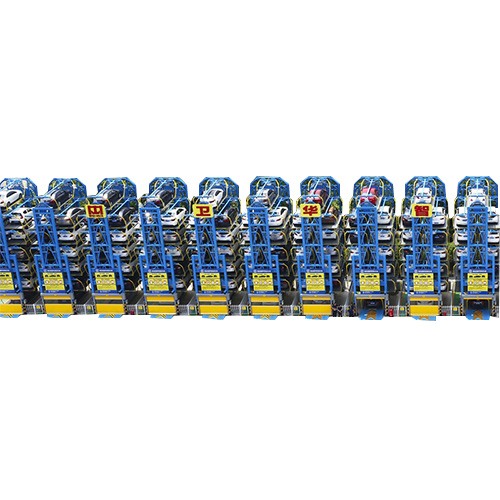

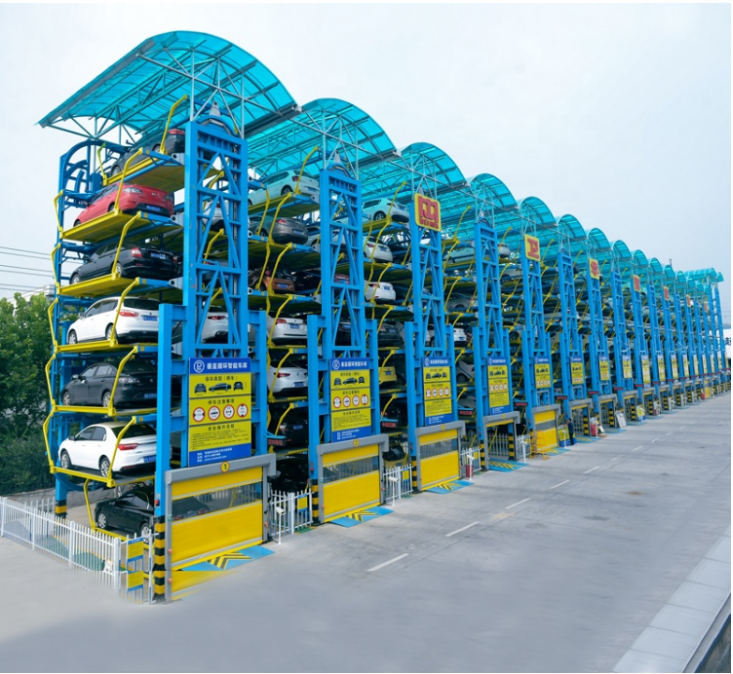

Intelligence Rotary Car Parking System Product Description:


PCX8D-16D(Sedan)Cars Vertical Rotary Parking Equipment Technical Parameters
Item Name Technical Parameter and Instruction
Model PCX-8D PCX-10D PCX-12D PCX-14D PCS-16D
Car Dimension  L*W*H=5300mm*1850mm*1600mm
Car Weight  1.8t 1.8t 1.8t 1.8t 1.8t
Occupy Space 6.5m*5.5m 6.5m*5.5m 6.5m*5.5m 6.5m*5.5m 6.5m*5.5m
Equipment Total Height 9.7m 11.58m 13.51m 15.44m 17.3m
Equipment Total Weight 15.3t 19.4t 23.64t 29t 33.56t
Car Quantity 8 10 12 14 16
Motor Power 7.5KW 7.5KW 9.2KW 11KW 15KW
Cycle Speed 4.4m/min 4.4m/min 4.4m/min 5.5m/min 5.5m/min
Max Time for Take Out Car  87s 120s 135s 145s 148s


This vertical mobile stereo parking equipment combines the advantages of vertical lifting, horizontal movement and roadway stacking parking equipment. Vehicles can move quickly in horizontal and vertical direction through the lifting platform.

It has more parking spaces in a single layer than tower parking equipment. 6-10 parking spaces in one layer, and its max layer could reach 16.

In this PCY parking equipment, the average space only occupies 1.2m² for parking one sedan. Compared with horizontal movement and roadway stacking parking equipment, it’s much smaller, and its space utilization rate is much higher.

No more than 90 seconds to park or fetch a car, this PCY parking equipment can be widely used in banks, hotels, hospitals, government agencies, schools and residential areas.

Main Features of Intelligence Rotary Car Parking Equipment:

1. New developed high levels commercial parking design

2. 35 levels above ground maximum

3. Comb pallet for better vehicle tires protection

4. Both hydraulic cylinder and traction drive available for your choice

5. Fast elevating speed

6. Patented hydraulic variable frequency speed control technology to smoothly approaching ground

7. Central hydraulic power pack and control panel, with PLC control system inside

8. Code, IC Card and manual operation available

9. 2000kg capacity as standard, and 2500kg capacity available

10. Hydraulic overload protection

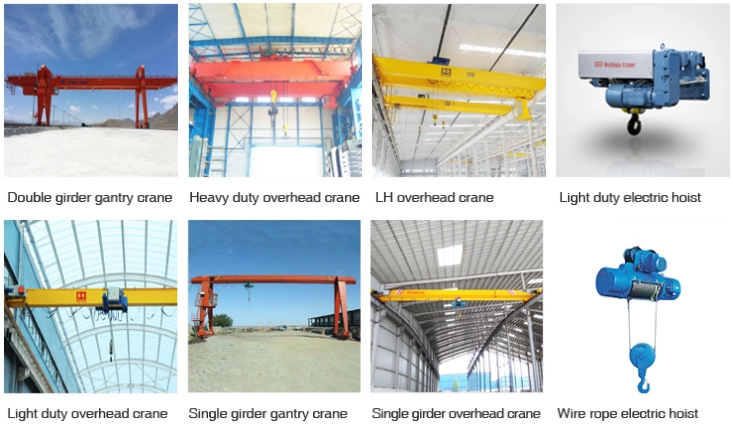

Other Products



Questions:

1.What about the structure parts?

100% structure parts adopt laser cutting process.We are the only manufacturer in China to do such

production when our competitors use regular cutting process or partial laser cutting process.

2.What is the warranty time?

All of our products has at least 1 year parts warranty,and 10 years structure warranty.

3. How the customers to know our shipping report?

Our customer have rights to know how the packages they are getting will look like, and how the packages are shipped out. Our Packing & Shipping Report includes both videos and photos to show customers their products clearly.

4. If the customers doesn't know how to install the products?

All the products come with the detailed installation and maintenance instruction. In case the customer need more help on the installation, we can send out our engineers to the job site for the on-site supervision and instruction.

5. Whether the customers have free drawing services?

Yes. You give us the layout; we will give you the completed drawing. Now the drawing services are absolutely free to our return customers.

6. What solutions can we provide to our customers?

Our sales reps and engineers can help the customer to determine the most suitable parking equipment and solutions based on the customers’ demand, budget and the job site condition. They are fully prepared to answer any technical related question from our customers.

7. Who is in charge of installation work?

We will send a skilled engineer to guide and assistant the installation working.


Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
