insulation glass wool board of building material /glass wool ceiling insulation

Please enter your email.


insulation glass wool board of building material /glass wool ceiling insulation

Payment Terms: TT or LC

Ref Price : 1-10 USD/TON

Supply Capability : 10000 TON

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    China (Mainland)
  • Model Number:
    Glass Wool
  • Type:
    Other Heat Insulation Materials
  • Material:
  • Name:
    High insulating material glass wool
  • Certificate:
    UL94/BS476/ASTM E84/ISO/BV
  • Thickness:
  • Density:
  • Length:
  • Width:

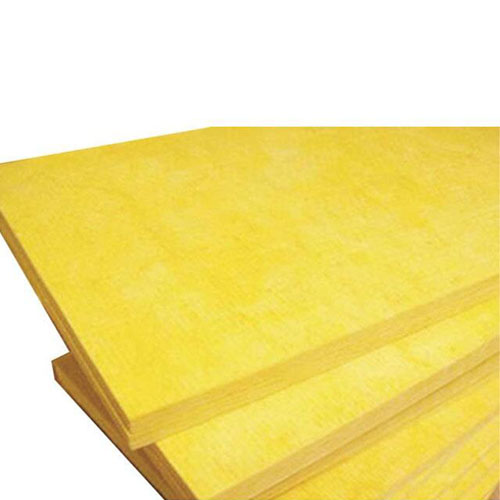

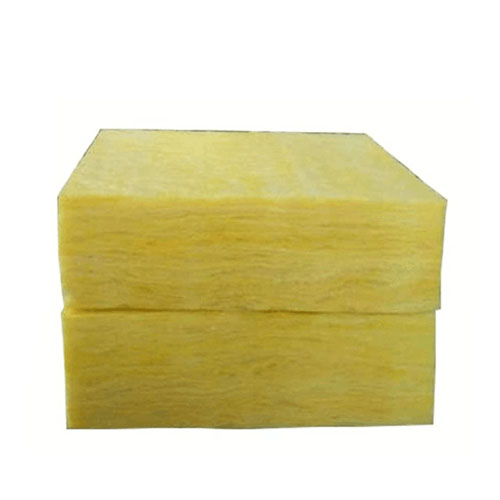

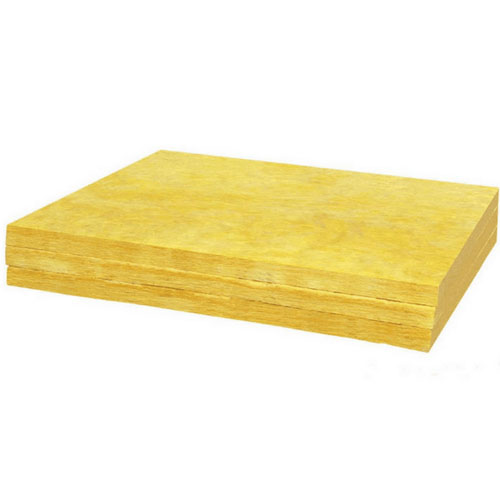

glass wool is the silk-like material made by fiberizing melted glass and then coated with thermosetting resin through centrifugal blowing process. After further processing, this material could be made into series of products for multiple purposes such as glass wool blanket, board, and air conditioning board, and fiberglass duct, refractory glass wool. It features numerous advantages including non-combustible, non-toxic, resistant to corrosion, low density, low thermal conductivity, stable chemical property, low moisture rate and good hydrophobic etc. It is widely recognized as the heat-preservation, thermal insulation and sound absorption material with excellent. The blanket, board and pipe products made of this material have been used in heat preservation, thermal insulation and sound absorption in construction, chemical industry, electronic industry, electric power, metallurgy, energy industry and communication presenting very good result.


It is the best material used for the insulation and sound absorption of steel structures. It is widely used in the industrial plant, public facility, warehouse, exhibition center's, shopping mall, cold store and a variety of indoor playground, sports ground, and other buildings. Meanwhile, it can save energy, absorb sounds and improve the indoor air quality in many degrees.



Item Index Unit Standard
Density 10~80 kg/m3 GB-T 5480.3
Moisture rate ≤5 % GB-T 5480.7
Water content ≤1 % GB-T 16400-2003
Hydrophobicity % GB-T 10299
Thermal conductivity 0.033~0.052 W/M.K GB-T 10294
Slag inclusion content ≤0.4 % GB-T 5480.5
Average fiber diameter 4~9 μm GB-T 5480.4
Reshrinking temperature 250~350 GB-T 11835-2007
The grade of combustibility Non-combustible grade A
GB-T 8624-2012
Sound absorption coefficient 1.03 product reverberation method 24kg/m3 2000HZ



Product specification
Product  Thickness (MM) Width (MM) Length (M) Density(KG/M3)
Glass wool blanket 25,30,40,50,75,100,150 1200 11,20 12,16,20,24,32,40,48
Glass wool board 20,25,30,40,50,75,100 600~1200 1.2~2.4 24,32,40,48,56,64,80,96
Glass wool batt 100~200 410~610 1.16~1.2 10~48

(1)Perfect sound absorption performance.

  • Effectively eliminate and control of pipeline system noise;

  • High-density 64kg/m³ and thickness 50mm can reduce 20db noises.

(2)NFTC's A grade non-combustible product(GB 8624-2012).

(3)Thermal insulation.

(4)Non-toxic & Partly formaldehyde-free.

(5)High reshrinking temperature(250~350 ℃ ).

(6)Waterproof & anti-moisture.

(7)Resistant to corrosion.

(8)Low density.

(9)Stable chemical property.

(10)Easy to install.

Our products are widely used in for metal structure buildings' roof and exterior walls such as commercial building, warehouse, plant, stadium, exhibition center, shopping mall, public facilities, cold stores and a variety of indoor playground, sports ground, etc.

  • Heat preservation and sound absorption for steel structure building.

  • Heat insulation for wall, ceiling, and roof of the house to save energy.

  • For indoor partition wall, wall interior partitions, train compartment.

  • For cool-making and high buildings required to be fireproof, heat resistant & sound insulating.


WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude  Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.

We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
