L Type Single Girder Gantry Crane

Payment Terms: TT or LC

Ref Price : 1300-15000 USD/PIECE

Supply Capability : 1200 PIECE

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Product Name:
    L Type Single Girder Gantry Crane
  • Lifting Capacity:
    5t-50/10t
  • Span:
    18-22m, 30-35m
  • Lifting Height:
    10, 11, 12m

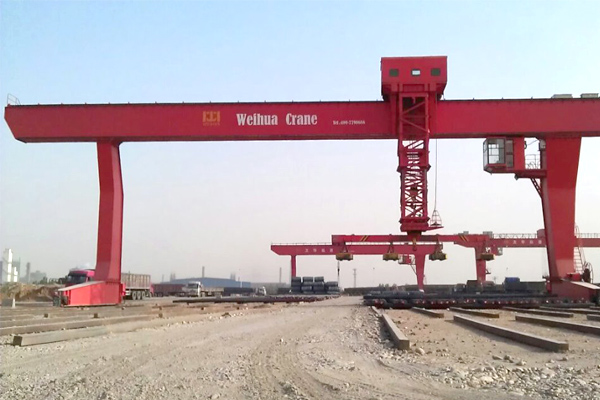

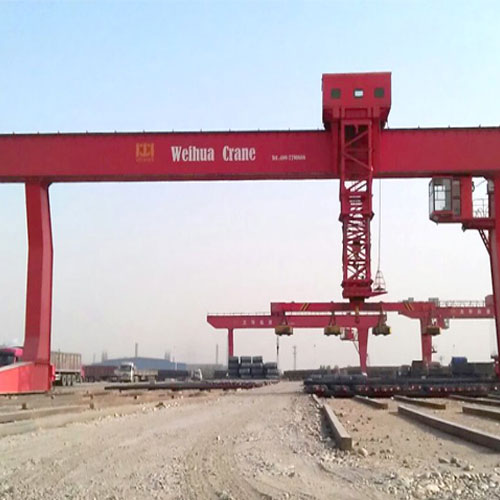

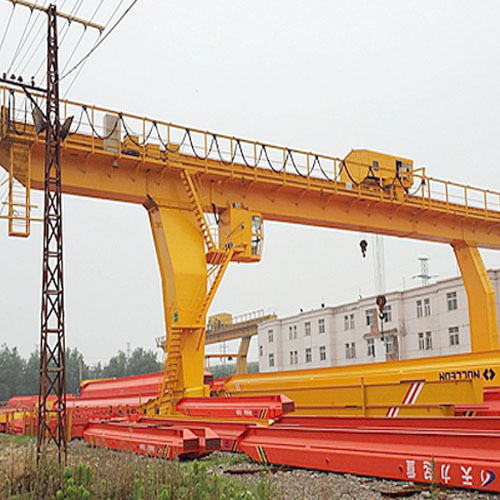

L Type Single Girder Gantry Crane Description:

The L-shaped single girder gantry crane with hook is a kind of bridge type crane with horizontal bridge frame which is arranged on two legs to form the shape of the gantry. It is easy to manufacture and install, and its own quantity is small. The main beam is mostly a derailed box-shaped frame structure. The bridge of the single girder bridge crane runs longitudinally along the rails laid on the elevated rails on both sides, which can make full use of the space under the bridge to lift the materials without being obstructed by the ground equipment, greatly reducing the labor intensity of the loading and unloading workers and improving the operation of the workers. Conditions, improve the production capacity and labor productivity of loading and unloading operations, is the key lifting equipment for packaging construction quality and efficiency. It is suitable for handling and transportation operations in outdoor, warehouse, seaport cargo areas, railway stations, etc. The single-girder gantry crane can also be used for special operations with hooks, a variety of special spreaders.





Power supply can be two forms: cable car and cable reel, customers can choose one of them. And the specifications, installation location of the cable reel can be based on the specific situation.





This single girder gantry cane is equipped with closed cab, and there is cabs with heat preservation for selection. The L type gantry crane has the features of easy installation, big clearance, good operation vison, integrated console control and reasonable whole institutional arrangement.

Features of L type Single Girder Gantry Crane:


1. Good operation vision of cab, equipped the internal linkage control console, flexible and comfortable operation, install of fan, heater, cooler, air-conditions and intercom  according to the customers' requirements;

2. Box type girder, L type legs with weld structure, Increasing he work space, and convenient for installation and maintenance;

3. Components standardization, seriation and generalization;

4. Trolley power supply adopts profiled rails, safety slide line and the cable conductive device system;

5. Crane power supply can be from cable reel (left and right) and sliding line( left and right);

6. Customized according to the users' needs of working environment, types of power source and the other technical requirements. Also design and manufacture span according to users' requirements.



L Type Single Girder Gantry Crane Specification:


Lifting capacity

(t)

Span

(m)

Lifting height

(m)

Work duty

Main lifting

(m/min)

Deputylifting

(m/min)

Trolley travelling

(m/min)

Crane travelling

(m/min)

Power

(KW)

Rail type

5

18~22

10

A5

9.2

--

36.6

46.3

27.8

43Kg/m

26~35

11

40.1

36.8

10

18~22

10

8.5

--

39.7

39.6

38

26~35

11

40.1

47

16/3.2

18~26

10

7.9

11.2

39.5

40.1

64.6

30~35

11

47.1

75.6

20/5

18~26

10

7.1

9.2

39.3

40.1

67.3

30~35

11

47.1

78.3

32/5

18~22

10

6.3

9.2

38.6

48.2

85.5

QU80

26~35

11

38.6

93.5

50/10

18~26

10

5.9

8.5

38.5

39.7

141

30~35

12

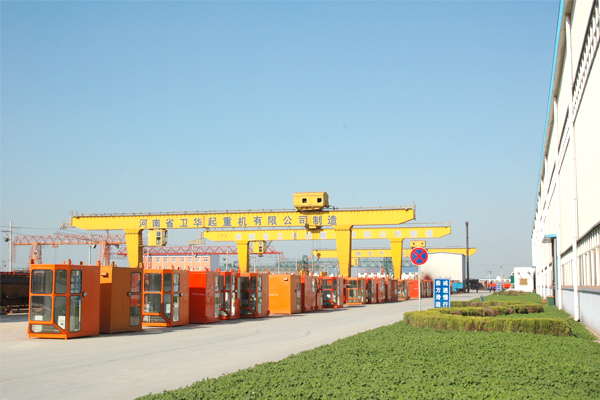

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
