Tianjin Baolishengni Plastic Pipe Made Co Ltd

Large Diameter 300mm Construction Polyethylene HDPE Double Wall Corrugated Pipe For Sale

Payment Terms: TT or LC

Ref Price : 10-12000 USD/METERS

Supply Capability : 10000 METERS

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Condition:
    New
  • Material:
    high density polyethylene
  • Specification:
    200mm-800mm
  • Length:
    high density polyethylene
  • Specification:
    200mm-800mm
  • Length:
    6meter/piece
  • Thickness:
    1.1mm-4.5mm
  • Standard:
    GB
  • name:
    Large Diameter 300mm Polyethylene HDPE Double Wall
  • Color:
    outer layer black, inner layer orange
  • ring stiffness:
    SN4,SN8
  • Application:
    municipal sewage, rainwater, discharge, drainage
  • type:
    corrugated round pipe
  • usage:
    irrigation, industrial waste discharge

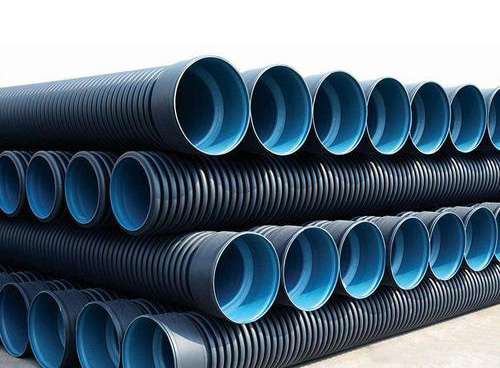

Product  show

Product Detail


Specifications


Nominal diameter


TheMinimum average diameter

 the minimum inner wall thickness



 the minimum wall thickness

Of laminate

 Length of engagement

200mm

195mm

1.1mm

1.5mm

54mm

300mm

294mm

1.7mm

2.0mm

64mm

400mm

392mm

2.3mm

2.5mm

74mm

500mm

490mm

3.0mm

3.0mm

85mm

600mm

588mm

3.5mm

3.5mm

96mm

700mm

685mm

4.0mm

4.0mm

102mm

800mm

785mm

4.5mm

4.5mm

118mm


Physical and mechanical property

 Item

 index

Ring stiffness

SN4>=4KN/m2

SN4>=4KN/m2

TIR%

impact property

<=10

 Ring flexibility


The sampie is smooth without reverse bending, no breaking,double-wall has no disconnection

 Oven test


No bubbles, no layering and no cracking

 Creep ratio

<=4

Compared with other pipes

1. Flow Comparison

HDPE high density PE double-wall corrugated pipe: The absolute roughness of inner wall is only 0.009mm,minimum friction resistance coefficients, and it wont be changed with time during the term of use. In graveity flow systerm, equal flow required, so the required inner dinemeter of PE double-wall corrugated pipe should be smaller than pipes in other materials. After caculation, it shows that if we want equal flow, the inner diameter of PE double-wall corrugated pipe is only 96% of stainless steel pipe, 87.7% of nodular cast iron pipe and 90.6% of cement pipe, which means we could save large amount of engineering material when use PE double-wall corrugated pipe.


2.  Comparison with construction process


Open slot-straight-through base formwork-get through base -maintaince -put pipe-fix pipe-put up sioping wall formwork-put concrete on sloping wall-Backfill-Close water-laying inspection well-interface butt and strap-maintence



Construction process chart of HDPE high density PE double-wall corrugated pipe

Open slot-sand cushion-put pipe-interface connection-laying inspectionwell-closed water-backfill

comprehensive comparison


item

PE

PE Corrugated pipe

  u-pvc pipe

 Concrete pipe

Corrosion resistance


It has strong acid and alkali corrosion resistance, it wont be corroded in sea water, acid and alkali soil.


Better


No acide and alkali

Corrosion resistance, the serious will occur leakage and underground pollution


Impact Resistance


Good impact resistance


It will have crack and risk of break under impact of hard things. Bad impact resistance.


Better


Application property


Save mechanical expenses,easy connection, it has gurantee for construction quality in water(The minumum work temperature is -30),good application property, especially suitable for northern area



Connect by rubber plastic ring of bonding easier construction, but no guarantee for construction quality in winter(The minmum work temperature is 5


Heavu material, transportation and construction are not easy. Bad operating in manual connection

Economy




Lower comprehensive construction coast


Lower comprehensive construction coast


Low material cost, but higher expenses on maintence and opearation


Hygienic property


Non-toxic, no pollution, well-known and best hydienic property


After the waster pipe burnt, it will release heavy metal smoke and pollute the environment


It has water leakage phenomenon, which will pollute environment


Service life


More than 50 years


50 years


10-20 years

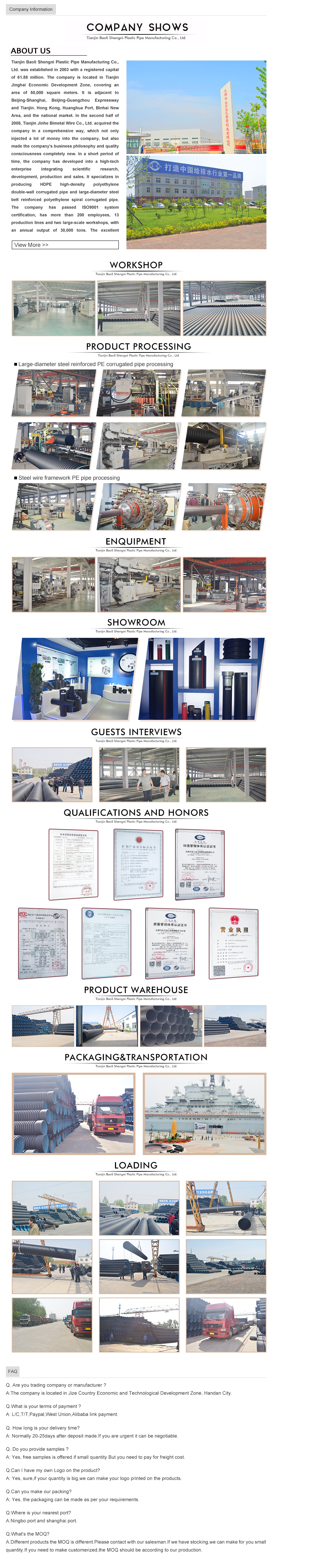

Tianjin Baoli Shengni Plastic Pipe Manufacturing Co., Ltd. was established in 2003 with a registered capital of 61.88 million. The company is located in Tianjin Jinghai Economic Development Zone, covering an area of 50,000 square meters, close to Beijing-Shanghai, Beijing-Guangzhou Expressway and Tianjin. Hong Kong, Huanghua Port, Binhai New Area, and the national market. In the second half of 2008, Tianjin Jinhe Bimetal Wire Co., Ltd. completely acquired the company, which not only injected a lot of money into the company, but also made the company's business philosophy and quality consciousness completely new. In a short period of time, the company has developed into a high-tech enterprise integrating scientific research, development, production and sales. It specializes in producing HDPE high-density polyethylene double-wall corrugated pipe and large-diameter steel belt reinforced polyethylene spiral corrugated pipe. The company has passed ISO9001 system certification, has more than 200 employees, 13 and two large-scale workshops, with an annual output of 30,000 tons. The excellent products and perfect services have been recognized by local merchants.

    The company adopts internationally advanced technology and equipment to produce new green environmental protection pipe. This product is a national-level torch promotion project and is a new type of pipe that the country vigorously promotes.

    Our company pays attention to quality, focus on management, guarantees with strong technical force, adopts strict quality management system, and provides users with all-round technical support according to the standards of “new technology, high quality” and our sincerity and confidence. service.
