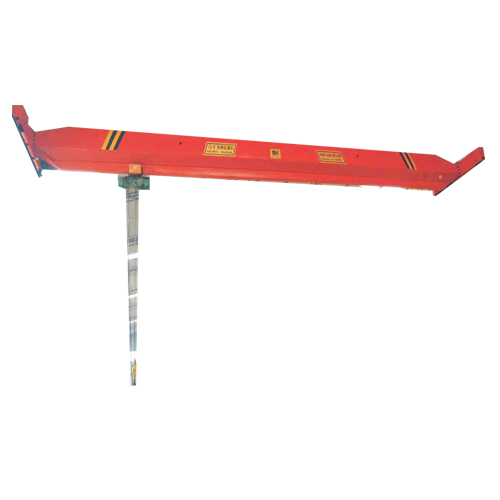

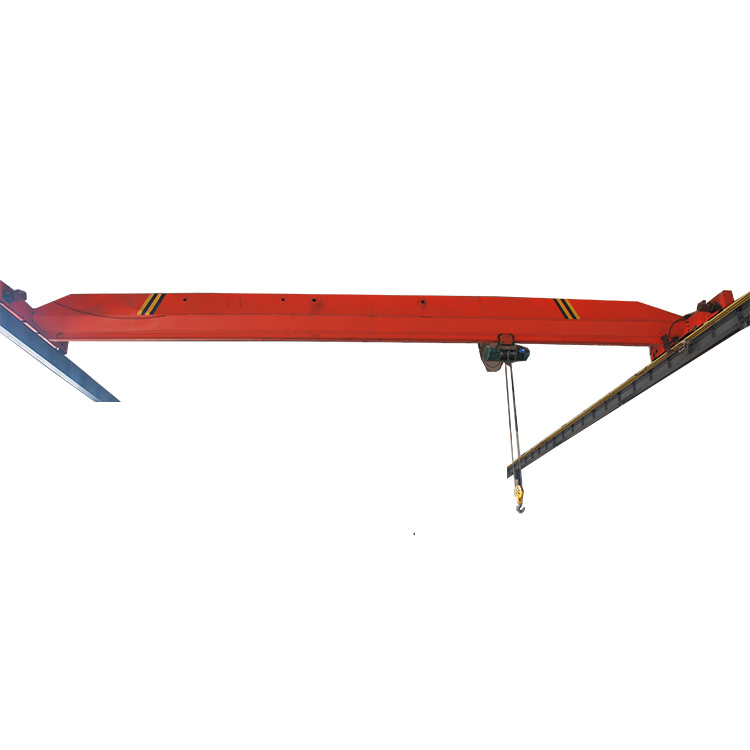

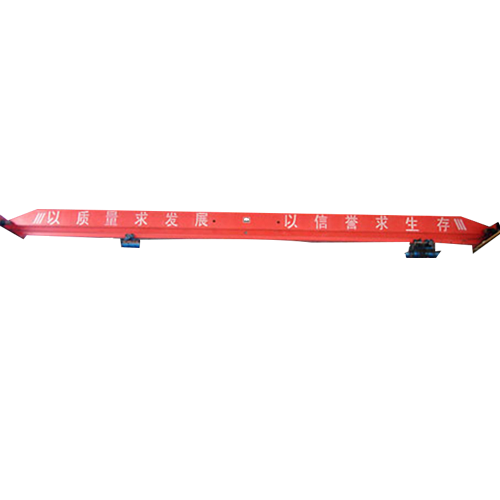

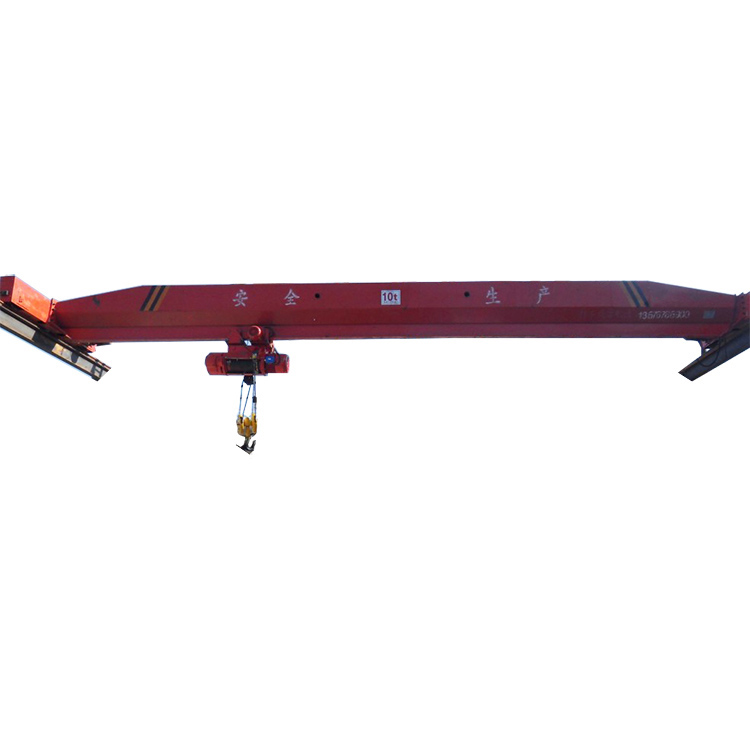

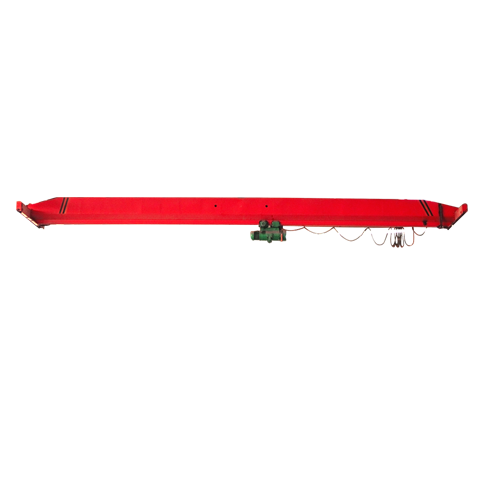

Light Simple Crane Design From China Factory Price

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 3000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Feature:
    Suspension crane
  • Rated Loading Capacity:
    250kg
  • Application:
    Glass factory, small warehouse
  • Max. Lifting Height:
    6m
  • Span:
    7.5-22.5m
  • Place of Origin:
    Henan, China (Mainland)
  • Brand Name:
    WEIHUA
  • Certification:
    ISO9001 ISO14001 OHSAS CE
  • Working class:
    A3,A4
  • lifting speed:
    8;8/0.8m/min
  • lifting height:
    as your requirement
  • working system:
    intermediate Fc=30%
  • Powder:
    three-phase 380V,50HZ
  • Warranty:
    12 month


Features

1.Good reliability, high stability light crane components of the system are all standard modules, you can ensure high-volume, high-quality production,

2.Which system is very reliable; system module is the mainstay of three sizes of rolled profiles, intensity good rigidity, light weight, to ensure stability of the system.

3.The system adaptable plant each station according to the needs, flexible design and installation of the crane system, from sentinel transported to a high accuracy multi-point,

4.Multi-beat automated conveyor line, can be arbitrary combination. The plant can be used for new designs can also be used to modify or extend the old system.

5.It is easy to install, cost-effective system installation is very convenient, and the standard profiles bolted between the modules can only be used to save the factory space and area,

6.greatly reducing the human resources, improve production efficiency, thereby reduce energy consumption, improve enterprise efficiency.

7.System can be operated manually or can achieve automatic and semi-automatic operation, efficient operation.


Compoments

The materials of  gantry crane Molding, no welds, high-precision cold-formed molding,  eliminating the traditional production grinding, cutting, welding, and many other complicated production process, reduce to the deformation of the single beam crane girder in the handling process,

to ensure that a single beam crane girder precision. Improve the work efficiency, while greatly enhanced the whole strength, and improve the quality of cranes appearance.

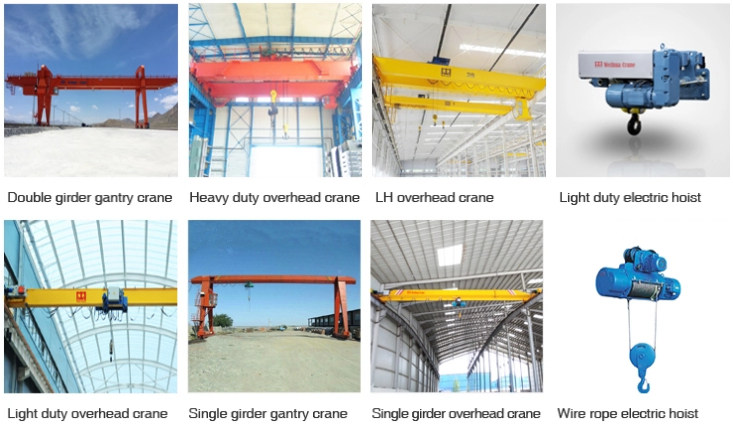

Main Products



Data


Lifting

Capacity (t)

Span

(m)

Lifting Height

(m)

Lifting Speed

(m/min)

Hoist Traveling

Speed(m/min)

Crane Traveling

Speed (m/min)

Recommanded

Track

1

7.5~22.5

6~12

0.8/5

2~20

3~30

P24

2

6~12

0.8/5

2~20

3~30

P24

3.2

6~12

0.8/5

2~20

3~30

P24

5

6~12

0.8/5

2~20

3~30

P24,P30

10

6~12

0.8/5

2~20

3~30

P30

12.5

6~12

0.66/4

2~20

3~30

P30

16

9~12

0.66/4

2~20

3~30

P43

20

9~12

0.66/4

2~20

3~30

P43

Work Duty

A3,A4

Power

380V, 50Hz or Other

Temperature of Working Environment

-20ºC~+40ºC


Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
