Low Headroom Electric Wire-rope Hoist From China Manufacturer

Payment Terms: TT or LC

Ref Price : 1000-50000 USD/SET

Supply Capability : 10000 TON

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Condition:
    New
  • Place of Origin:
    Henan, China (Mainland)
  • Brand Name:
    WEIHUA CRANE
  • Usage:
    Drywall Panel Hoist
  • Power Source:
    Electric, 3 Phase 380V 50hz
  • Sling Type:
    Wire Rope
  • Lift Speed:
    8m/min
  • Certification:
    CE ISO
  • Warranty:
    1 Year
  • After-sales Service:
    Field maintenance and repair service
  • Type:
    ND electric hoist
  • Lifting mechanism:
    Eliectric Hoist
  • Control method:
    customized
  • Color:
    customized
  • Main electrical parts:
    Siemens Brand
  • Lifting speed:
    Variable Speed (standard)
  • Safety devices:
    Equipped
  • Work duty:
    A3-A5
  • Product Name:
    Low headroom hoist

Product Description:


1. Product Name/Model:Electric Wire-rope Hoist.

2. Designed and developed with the FEM standard, advanced idea and beautiful exterior.

3. The drive units use China's advanced point-line meshing gear structure. It is easy and convenient to handle with the compact and reasonable whole structure.

4. It is safe and efficient to operate, and meet current requirements of low noise and environmental protection.

5. Using 13 proprietary technologies and utilize frequency control design to reduce the impact force to accomplish precise positioning.

6. Equipped with intelligent safe operation monitoring recorder like the “black box” on plane which can uninterruptedly record working status and prevent unprofessional operations.

7. Maintenance-free design of whole body and less wearing parts make it convenient to maintain.


Specification:


Model



Lifting Weight



Lifting Height



Lifting Speed



Running Speed



Working Level



Rope



Weight



t



m



m/min



m/min





kgs



ND 1.6T-12M



1.6



12



1.6/10



2~20



M5



1/2



370



ND 2.5T-12M



2.5



12



0.8/5.0



2~20



M5



1/4



385



ND 3.2T-12M



3.2



12



0.8/5.0



2~20



M5



1/4



405



ND 6.3T-12M



6.3



12



0.8/5.0



2~20



M5



1/4



500



ND 8T-12M



8



12



0.8/5.0



2~20



M5



1/4



640



ND 10T-12M



10



12



0.8/5.0



2~20



M5



1/4



640



NH 10T-12M



10



12



0.66/4.0



2~20



M5



1/4



730



ND 12.5T-12M



12.5



12



0.66/4.0



2~20



M5



1/4



740



Note: Lifting height can be customized i.e. 6m, 9m, 20m.

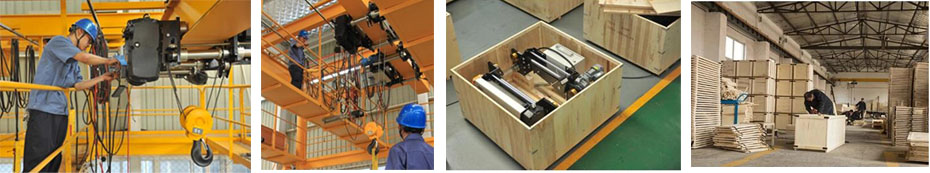

Testing and Shipping:


Exhibition:

Our after-sales service provide
1. 14 months warranty when products leave the factory, or 12 months warranty after installation

and commissioning in addition to the human damage factors.

2. 2 years spare-parts provided for better maintenance.

3.Professional technical staffs provide installation, commissioning and training services.

3.Delivery with English user manual, parts manual, product certification and other relevant certificates.

4.Technical advisory for any time and Engineers available to service machinery overseas


Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
