Manufacture Light Duty 6 Ton Gantry Crane For Sale

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 3000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Model NO.:
    Light Gantry Crane 6 tons
  • Product Name:
    Light Duty Gantry Crane 6 Tons
  • Color:
    Red, Orange or Design
  • Lifting Mechanism:
    Electric Hoist
  • Main Electric Parts:
    Siemens, Schneider
  • Power Source:
    3 Phase 380V 50Hz
  • Work Duty:
    A5
  • Usage:
    Matrtials Handling
  • Trademark:
    WEIHUA CRANE
  • Transport Package:
    Plywood Box/Plastic Woven Clothes
  • Origin:
    Henan Xinxiang Changyuan
  • Material:
    High quality carbon steel Q235B and Q345B
  • Painting:
    3 Layer anti-rust painting
  • Warranty:
    1 Year

6 ton light duty gantry crane product description:

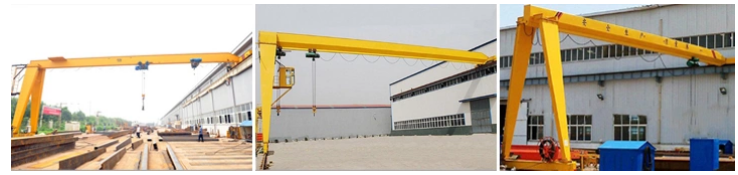

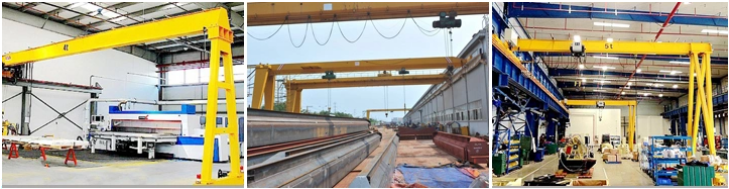

This kind of light gantry crane is a general purpose light crane used in workshop or outdoors. The leg height of this single girder semi-gantry crane can be different according to the engineering needs on the construction field. The 6 ton Gantry Crane has the features of simple structure, easy installation, light weight, good wind resistance. The Main girder is mostly bias rail box type structure.

Compared with the double girder gantry crane, the lifting capacity is smaller, generally ≤50t, and the span ≤35m. Single girder semi-gantry crane can be used with CD1, MD1 hoists. It can be remote control and floor control.

Safety Protection of 6 ton Semi Gantry Crane:

1. Overload limiter;

2. Polyurethane buffer, long service life and impact resistance;

3. Crane travelling limit switch;

4. Loss pressure protection, fault phase protection;

5. Emergency stop system;

6. Lifting height limiter;



Lifting



capacity (t)



Span

(m)



Lifting height

(m)



Work

duty



Main lifting

speed(m/min)



Deputy lifting

speed(m/min)



Trolley travelling

speed (m/min)



Crane travelling

speed(m/min)



Power

(KW)



Rail

type



5



18~26



10



A5



9.2



--



37.2



37.7



27.8



43Kg/m



30~35



12



36.8



10



18~22



10



8.5



--



37.2



37.7



38



26



10




30~35



11



47



20/5



18~26



10



7.1



9.2



36.6



40.1



67.3



30~35



12



44



78.3



32/5



18~26



10



6.3



9.2



29.8



38



85.5



30~35



12



40



93.5



50/10



18~26



10



5.9



8.5



31



40.1



141.5



QU80



30~35



12



44



157.5



75/20



18~26



12




3.9



7.2



38.4



3.7~37



146



30~35



12




100/20



18~26



12




3.1



7.2



33.9



3.23~32.3



162



QU100



160/50



18~26



15




3.5



5.9



22.5



2.8~28



242



200/50



18~35



15




3.5



5.9



29



2.8~28



299



320/80



18~35



15




3.6



6



16.7



2.8~28



476



QU120



400/30



18



18




0.15~1.5



6



10



18



275



500/80



28.5



33




0.15~1.5



0.6~6



1.36~13.6



1.6~16



350



600/80



36



22




0.13~1.3



0.4~4



1.5~15



2.5~25



405



800/10



36



14




0.1~1



7



0.5~5



1~10



330

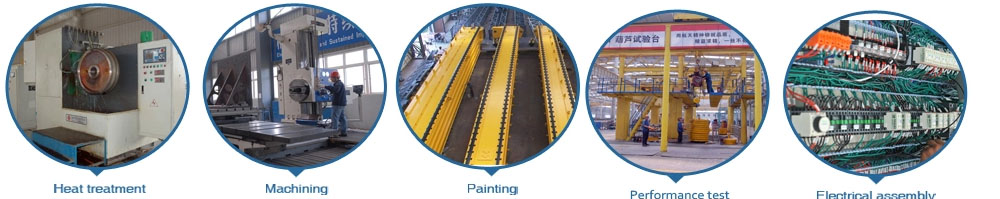

Product Process


Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
