8 12 14 16 Cars Smart Certificated High Quality Vertical Rotary Parking System

Payment Terms: TT or LC

Ref Price : 1-12 USD/SET

Supply Capability : 150 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Type:
    Parking Lift
  • Place of Origin:
    China (Mainland)
  • Brand Name:
    WEIHUA
  • Model Number:
    PCX
  • Warranty:
    1 Year
  • Loading Capacity:
    1.8t
  • Product name:
    Auto Vertical Rotary System / Carousel Parking From Manufacturer
  • Car Weight:
    1.8t
  • Equipment Total Height:
    9.7-17.3m
  • Car Quantity:
    16
  • Equipment Total Weight:
    15.3-33.56t
  • Layer:
    8
  • Motor Power:
    7.5-15KW
  • Time to get car out:
    87-148 seconds
  • Cycle Speed:
    4.4-5.5mmin

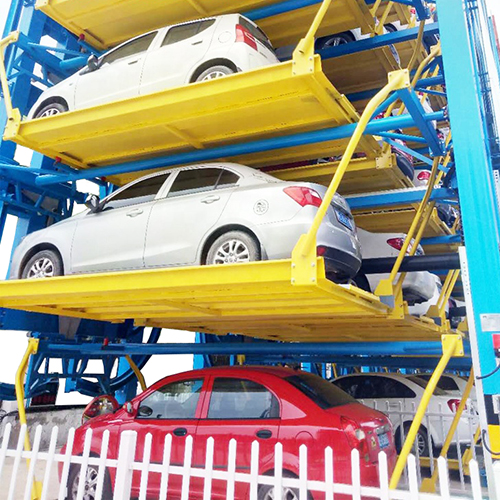

Smart Vertical Rotary Parking System Description:

1.This automatic smart car parking system mainly consists of main steel structure, plate structure, transmission system, control system, and safety protection device.

2.The main structure is internally provided with a fixed guide rail, the lifting chain roller runs in the guide rail.

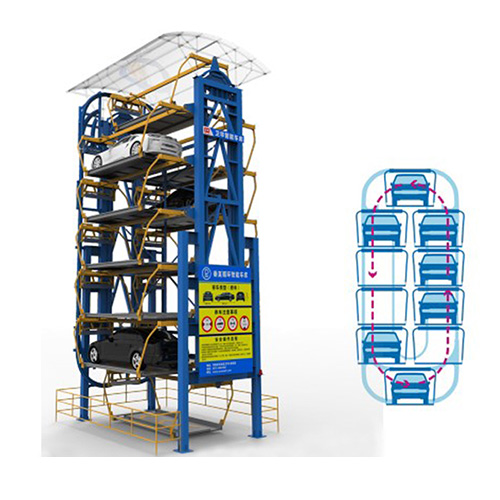

3.The carriage plate is suspended on the extended plate of the lifting chain. During operation, the car is parked inside the carriage board, and the chain drive system drives the carriage board for circulation running in the vertical direction. When the carriage board runs to the lowest end, the car can be accessed.



Advantages of Smart Vertical Rotary Parking System:

Main Products


Vertical Rotary Parking Equipment Technical Datas

PCX8D-16DH(SUV)Cars Vertical Rotary Parking Equipment Technical Parameters

Item Name

Technical Parameter and Instruction

Model

PCX-8DH

PCX-10DH

PCX-12DH

PCX-14DH

PCS-16DH

Car Dimension

L*W*H=5300mm*1850mm*2050mm

Car Weight

2.5t

2.5t

2.5t

2.5t

2.5t

Occupy Space

6.5m*5.5m

6.5m*5.5m

6.5m*5.5m

6.5m*5.5m

6.5m*5.5m

Equipment Total Height

12.5m

15m

17.5m

20m

22.5m

Equipment Total Weight

16.8t

24.6t

33.9t

38.8t

38.8t

Car Quantity

8

10

12

14

16

Motor Power

9.2KW

9.2KW

15KW

15KW

18.5KW

Cycle Speed

4.4m/min

4.4m/min

5.5m/min

5.5m/min

6.5m/min

Max Time for Take Out Car

136s

138s

146s

165s

165s


Packing&Shipping

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
